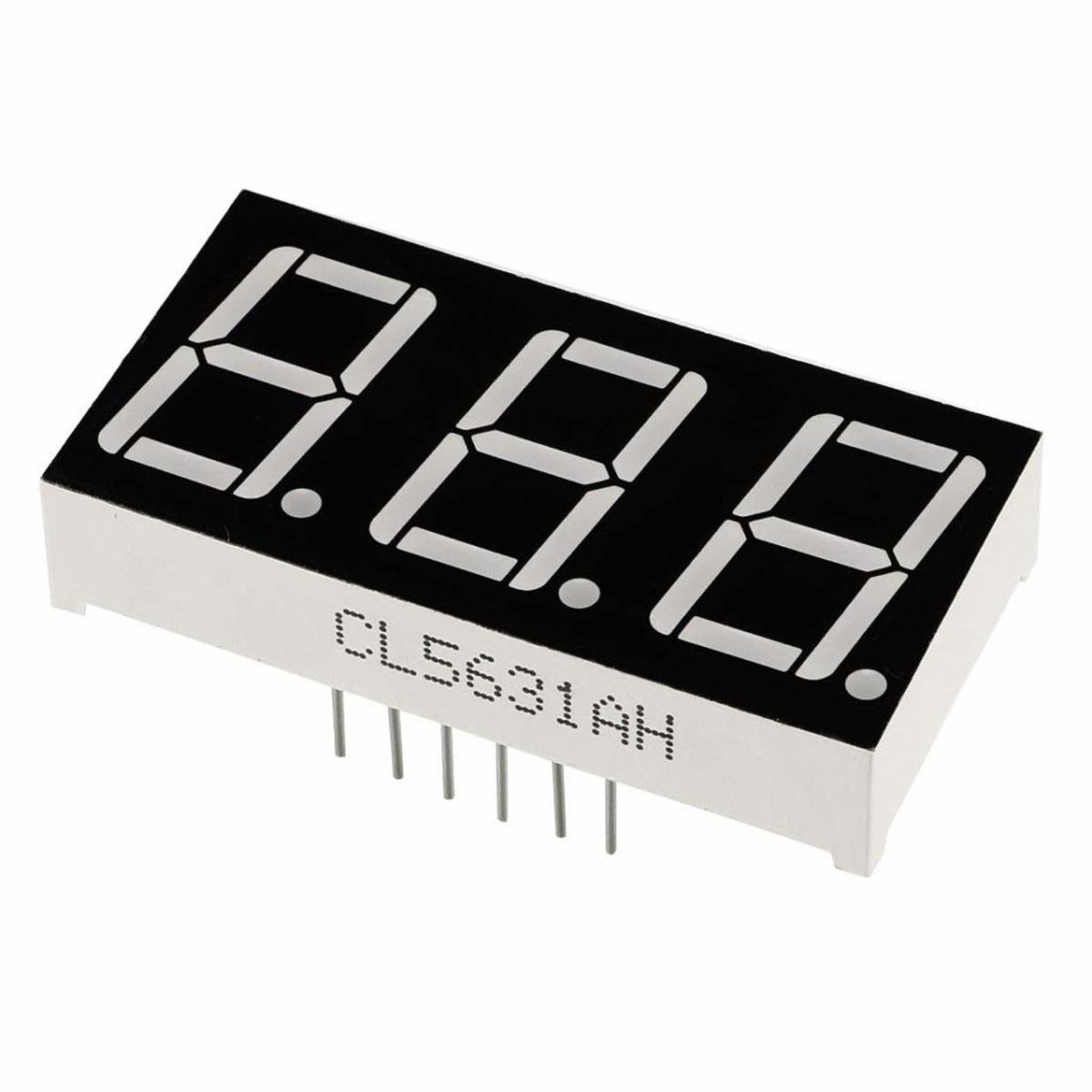

Description: 0.56″ 3 Digits 7 Segment Display

3 Digit Seven-Segment LED Displays are an ideal technology for markets such as industrial controls, medical devices, set-top box communications equipment, white goods and aerospace. LED Displays are available in a wide range of sizes styles and options to suit any design requirements.

Specifications:

1.Digit height: 0.56 inch
2.Dimensions: 37.60 x 19.00 x 8.00 mm
3.Digit quantity: three pieces
4.Available Emitting color: high bright red/yellow green/yellow/amber/high bright blue/high bright white/pure green
5.Surface color: black/gray (white epoxy)
6.Epoxy colors: red, milky, blue, green and more
7.Polarity: common anode/common cathode
8.Operating temperature range: -20+60 degree Celsius

Features:

1.High luminous intensity output
2.Low voltage and current operating
3.Ultra-low power consumption
4.Solid-state LED chip based
5.Long life-span
6.Easy mounting on printed circuit board and sockets
7.IC compatible
8.Certificates: RoHS and SGS

Applications:

1.Audio equipment or instrument panels
2.General use for digital indicators
3.Multimedia product
4.Bank exchange rate display
5.LED clock display
6.Display for gas station and other various display areas of equipment/machine

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Datasheet:

LDT-A514RI

Package Include:

1x 0.56″ 3 digits 7 segment display
