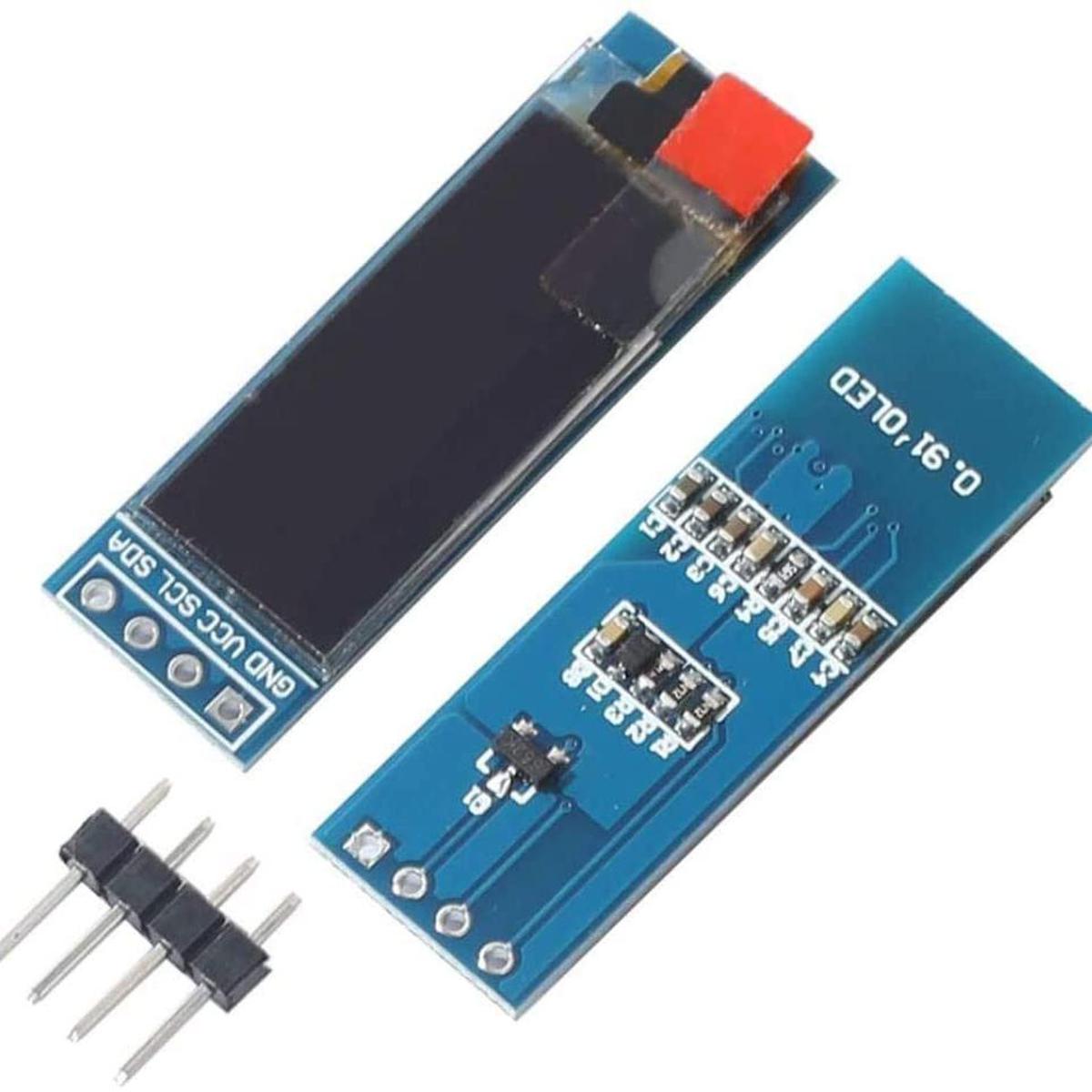

Description: OLED LCD Display 0.91″ Inch DC 3-5V 4 Pin 12832 128×32 Pixel LCD Display
0.91 INCH OLED LCD Display 0.91″ Inch DC 3-5V 4 Pin Connections Leads For Cables 12832 128×32 Pixel LCD Display Module IIC I2C Interface Communicate Module For Arduino

This is a general OLED display Module, 0.91inch diagonal, 128×32 pixels, with an embedded controller, communicating via an I2C interface. OLEDs are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED.

The most attractive thing about using OLED displays is that they do not need a backlight like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy-saving displays ever!!!

This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through the I2C(also called IIC) serial interface.

The 0.91inch OLED display Module produces white text on black background with very good contrast when supplied with a DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle.

Specifications:
Driver IC: SSD1306
Size: 0.91 inch OLED
Resolution: 128 x 32
Size: 38 * 12 mm
Interface Type: IIC interface
Display Color: Any

Features :
0.91inch small form factor
128×32 high resolution
I2C interface requires only two signal pins
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
No need for the backlight
The display is self-illuminating
Power requirement is low
They are offering the large viewing angle
Better performance characteristics than traditional LCD and LED displays.

Pin Description:
GND: ground
VCC: power + (DC 3.3 ~ 5v)
SCL watch: line
SDA: data line

• Driver IC: SSD1306

• Size: 0.91 inch OLED

• Resolution: 128 x 32

• Size: 38 * 12 mm

• Interface Type: IIC interface

• Display Color: Any
