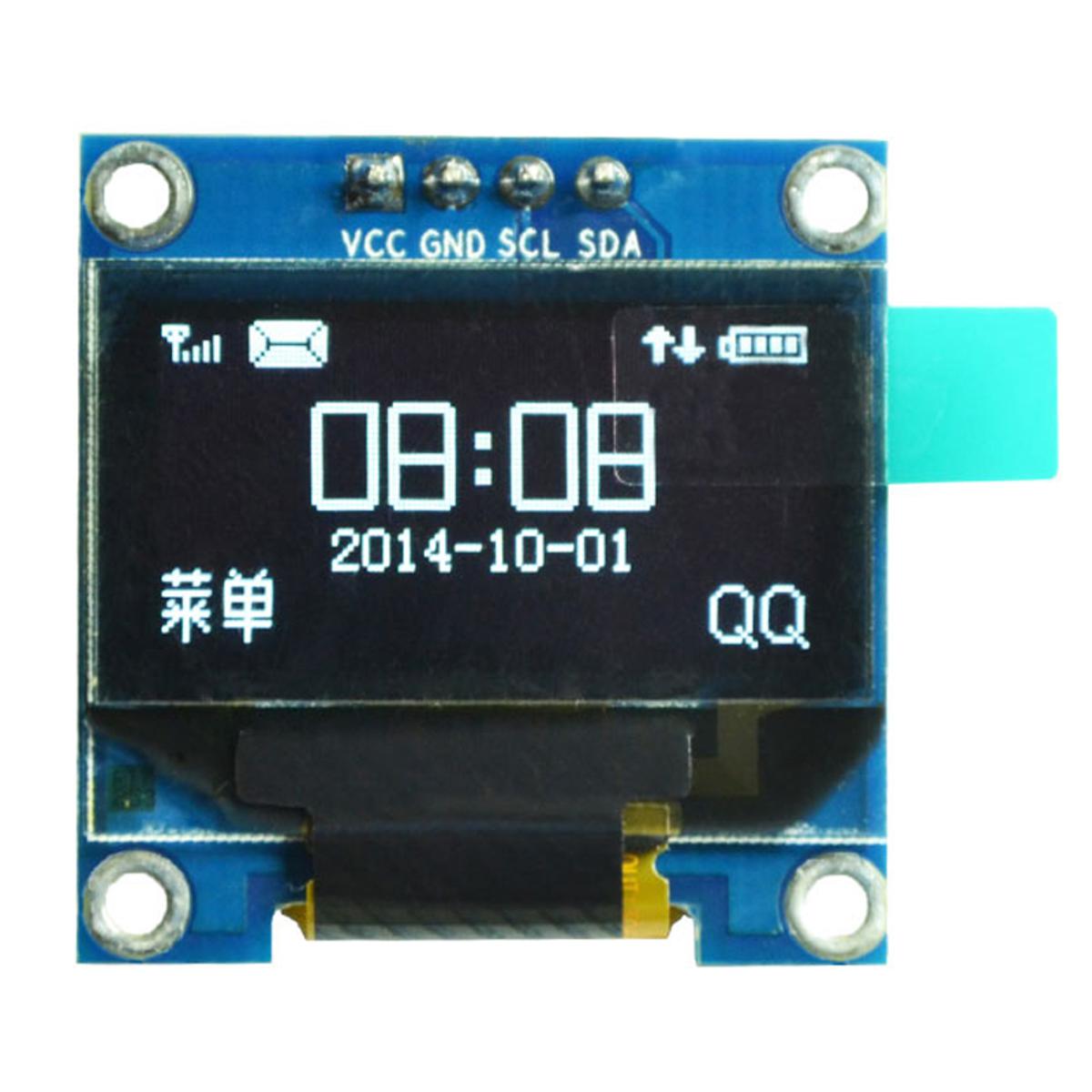

Description: 0.96 Inch 4P White SPI Oled Display

ER-OLEDM0.96-1W is the graphic OLED display module made of 128x64 white OLED pixels with breakout board,diagonal is only 0.96 inch.The controller ic SSD1306, communicates via I2C/3-wire/4-wire serial interface.Thanks to breakout,the total pin number is only 7,typical power supply is 3.3V. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.The fpc of OLED and pin header is already soldered on the breakout board,so no need any soldering job.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device. Of course, we wouldn't just leave you with a datasheet and a "good luck!" - we've written a full open source graphics library at the bottom of this page that can demonstrate colors,bitmap,scale,rotation,menu,graphic and text and arduino interfacing document to this oled display.For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code they're all at the bottom of this page

Interface:

GND: GroundVCC: Power (2.8V-5.5V)D0: ClockD1: DataRES: ResetDC: Data/CommandCS: Chip Selection

Feature:

Needn't backlight, the display unit can self-luminousHigh resolution: 128 * 64Viewing angle: > 160 °Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.Ultra-low power consumption: full screen lit 0.08WVoltage: 3V ~ 5V DCWorking Temperature: -40℃ ~ 70 ℃Module Size: 27.3 x 27.8 x 3.7mmIIC/SPI Interface, need 4 IO only.Driver IC: SSD1306

Documents:

ER-OLED0.96-1_Series_Datasheet

SSD1306

Package Included:

1 x 0.96 Inch 4P White SPI Oled Display

• 1, high resolution: 128X64 (and 12864LCD the same resolution, but the OLED screen more pixels per unit area)
• 2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)
• 3, ultra-low power consumption: normal display 0.06W (far below the TFT display)
• 4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
• 5, industrial grade: Operating temperature range -30 degree ~ 70 degree
• 6, the ultra-small size: (length) 27.8MM * (W) 27.3MM * (thickness) 4.3MM
• 7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC
• 8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work
• 9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)
• 10, OLED screen, internal drive chip: SSD1306
• 11. Color: Any
