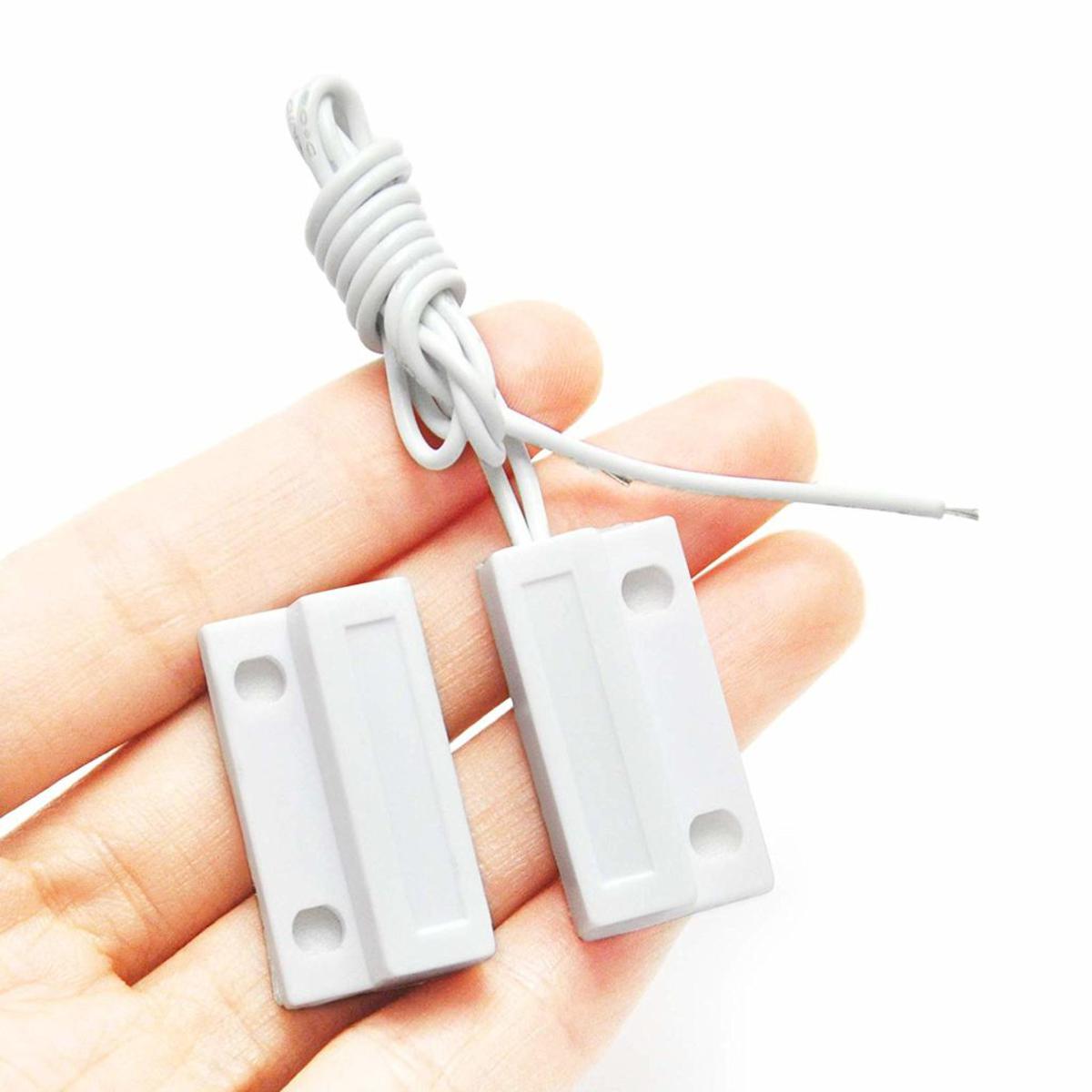

Picture of 1-Pair MC38 MC-38 Wired Magnetic Contact Reed Switch For Door Window Security Alarm System NC Normally Open Magnetic Switch Surface Mount Door Sensor Home Alarm System Sensor For Arduino
Picture of 1-Pair MC38 MC-38 Wired Magnetic Contact Reed Switch For Door Window Security Alarm System NC Normally Open Magnetic Switch Surface Mount Door Sensor Home Alarm System Sensor For Arduino

1-Pair MC38 MC-38 Wired Magnetic Contact Reed Switch For Door Window Security Alarm System NC Normally Open Magnetic Switch Surface Mount Door Sensor Home Alarm System Sensor For Arduino

Category: Building Materials
SKU: UDBD03834
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 88
Tk 104
Tk 104
15% OFF
0 review(s)
  • Material : Plastic
  • Color: White
  • Actuation distance: 15mm – 25mm
  • Voltage : Normal systemup to 24V.Not recommendedto connect higher voltage or AC supply.
  • Box size (each side): 29mm x 14mm x 9mm
  • Cable Length: 305mm ± 12mm / 12″ ± 0.5″
  • Weight: 16

Call For Order : 09613-800800

Description: MC38 Wired Magnetic Contact Reed Switch for Door Window Security Alarm System Normally Open

There are two types of reed switches: “normally open” reed switches and “normally open” reed switches. The metal reeds on a normally Close switch stay Close when there is no magnet near the switch. In the presence of a magnetic field, the contacts of a normally-Close reed switch will Open. A normally-Open reed switch is Opened when it is not near a magnet; as a magnet is brought Open to it, a normally-Close switch will open.

  • Switch Type: NC(normal Open type), circuit is connected when magnet is near the switch.
  • The reed switch is an electrical switch operated by an applied magnetic field.
  • Designed for use with alarm systems. Great for use in family and factory window, door. etc.
  • Ideal for residential or commercial use. Designed to do embedded in door or window frame in door or window frames.
  • With double-sides tape design that for easily install.

Features:

  • Appearence ofsmall and easy to install
  • Long period of use
  • Control the switch of the circuit via the built-in magnet
  • Can be used in places like apartment, hotel, office, etc
  • Ideal for residential or commercial use
  • Designed to do embedded in the door or window frame
  • With double-sides tape designfor easily install

Note:

Please note that this item not fit to iron or aluminum alloy door. It will decline magnetic of the sensor.

Specifications:

  • Material : Plastic
  • Color: White
  • Actuation distance: 15mm – 25mm
  • Voltage : Normal systemup to 24V.Not recommendedto connect higher voltage or AC supply.
  • Box size (each side): 29mm x 14mm x 9mm / 1.1″ x 0.6″ x 0.4″
  • Cable Length: 305mm ± 12mm / 12″ ± 0.5″
  • Weight: 16g

Packing Include:

  • 1 xMC-38 Magnetic Contact Switch Sensor (pair)





  • Material : Plastic
  • Color: White
  • Actuation distance: 15mm – 25mm
  • Voltage : Normal systemup to 24V.Not recommendedto connect higher voltage or AC supply.
  • Box size (each side): 29mm x 14mm x 9mm
  • Cable Length: 305mm ± 12mm / 12″ ± 0.5″
  • Weight: 16
