Description: Electronic Nebulizer USB Mini Humidifier DIY Kit Mist Maker 5V Fogger

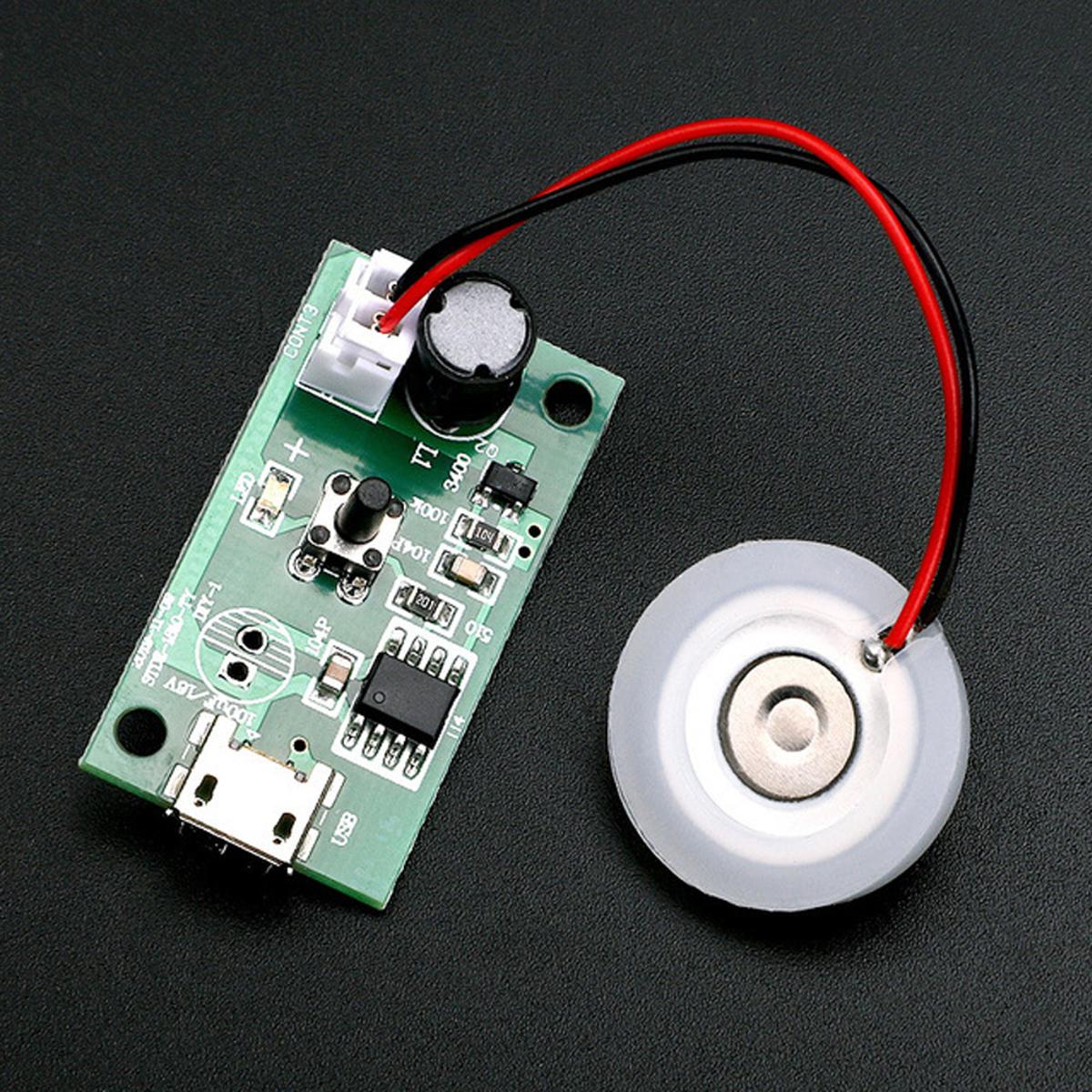

Electronic Nebulizer USB Mini Humidifier DIY Kit Mist Maker And Driver Circuit Board 5V Fogger Atomization Film Atomizer Mini Oscillating Sheet

5V USB ultrasonic mist generator driver board and spray plate.Low driving voltage, low power, low impedance, stable waveform, high conversion efficiency.Round ring spray plate, Center spray, 5um ultra-fine spray aperture, 740 ultra-dense spray holes.The surface of the atomizing sheet adopts oxidation-resistant silver coating to protect the plating process, long service life.Adopts environmentally friendly electronic components.

Specifications:

Product name: air humidifier booster boardColor: as shownVoltage: DV 5VCurrent: 300mAPower: 2WFrequency: 110KHzSteel sheet diameter: about 16mmSilicone ring outer diameter: about 20mmWire length: about 8cmSize: approx. 46*20*17mm/1.81*0.79*0.67"

• Product name: air humidifier booster board
• Color: as shown
• Voltage: DV 5V
• Current: 300mA
• Power: 2W
• Frequency: 110KHz
• Steel sheet diameter: about 16mm
• Silicone ring outer diameter: about 20mm
• Wire length: about 8cm
• Size: approx. 46*20*17mm/1.81*0.79*0.67"
