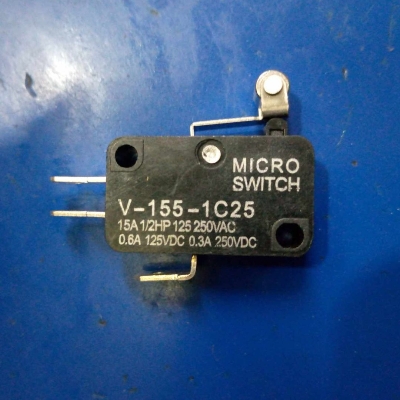

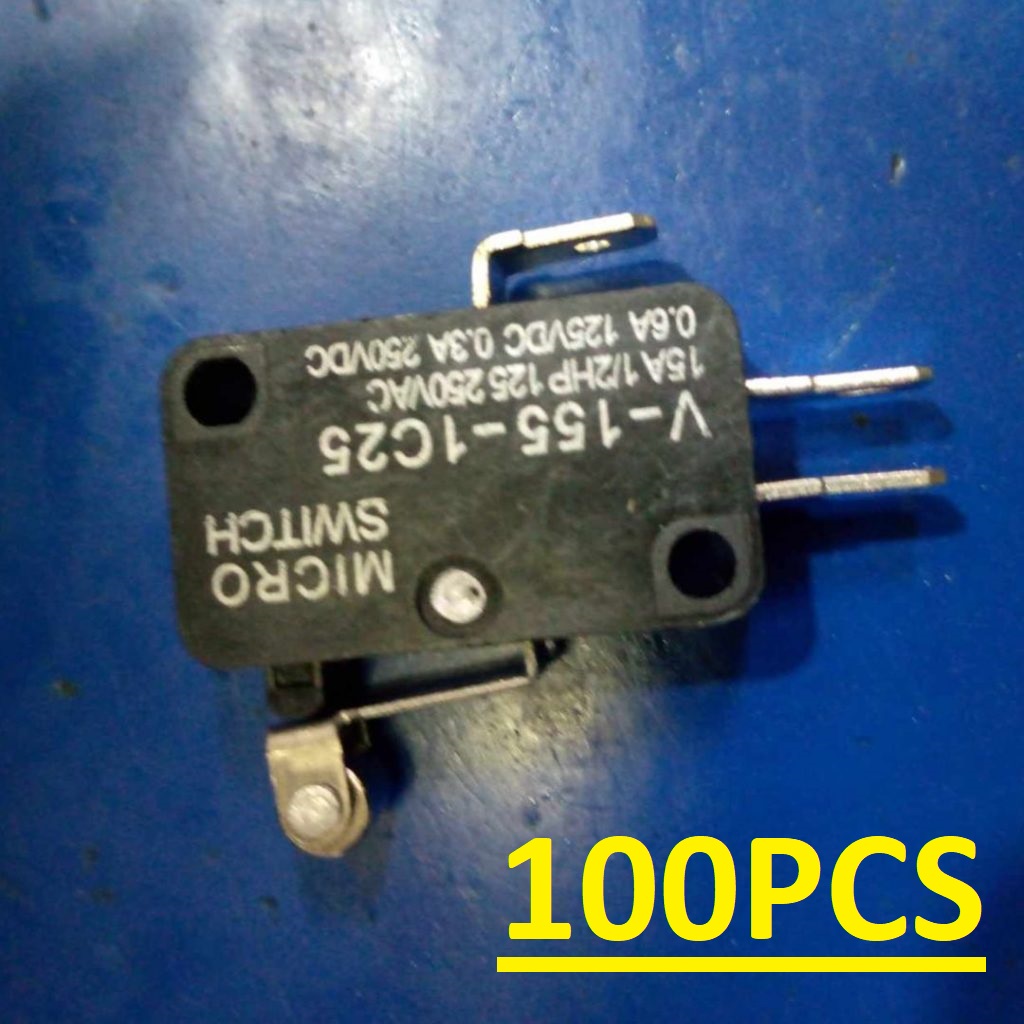

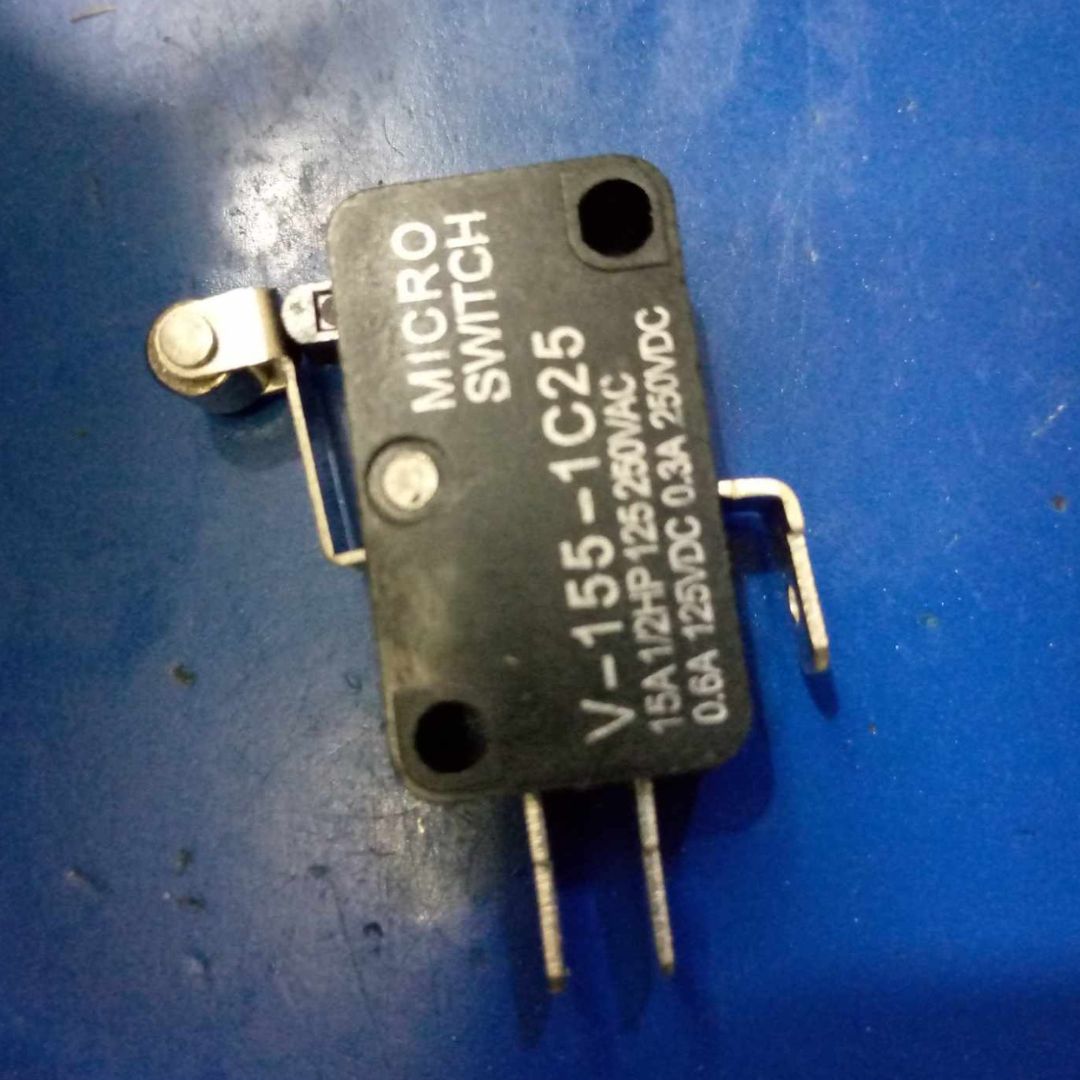

Description: 15A Limit Switch 3 Pin 15A 250VAC SPDT 3 Pin 10mm Long Straight Hinge
Lever Arm Switch Micro Limit Switch

15A Limit Switch 3 Pin 15A 250VAC SPDT 3 Pin 10mm Long Straight Hinge Lever Arm Switch Micro Limit Switch Momentary Push Switch For 3D Printers CNC Machine DIY

It is a Single Pole Double Throw (SPDT) microswitch. The microswitch is a switch that needs a very less amount of force (push/pressure) to operate. They are very reliable, fast and efficient to use. A microswitch is also known as a miniature snap-action switch.

Features:

• Condition: Brand New
• Actuator Type: Long Straight Hinge Lever
• Terminals: 3
• Contact Type: Normally Open
• Button plastic: PC or Nylon
• Spring Materials: Tungsten steel
• Rating: 15A 250VAC, 0.3A 125VAC
• Operating temperature: -25 to + 80C
• Contact configuration: SPDT
• Switch Body Size: 20x 6.35x 11mm(Approx.)
• Fixing Holes Dia: 2mm
• Button Height: 1.5mm
• Long Straight Hinge: 26.5mm
• Dielectric intensity: ≥1000V AC/Min
• Contact Resistance: OF≤0.75N:≤30mΩ,OFF≤0.75N:≤50 mΩ
• Life: Mechanical≥1,000,000cycles;
• Electrical≥10,000cycles
• Insulation Resistance : ≥100MΩ
• Certificate: CE ,CQC

Features:

• Good micro switch
• Micro switch by RoHS compliant!
• The MOQ of all kinds of micro switch is flexible!
• High quality, competitive price, great service!
• The best micro switch at the best price!
• Designed for water and dust tight(IP67)
• Small compact size -Global safety approvals
• Long life and high reliability -Variety of Terminals and levers
• Widely used in Auto Control, Appliance and Other Industrial Control
• The die structures are special design, all action positions are high accuracy.
• Fast action, long life, high reliability and stability.
• Low to high operating force are available for various types.
• The die structures are special design, all action positions are high accuracy.
• The switch button push press sounds silvery, feel perfect and good rhythm.
• Small contact gap, snap action, high sensitivity and small operating travel.
• A Variety of levers and contact terminals are available for choosing.

• Condition:  Brand New
• Actuator Type: Long Straight Hinge Lever
• Terminals: 3
• Contact Type: Normally Open
• Button plastic: PC or Nylon
• Spring Materials: Tungsten steel
• Rating: 15A 250VAC, 0.3A 125VAC
• Operating temperature: -25 to + 80C
• Contact configuration: SPDT
• Switch Body Size: 20x 6.35x 11mm(Approx.)
• Fixing Holes Dia: 2mm
• Button Height: 1.5mm
• Long Straight Hinge: 26.5mm
• Dielectric intensity: ≥1000V AC/Min
• Contact Resistance: OF≤0.75N:≤30mΩ,OFF≤0.75N:≤50 mΩ
• Life: Mechanical≥1,000,000cycles;
• Electrical≥10,000cycles
• Insulation Resistance : ≥100MΩ
• Certificate: CE ,CQC
