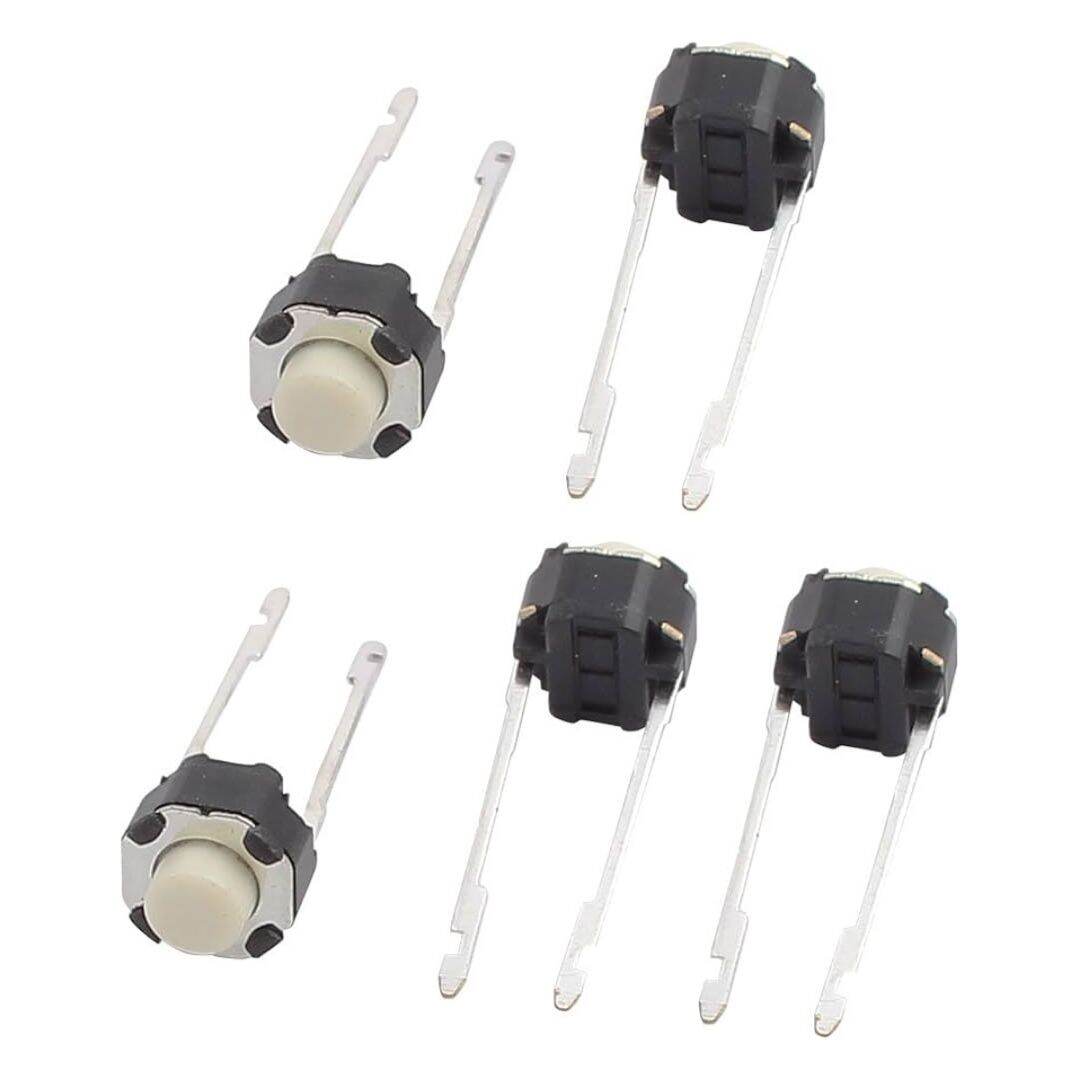

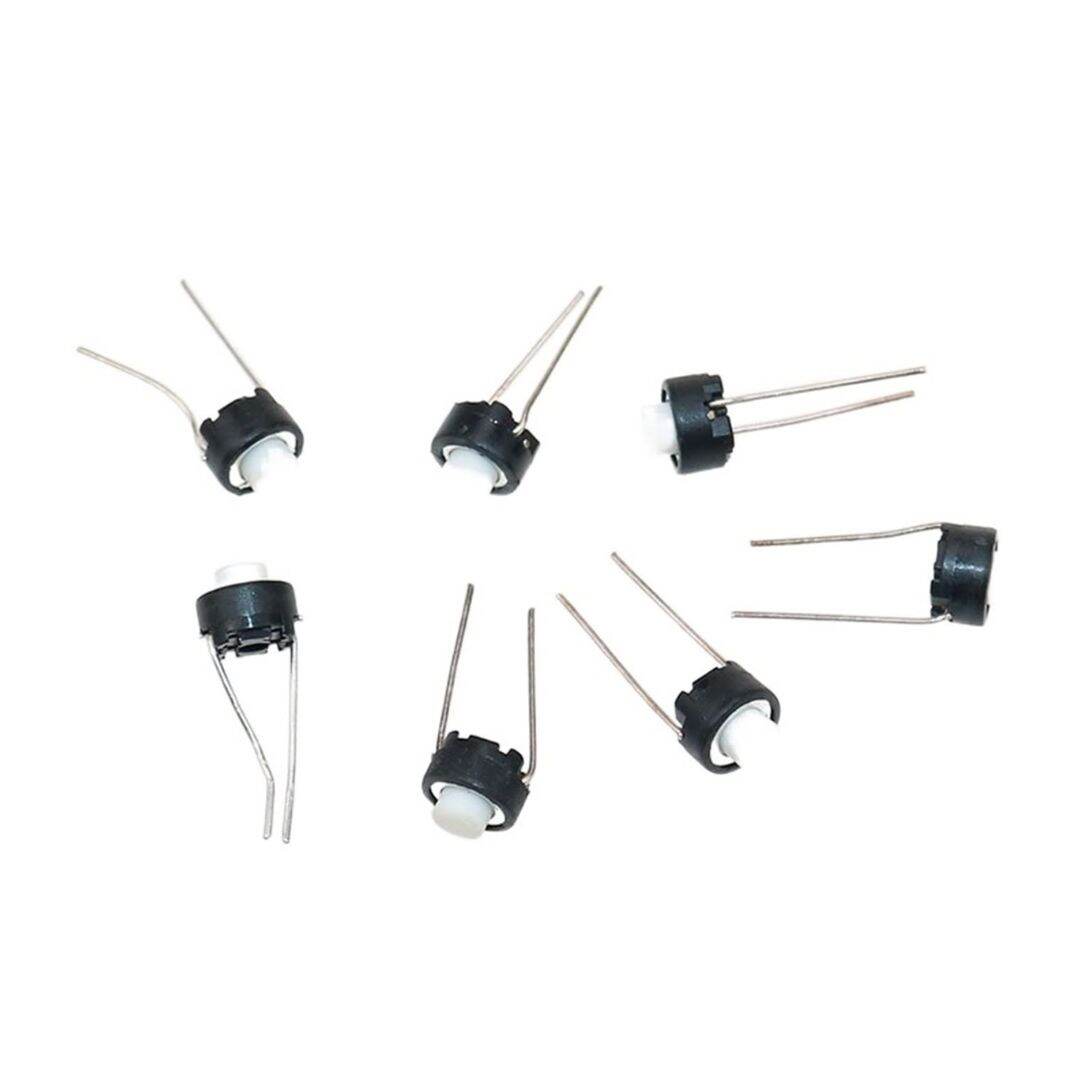

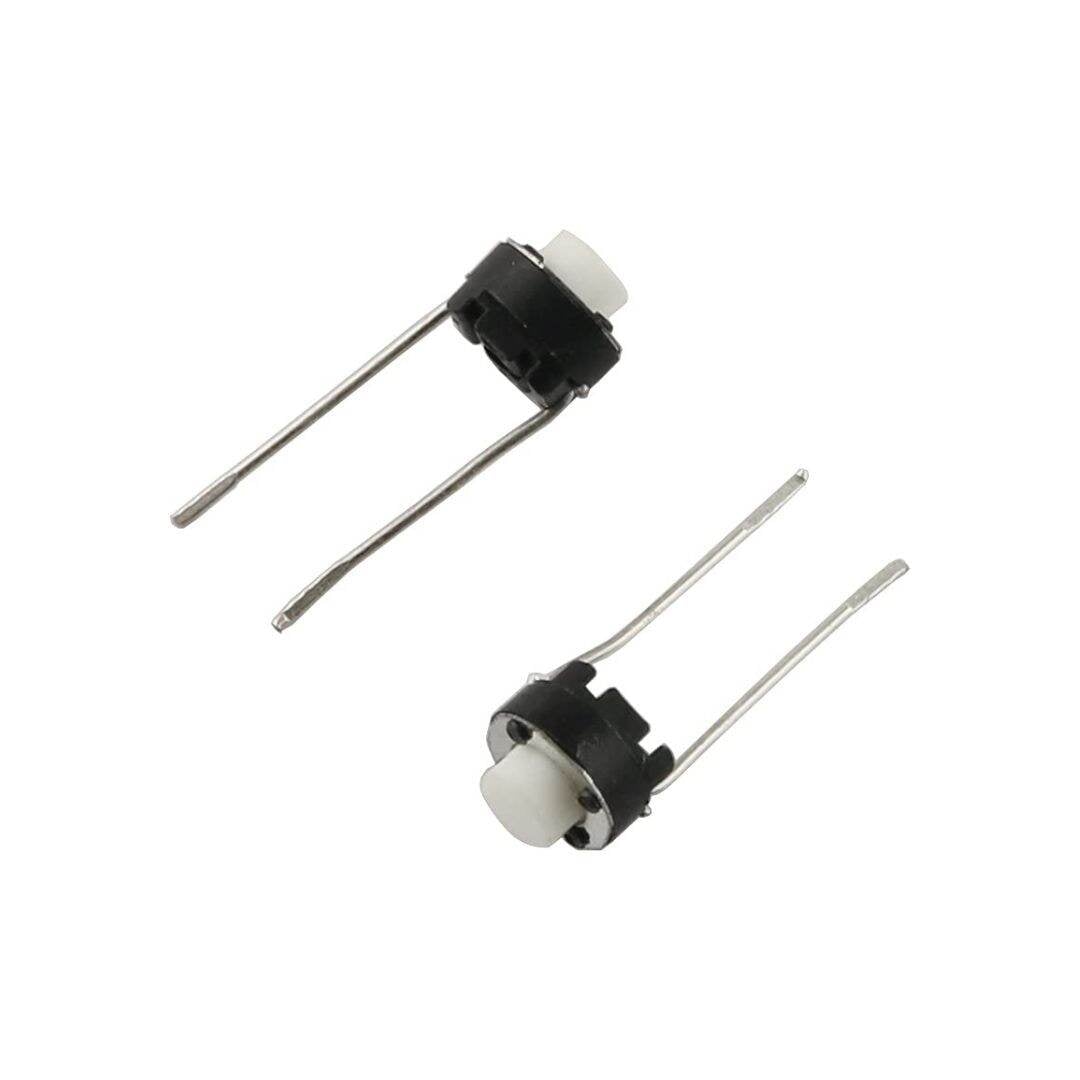

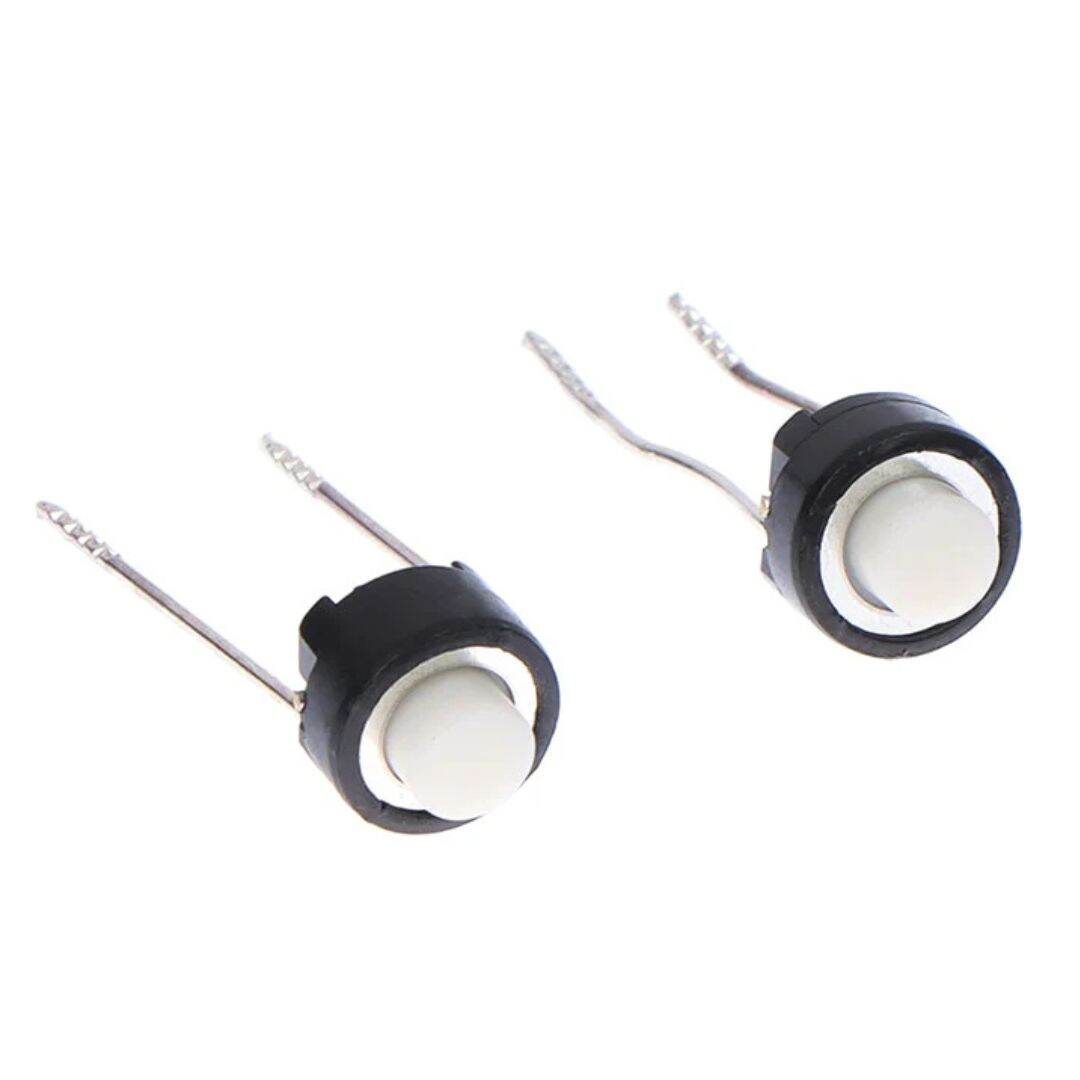

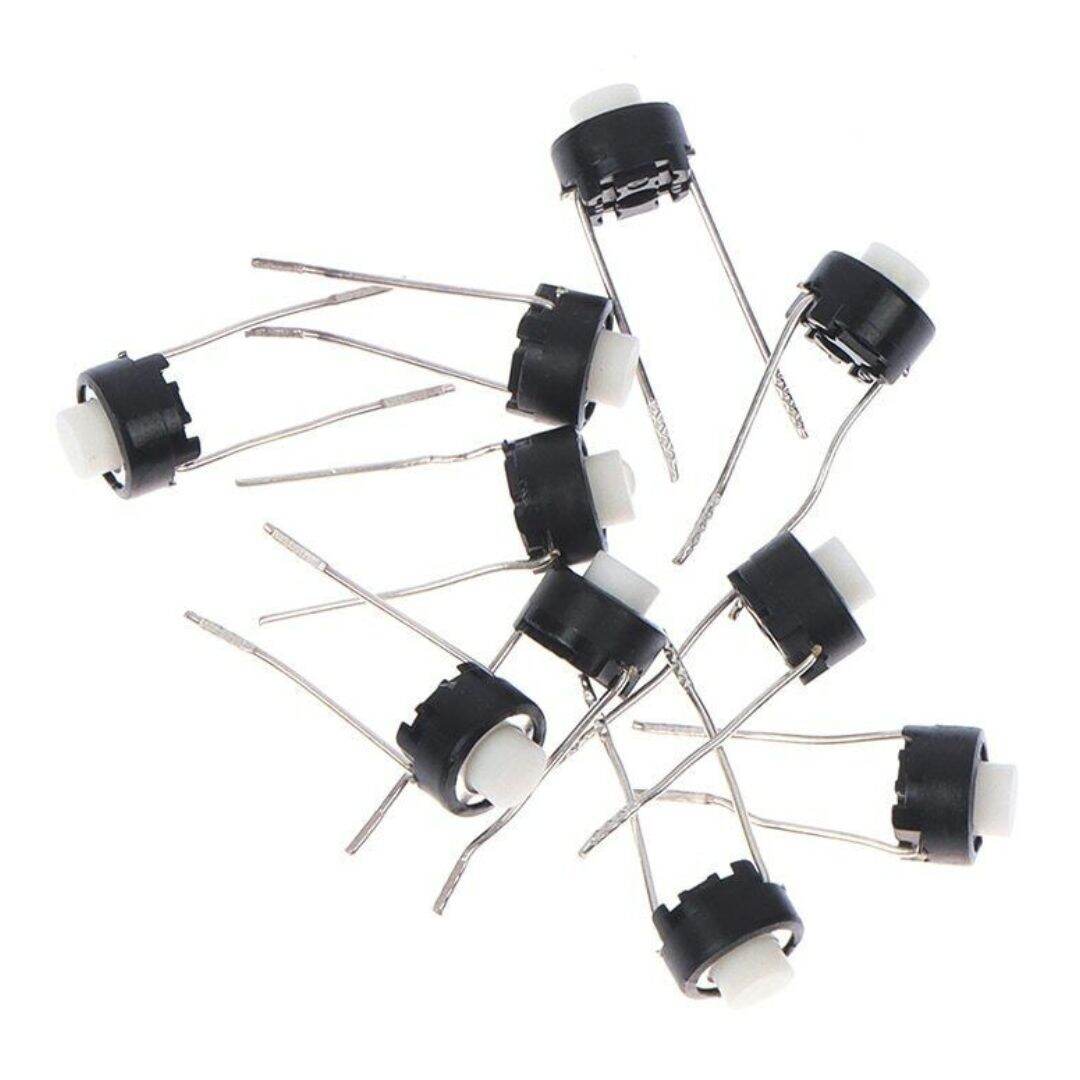

10Pcs - 2 Pin Tactile Switch Round

Descriptions: Round Momentary Push Button Switch 6x6x4.3mm 2P 2Pin Momentary Tactile Tact Push Button Micro Switch Self Reset

Round Momentary Push Button Switch 6x6x4.3mm 2P 2Pin On Off Momentary Tactile Tact Push Button Micro Switch Self Reset PCB Vertical Round Long Terminal Switch

One of the most elementary and easy-to-overlook circuit component is the switch. Switches don’t require any fancy equations to evaluate. All they do is select between an open circuit and a short circuit. Simple.

A switch is a component which controls the open-ness or closed-ness of an electric circuit. They allow control over current flow in a circuit (without having to actually get in there and manually cut or splice the wires). Switches are critical components in any circuit which requires user interaction or control.

Feature:

• High-precision mechanism design, sensitive operation and long service life.
• Suitable for FP-TV HD audio/DVD player, personal audio, health care products, all white goods.

Specifications:

• Breadboard friendly
• Mounting Style: Through Hole
• Mounting Direction: Vertical
• Stem Height: 5 mm
• Actuator: Round
• Operating Force: 2.6 N
• Current Rating: 50 mA
• Voltage Rating DC: 12 VDC
• Ground Terminal: No
• Contact Form: PST
• Termination Style: older Pin
• Series: SKRG
• Height: 3.6 mm
• Length: 6.2 mm
• Tradename: TACT Switch
• Travel: 0.25 mm
• Width: 6.2 mm
