Description: MPSA42 NPN HV Output Transistor

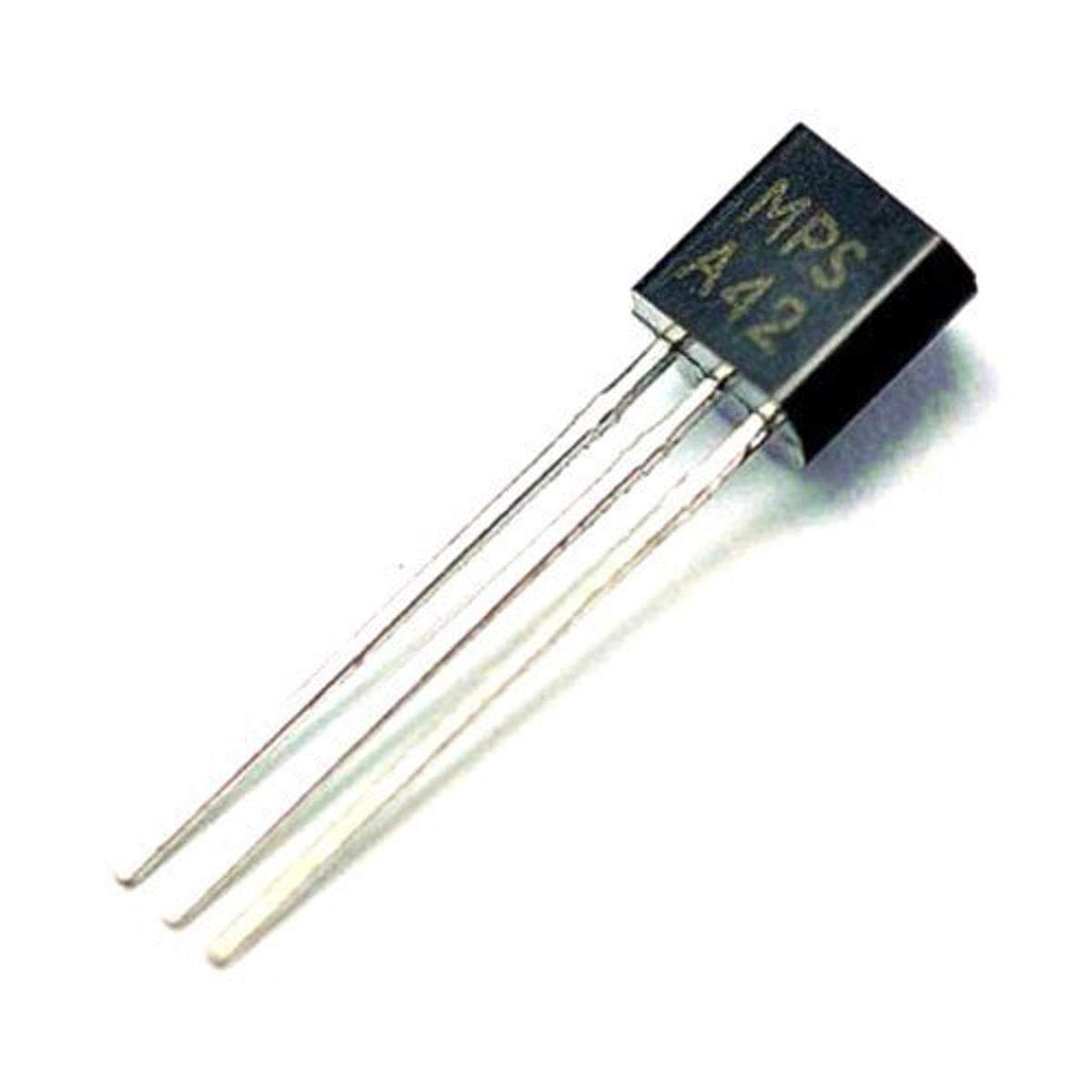

A42 Transistor MPSA42 MPS-A42 300V 0.5A TO-92 Through Hole 3Pin Leads Triode Transistor BJT NPN Output Transistor

MPSA42 is an NPN BJT transistor designed for high voltage applications such as high voltage switching and high voltage amplifications. The collector-emitter voltage of the transistor is 300V which makes it ideal to use in applications in which a general purpose BJT transistor can’t be used because most of the normal general purpose BJT transistor have the max collector-emitter voltage of 100V. Moreover the 300V collector-emitter voltage feature can also make it reliable to use in circuits where there is a risk of sudden voltage fluctuations.

Technical Specifications:

Package Type:

TO-92

Transistor Type:

NPN

Max Collector Current(I

C

):

500mA

Max Collector-Emitter Voltage (V

CE

):

300V

Max Collector-Base Voltage (V

CB

):

300V

Max Emitter-Base Voltage (VEBO):

6V

Max Collector Dissipation (Pc):

625 mW

Max Transition Frequency (fT):

50 MHz

Minimum & Maximum DC Current Gain (h

FE

):

40

Max Storage & Operating temperature Should Be:

-55 to +150 Centigrade

Features

:

Bi-Polar, High Voltage NPN Transistor

DC Current Gain (hFE) is 40

Continuous Collector current (IC) is 500mA

Base- Emitter Voltage (VBE) is 6V

Collector-Emitter Voltage (VCE) is 300V

Collector-Base Voltage (VCB) is 300V

Available in To-92 Package

PNP Complementary:

PNP Complementary of MPSA42 is MPSA92.

Replacement and Equivalent:

2N6516, 2N6517, BFR88, BFR89, MPSD01, FTSOA42, PE7059, ZTX457

Where We Can Use it & How to Use:

MPSA42 can be used in high voltage applications such as Telephonic applications, video applications, communications etc. Other than that this transistor can also be used for high voltage switching purposes unlike any general purpose transistor. If used as a switch it can drive load of upto 500mA which makes it capable to control relays, LEDs, high power and medium power transistors etc. Moreover it can also be used as an amplifier in variety of audio related application such as in audio amplifiers and audio amplifier stages.

Applications:

Inverter Applications

UPS Circuits

High Voltage Power Supplies

Battery Charger Circuits

Audio Amplifiers

Audio Amplifier Stages

Motor Controllers

DC High Voltage Switching

How to Safely Long Run in a Circuit:

To make this transistor perform better and long term in your circuits it is suggested to not drive load of more than 500mA and load voltage cannot be increased more than 300V. Always use a suitable base resistor and do not store or operate in temperature above +150 centigrade and below -55 centigrade.

• Collector-Emitter Volt (Vceo): 300V
• Collector-Base Volt (Vcbo): 300V
• Collector Current (Ic): 0.5A
• hfe: 40 @ 10mA
• Power Dissipation (Ptot): 625mW
• Current-Gain-Bandwidth (ftotal): 50MHz
• Type: NPN
