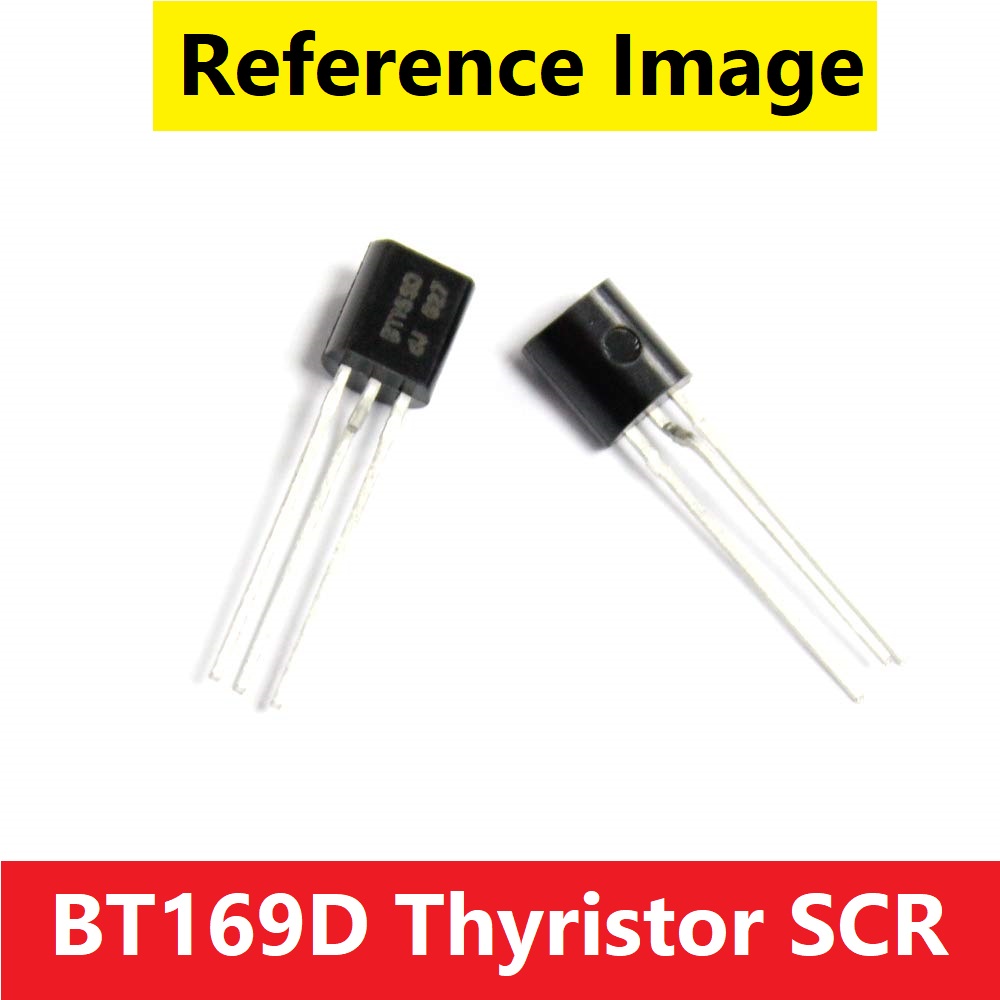

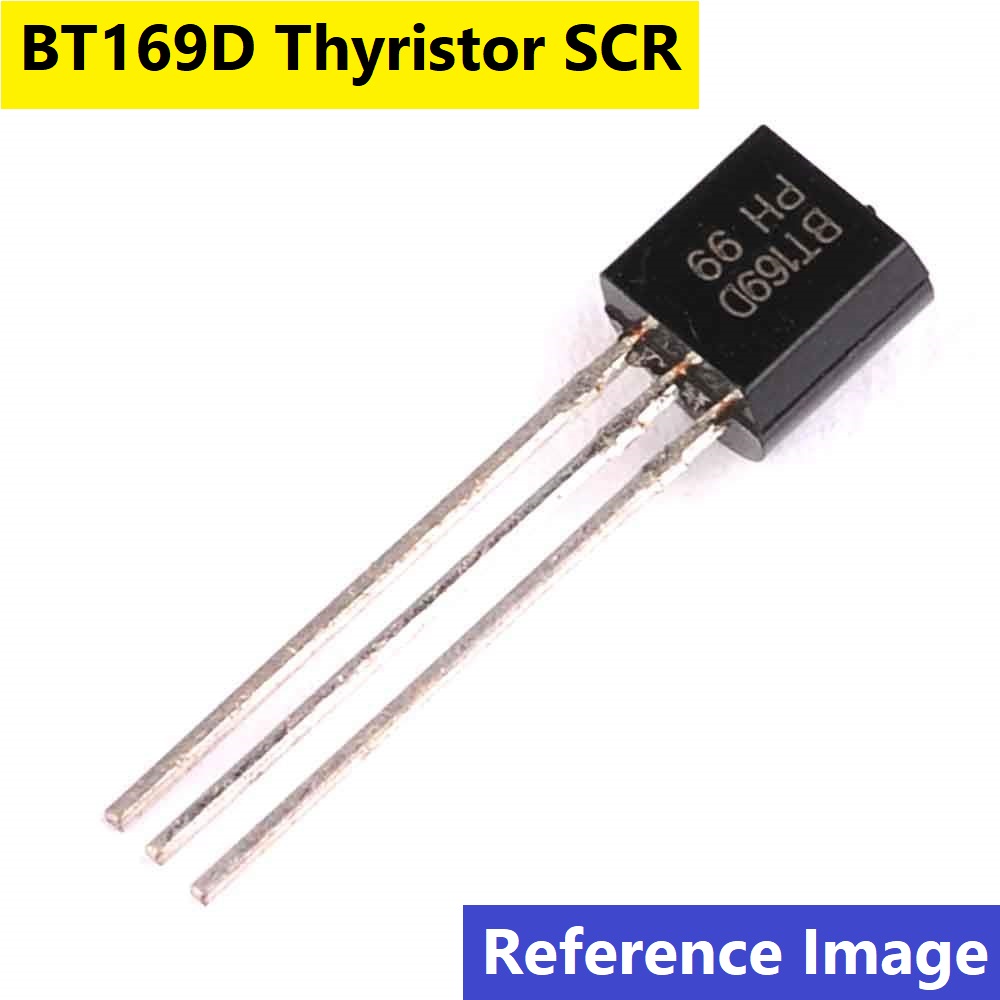

Description: BT169D Thyristor

BT169D Thyristor SCR TO92 0.8A 400V Unidirectional Thyristor BT169D Logic Level TO-92 3 Pin Leads BT169 Thyristors Logic Level SCR

BT169 silicon controlled rectifier type Thyristor BT169, which is in the TO-92 category, has 400V Breakdown Voltage. BT169 Thyristor has 500mA continuous output current.

The BT169D is a Planar passivated Silicon Controlled Rectifier with sensitive gate in a SOT54 (TO-92) plastic package. This SCR is designed to be interfaced directly to micro controllers, logic ICs and other low power gate trigger circuits.

• The BT169D from NXP is a through hole planar passivated silicon controlled rectifier with sensitive gate in a SOT54 (TO-92) plastic package. This SCR is designed to be interfaced directly to microcontrollers, logic ICs and other low power gate trigger circuits.
• Planar passivated for voltage ruggedness and reliability. Direct triggering from low power gate circuits and logic. ICs Average on state current of 500mA. Maximum gate trigger current of 200µA.
• Maximum gate trigger voltage of 800mV. Holding current is 5mA. Non repetitive peak on state current of 8A. Repetitive peak off-state voltage of 400V. Junction temperature of 125°C.
• Applications: Portable Devices, Industrial, Power Management, Consumer Electronics

Specifications:

• Name of the product: BT169
• Product Category: Triac / Thyristor / Diac
• Product Sub-Category: Thyristor
• Package Type: TO-92
• Diode Type: Thyristor
• Breakdown Voltage Vbr: 400V
• Continuous Output Current: 500mA
• On-State RMS Current – It RMS: 800mA
• Non Repetitive On-State Current: 9 A
• Rated Repetitive Off-State Voltage VDRM: 400 V
• Off-State Leakage Current @ VDRM IDRM: 0.05 mA
• On-State Voltage: 1.25 V
• Holding Current Ih Max: 5 mA
• Gate Trigger Voltage – Vgt: 0.5 V
• Gate Trigger Current – Igt: 50 uA
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: TO-92-3

Features:

• Max. Gate Turn-On Voltage (Vgt): 0.5V
• Peak Off-State Voltage(Vdrm): 200V
• On-State Current (It): 0.5A
• Gate Current (Igt): 200µA
• Planar passivated for voltage ruggedness and reliability
• Sensitive gate
• Direct triggering from low power gate circuits and logic ICs

Applications:-

• • Ignition circuits
• • Lighting ballasts
• • Protection circuits
• • Switched Mode Power Supplies

• Name of the product: BT169
• Product Category: Triac / Thyristor / Diac
• Product Sub-Category: Thyristor
• Package Type: TO-92
• Diode Type: Thyristor
• Breakdown Voltage Vbr: 400V
• Continuous Output Current: 500mA
• On-State RMS Current – It RMS: 800mA
• Non Repetitive On-State Current: 9 A
• Rated Repetitive Off-State Voltage VDRM: 400 V
• Off-State Leakage Current @ VDRM IDRM: 0.05 mA
• On-State Voltage: 1.25 V
• Holding Current Ih Max: 5 mA
• Gate Trigger Voltage – Vgt: 0.5 V
• Gate Trigger Current – Igt: 50 uA
• Maximum Operating Temperature: + 125 C
• Mounting Style: Through Hole
• Package / Case: TO-92-3
