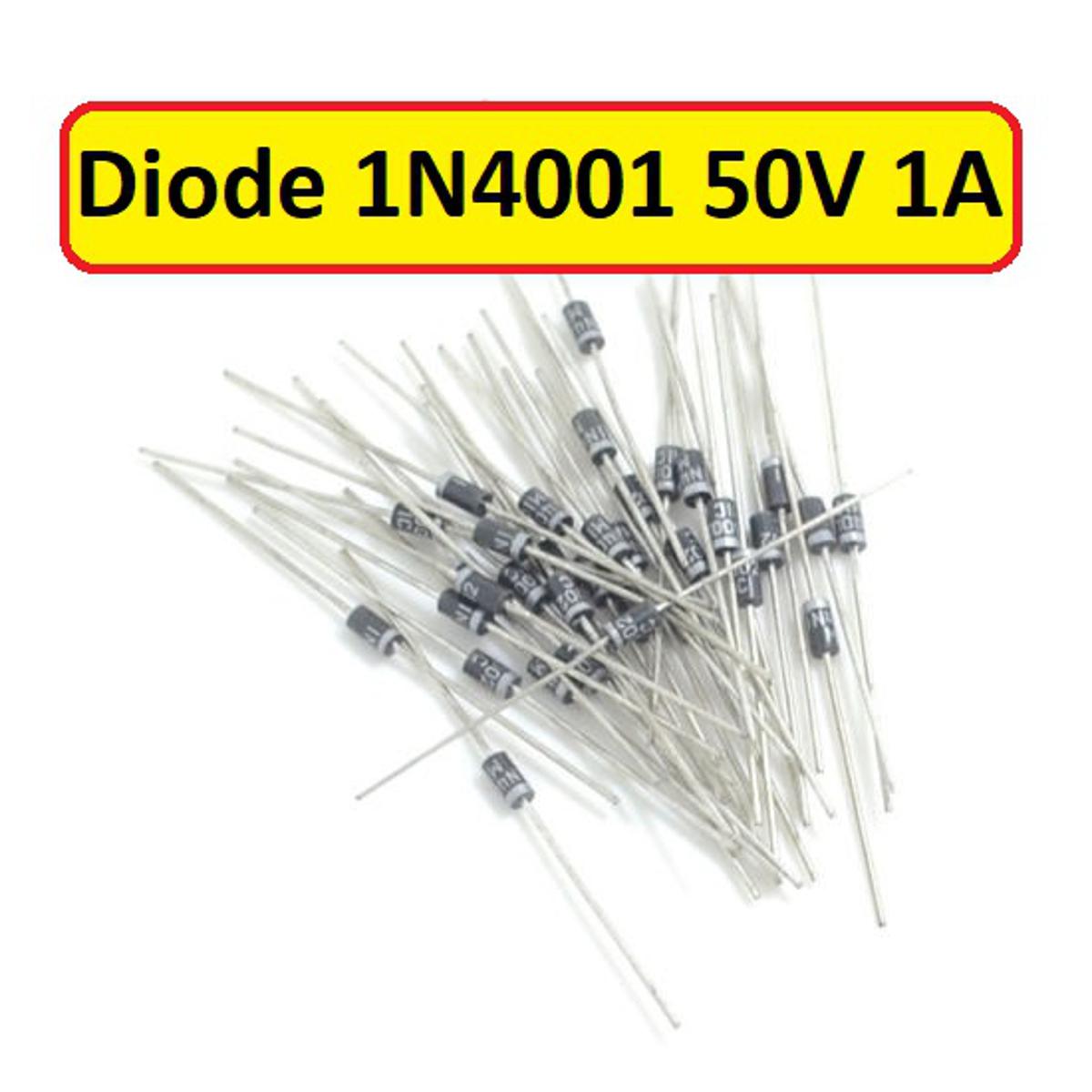

Picture of 10Pcs- Diode 1N4001 1N-4001 4001 50V 1A General Purpose Rectifier Diode Silicon Junction Diode DO-41 Package 2 Pin Leads Terminals
Picture of 10Pcs- Diode 1N4001 1N-4001 4001 50V 1A General Purpose Rectifier Diode Silicon Junction Diode DO-41 Package 2 Pin Leads Terminals

10Pcs- Diode 1N4001 1N-4001 4001 50V 1A General Purpose Rectifier Diode Silicon Junction Diode DO-41 Package 2 Pin Leads Terminals

Category: Building Materials
SKU: UDBD04372
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 39
Tk 46
Tk 46
15% OFF
0 review(s)
  • Product Name : Rectifier Diodes;
  • Model : 1N4001
  • Mounting Type: Through Hole
  • Color : Black, Silver Tone
  • Package:DO-41
  • Forward Current Avg Rectified, IF(AV): 1A
  • Forward Surge Current Max, Ifsm: 30A ,
  • Forward Voltage Max, VF: 1.1V
  • Repetitive Reverse Voltage Max, Vrrm: 50V
  • Weight :0.33 grams

Call For Order : 09613-800800

Description: Diode 1N4001 50V 1A General Purpose Rectifier Diode

The 1N4001 are a very commonly used power diode and are often used for reverse voltage protection on DC input circuits that don’t require a high operating voltage.

The 1N4001 can handle up to 50V reverse voltage and up to 1A of continuous current with a surge peak of 30A. If a higher reverse voltage is needed, check out our 1N4002 thru 1N4004 that can handle 100V, 200V and 400V respectively.

Specifications:

  • Product Name : Rectifier Diodes;
  • Model : 1N4001
  • Mounting Type: Through Hole
  • Color : Black, Silver Tone
  • Package:DO-41
  • Forward Current Avg Rectified, IF(AV): 1A
  • Forward Surge Current Max, Ifsm: 30A ,
  • Forward Voltage Max, VF: 1.1V
  • Repetitive Reverse Voltage Max, Vrrm: 50V
  • Weight :0.33grams

Features:

  • Extremely Low vF
  • Low Stored Charge, Majority Carrier Conduction
  • Low Power Loss/High Efficiency Mechanical Characteristics
  • Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds
  • These are Pb-Free Devices
  • overvoltage protection
  • Metal to silicon junction, majority carrier conduction
  • Very small conduction losses
  • Extremely fast switching
  • Low forward voltage drop
  • High current capability
  • High surge capability
  • Small volume
  • Can be used as the high frequency rectifier in low voltage and high current output
  • Can be used for detection and mixing at very high frequencies
  • Also can be used as a clamp in the high speed logic circuits

Applications:

  • It is used in rectifier circuit.
  • It is used in switching devices.
  • It is used in short circuiting protection purposes.






  • Product Name : Rectifier Diodes;
  • Model : 1N4001
  • Mounting Type: Through Hole
  • Color : Black, Silver Tone
  • Package:DO-41
  • Forward Current Avg Rectified, IF(AV): 1A
  • Forward Surge Current Max, Ifsm: 30A ,
  • Forward Voltage Max, VF: 1.1V
  • Repetitive Reverse Voltage Max, Vrrm: 50V
  • Weight :0.33 grams
