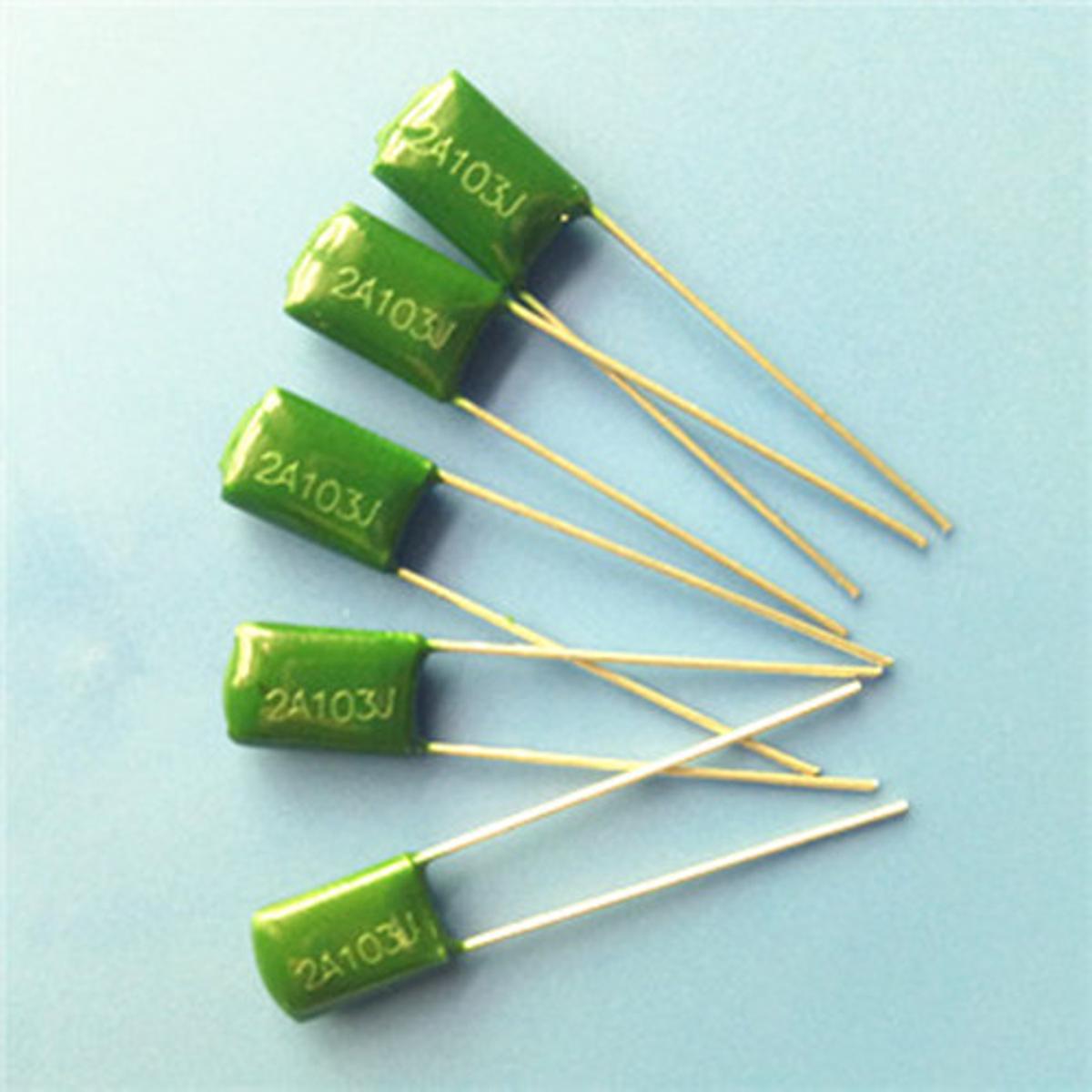

Description: 10NJ/103J 100V Polyester Film Capacitor

Features:

• Small size, light weight and low cost.
• Dissipation factor is small because the leads are directly welded to electrodes
• High stability and reliability
• Epoxy resin vacuum-dipped enhances the mechanical strength and humidity resistance
• Widely used in DC and pulsating circuits of radio, TV sets and various electronic equipments.

Technical specifications:

• 1. Polyester film, inductive, epoxy resin coating;
• 2. Small size, light weight and low cost;
• 3. High stability and reliability;
• 4. Dissipation factor is small because the leads are directly welded to electrodes.
• General Specifications:
• Climatic Category: 55/85/21
• Rated Voltage: 100V
• Capacitance Range:103 or 10nj
• Capacitance Tolerance: +-5%(J); +-10%(K); +-20%(M).
• Voltage Proof: 2UR(5s)
• Dissipation Factor: ≤ 0.01% (20’C, 1KHz)
• Insulation Resistance: ≥ 30000MQ (CR≤ 0.33uF)

• Climatic Category: 55/85/21
• Rated Voltage:  100V
• Capacitance Range:103 or 10nj
• Capacitance Tolerance: +-5%(J); +-10%(K); +-20%(M).
• Voltage Proof: 2UR(5s)
• Dissipation Factor: ≤ 0.01% (20’C, 1KHz)
• Insulation Resistance: ≥ 30000MQ (CR≤ 0.33uF)
