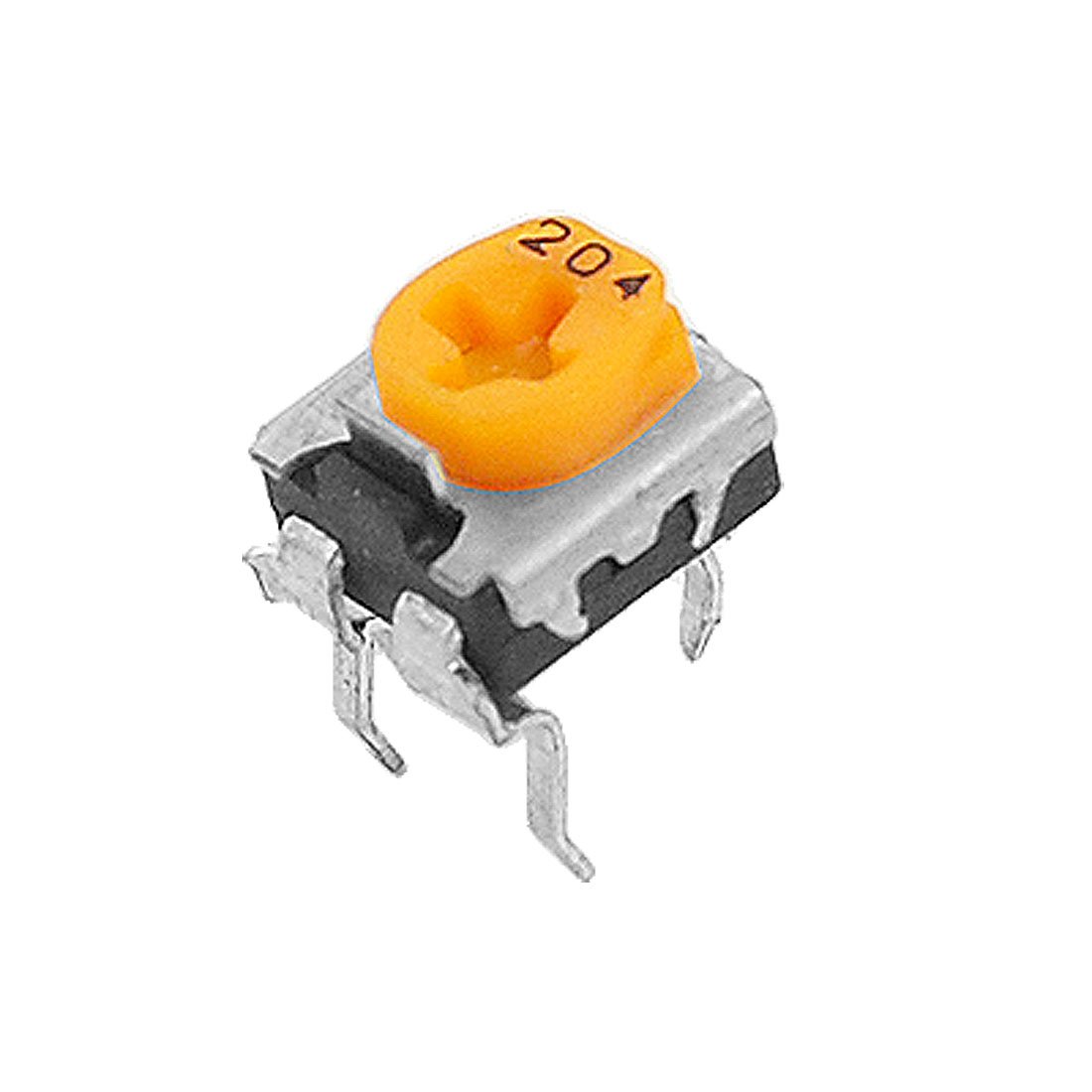

Descriptions: RM065 RM-065 VR 200K Ohm 204

RM065 RM-065 VR 200K Ohm 204 Potentiometer 200K Ohm Trimpot 204 Trimpot 204K Ohm 204 Variable Resistor 204K Ohm 6mm V/R 3 Pin Leads 204K Ohm Trimmer Potentiometer

A general purpose board mountable preset also called by others names like potentiometers, trimpots, etc but is basically just a variable resistor. This potentiometer can also be used as a variable resistor and to generate a variable voltage. To use this potentiometer as a variable resistor, connect the outer two pins to Vcc and 0 V and the center pin outputs a variable voltage between 0 V and Vcc as the potentiometer is rotated. This potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. Perfect for your next LCD contrast adjuster, opamp setting, or volume level.

Features:

• It’s widely used in television, video, Mp3, Mp4, VCD, DVD, telephone, office automation equipment, information communication equipment, etc.
• A common element in electronic devices is a three-terminal resistor with a continuously adjustable tapping point controlled by rotation of a shaft or knob.
• Adjustable resistors come in many different resistances and sizes to suit the PC board or front-panel layout.

Specifications:

• Resistance: 200K Ohm 204
• Resistor Tolerance: ±10% Max
• Max Voltage: 50V
• Rating Power: 0.1W
• Technology: Carbon Film
• Adjustment Type: Top Adjustment

• Resistance: 200K Ohm 204
• Resistor Tolerance: ±10% Max
• Max Voltage: 50V
• Rating Power: 0.1W
• Technology: Carbon Film
• Adjustment Type: Top Adjustment
