Features:

• Size:6x6x7mm
• Rated Load:DC12V 50mA
• Used in the fields of electronic products, household or office appliances, sound equipment, digital products, and more

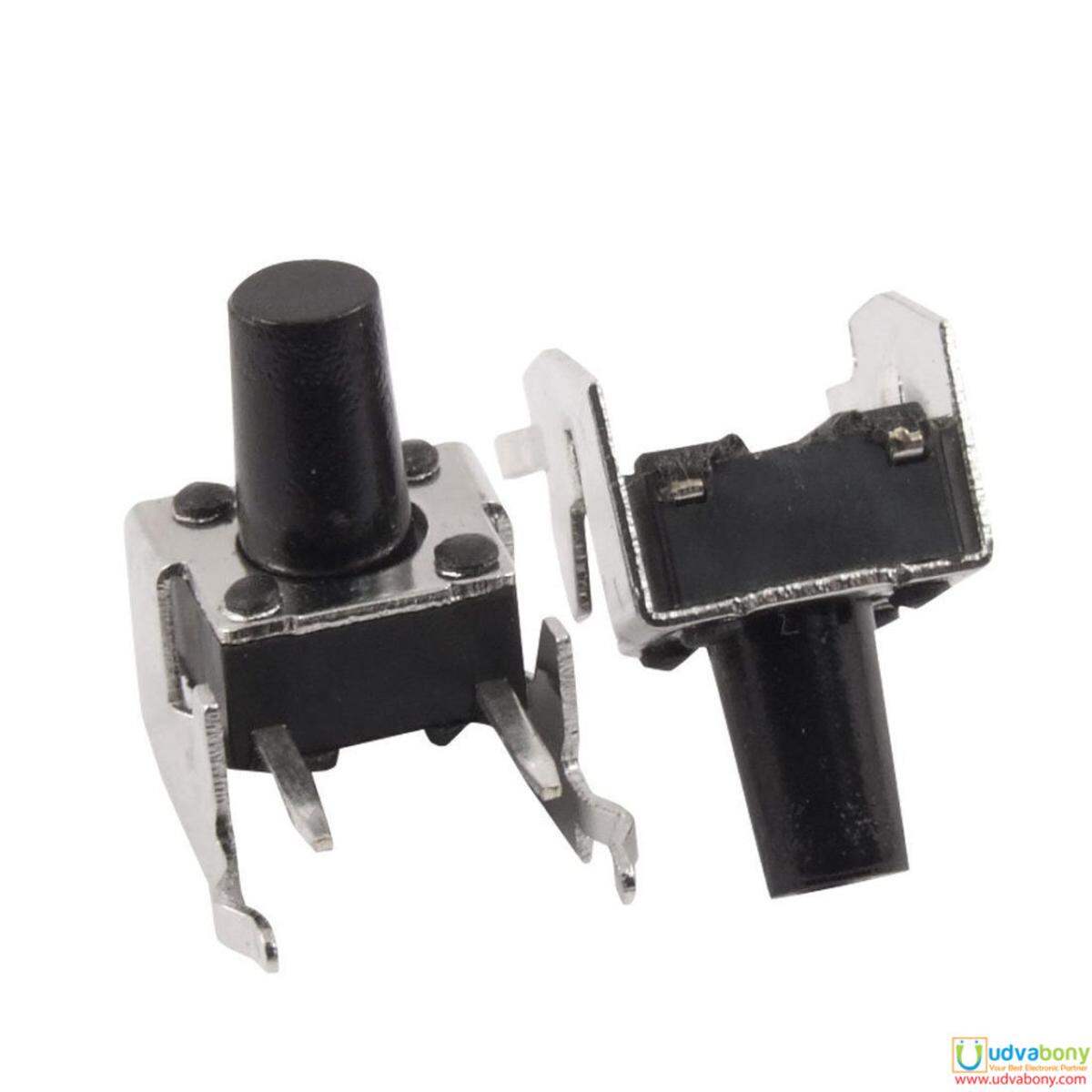

• Feature momentary contact, 2 pins, round black push button, through hole mounting, 6 x 6 x 7mm size, etc.
• Used in the fields of electronic products, household appliances and more.
• High precision mechanism design offers acute operation and long service life.

Specification:

• Type: SPST
• Action Type: Momentary
• Pin Number: 2
• Right Angle With PCB Mount Leg
• Dimension: 6x6x7mm
• Button Diameter: 3.5mm
• Material: Plastic, Metal, And Electric Parts
• Net Weight:4g
• Temperature:-25~+80℃
• Rated Load: DC12V 50mA
• Contact Resistance: ≤0.03Ω
• Insulation Resistance:≥100MΩ

Package Include:

• 1 x Right Angle Momentary 2Pin Tactile Tact Push Button Switch 2 Pin 6x6x7mm 90 Degree Bend On Off PCB DIP Through Hole Touch Switch Momentary Push Button Switch
