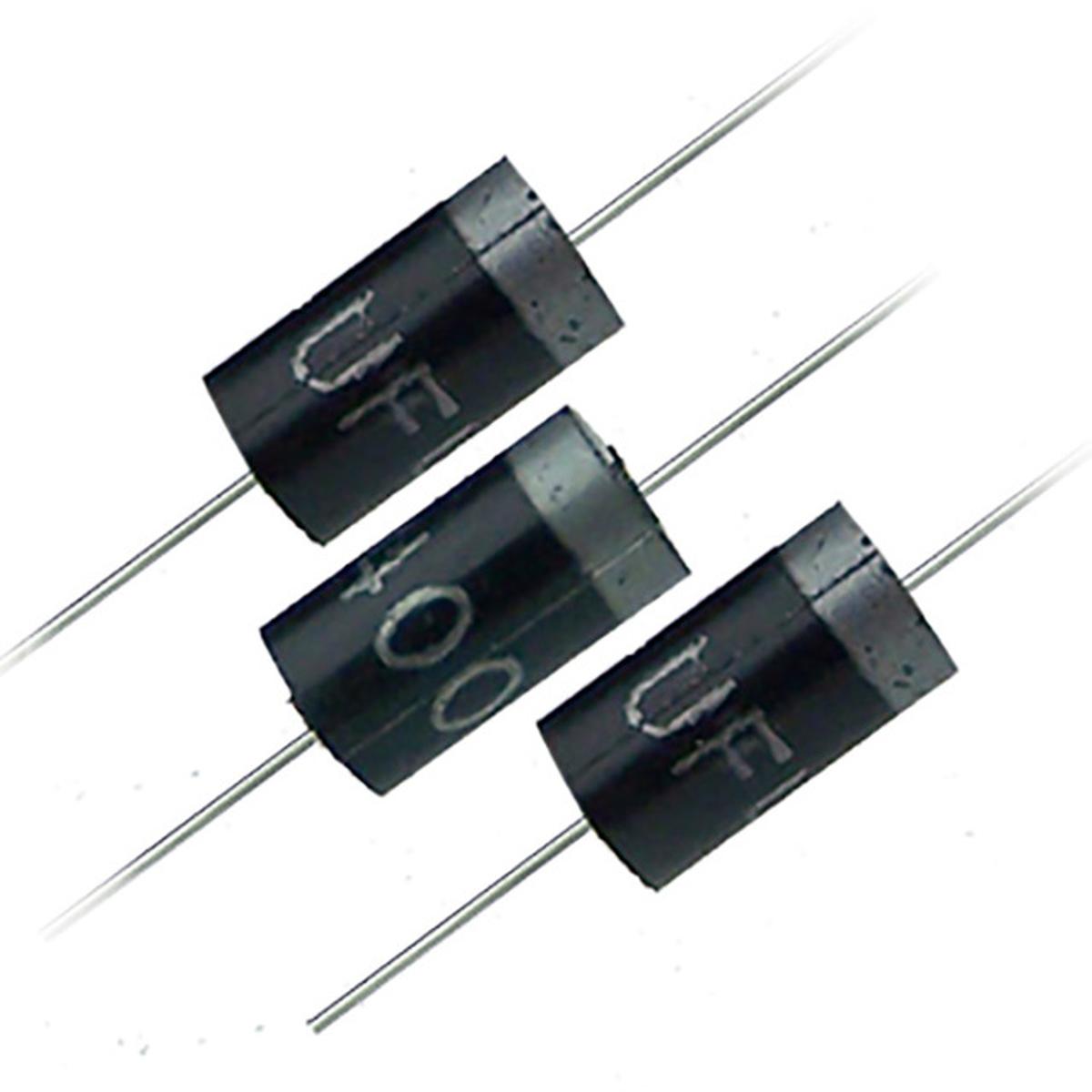

Description: Diode UF4007 1000V 1A General Purpose Rectifier Diode UF 4007 Silicon Junction Diode DO-41 Package

General purpose diodes are two-terminal electronic components that allow current to flow in only one direction, from an anode (+) to a cathode. These simple semiconductors are PN junctions with a positive or P-region with positive ions and a negative or N-region with negative electrons. Applying a forward voltage to the PN junction causes current to flow in only one direction as electrons from the N-region fill “holes” in the P-region. The diodes reverse voltage is the potential barrier that prevents current to flow in the opposite direction, analogous to a pressure rating on a check valve.

UF4007 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 1 A, and have peak inverse voltage (PIV) rating of 1,000 V.

Specifications:

• Product Name : Rectifier Diodes;
• Model : UF4007
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-41
• Maximum Recurrent Peak Reverse Voltage :1000V
• Maximum Average Forward Output Current :1A
• Maximum Forward Voltage Drop per element at 1.0A DC :1.1V
• Operating and Storage Temperature Range : (– 65 to +175°C)
• Weight :0.33grams

Features:

• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Peak Repetitive Reverse Voltage: 1000V
• Average Rectified Output Current: 1A
• Low Forward Voltage Drop
• High Surge Current Capability
• Can be used to prevent reverse polarity problem – Half Wave and Full Wave rectifiers – Used as a protection device – Current flow regulators

• Product Name : Rectifier Diodes;
• Model : UF4007
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-41
• Maximum Recurrent Peak Reverse Voltage : 1000 V
• Maximum Average Forward Output Current : 1 A
• Maximum Forward Voltage Drop per element at 1.0A DC : 1.1 V
• Operating and Storage Temperature Range : (– 65 to +175 °C)
• Weight :0.33 grams
