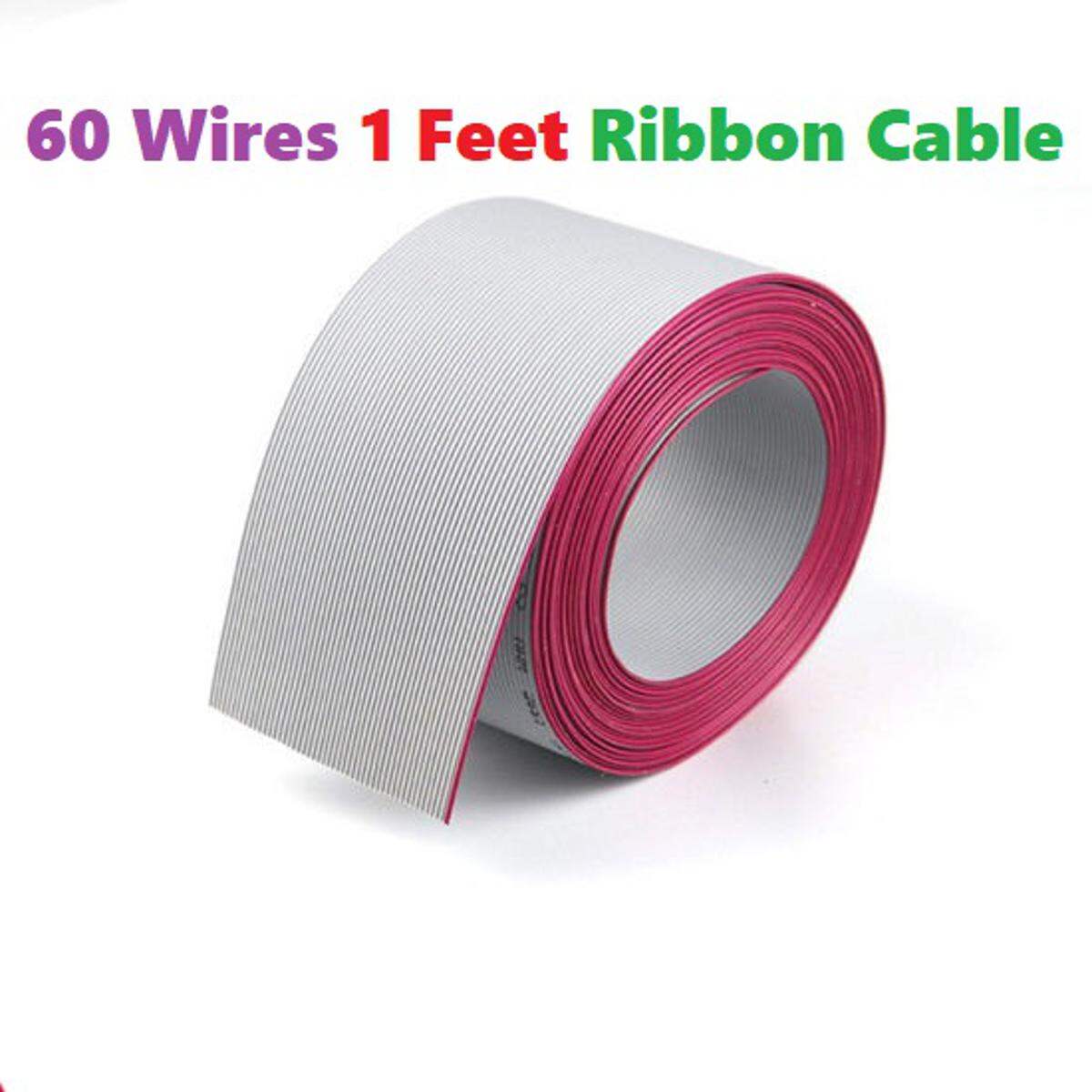

1.25mm GPIO Extension Flat Gray 60 Wires 1 Feet Ribbon Cable For IDC Connector Raspberry Pi 3 Model B And B+ Orange Pi Jetson Nano

Description: 1.25mm GPIO Extension Flat Gray 60 Wires 1 Feet Ribbon Cable For IDC Connector Raspberry Pi 3 Model B And B+ Orange Pi Jetson Nano

IDC Ribbon Cables:

Suitable for use with all commonly available IDC connectors. Consists of parallel stranded tinned copper wire conductors laminated between layers of grey PVC film to form a flat ribbon cable suitable for use with Speedbloc® insulation displacement connectors. Pitch between conductors 0.05in/1.27 mm. One edge has a red marker to indicate the first conductor. May be split into any number of ways by tearing between conductors. The laminate ensures precise alignment and spacing between conductors, essential during assembly with the connectors., Each conductor is formed from 7 strands of 36 awg (0.13 mm diameter.), 28 awg overall (0.08 mm). UL recognised style 2651.

Features and Benefits:

Flat and flexible – can be easily routed in small spaces Provides a tidy wiring solution Available is various ways from 10 way to 60Colour coded – one edge has a red stripe to avoid reverse connections Pitch between conductors is 1.25 mmUL recognised style 2651

Typical Applications:

Ribbon cable is also known as planar cable and are normally used for internal peripherals in computers such as hard drives.

Package Include:

1 x 1.25mm Gray GPIO Extension Flat White 60 Wires 1 Feet Ribbon Cable For IDC Connector Raspberry Pi 3 Model B And B+ Orange Pi Jetson Nano
