Features and Specifications

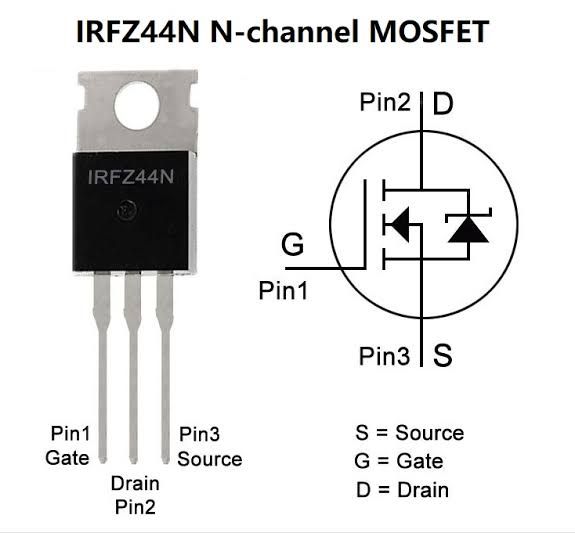

Small signal N-Channel MOSFET

Continuous Drain Current (ID) is 49A at 25°C

Pulsed Drain Current (ID-peak) is 160A

Minimum Gate threshold voltage (VGS-th) is 2V

Maximum Gate threshold voltage (VGS-th) is 4V

Gate-Source Voltage is (VGS) is ±20V (max)

Maximum Drain-Source Voltage (VDS) is 55V

Rise time and fall time is about 60ns and 45ns respectively.

It is commonly used with Arduino, due to its low threshold current.

Available in To-12 package

Note: Complete Technical Details can be found in the IRFZ44N datasheet given at the end of this page.
