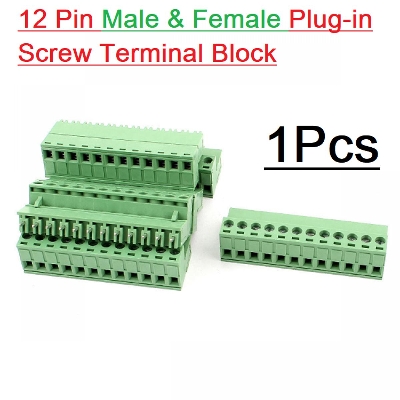

Description: Screw Terminal Block 12 Pin 5.08mm Pitch Male Female Plug-in L Type Right Angle Connectors

12Pin RIGHT Angle GREEN Color MALE & FEMALE Screws Terminal Block 12 Pin 5.08mm Pitch Male Female Plug-In L Type Plug & Socket For Electronics Cables Connectors

12 Pin Right Angle Screw Terminal Block Pluggable Plug Connector 5.08mm Pitch-Pair 5.08mm Pitch 12 Pin Plug-in Screw PCB Terminal Block Connector Right Angle. This terminal block has screws to keep the wires in place.

Specification

• Product Name : PCB Terminal Block;
• Material: Metal and Plastic.
• Pin header: Brass Tin plated
• Mounting Style: Through Hole
• Color: Green
• Pitch: 5.08mm.
• Position: 12 Pin.
• Rated Value: 300V 15A.
• Wire range: 28-12AWG
• Temperature range: -40 degrees Celsius~105 degrees Celsius
• Soldering temperature: 250℃ ±10℃ /5Sec
• Wire strip length: 4.5~5mm
• Withstanding Voltage: 1.5KV
• Approx. Weight: 70gm

Feature

• Brass pin, Rohs compliant.
• It is used in PCB for connecting power source or other wires
• Electronics The good insulating property, never worried about getting an electric shock, safe and reliable
• Easy to install and detach.
• PCB terminal is widely used widely in the electronics, communication equipment, instruments, calculator, automatic control system, domestic appliance and warning devices, etc.

Warm Tips

• 1.Due to manual measurement, there may be a slight error in size.
• 2.Due to the light of the picture and the display of the screen, the color of the picture may be slightly different from the actual object.
