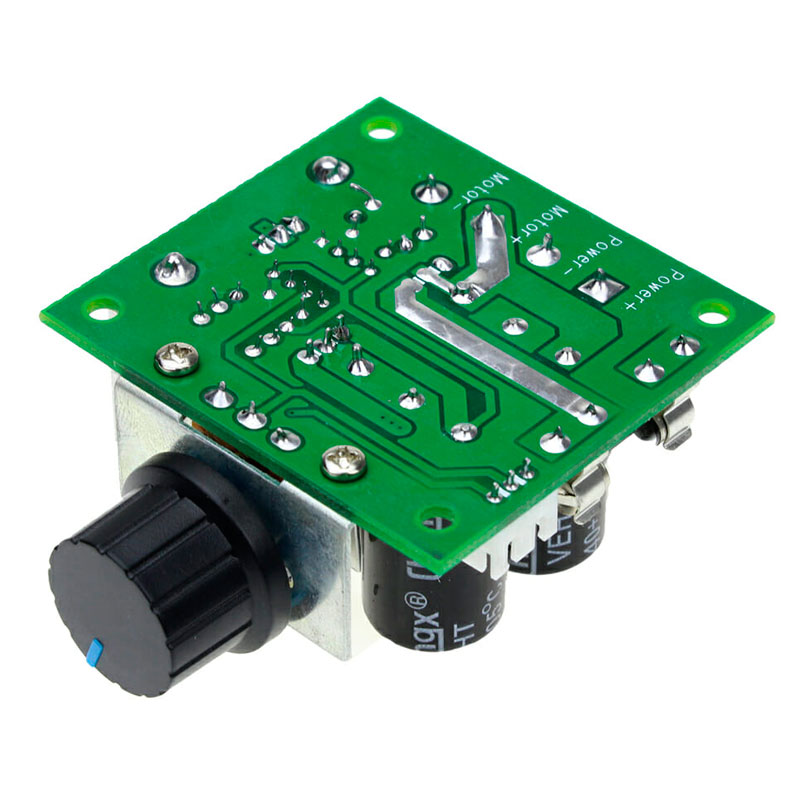

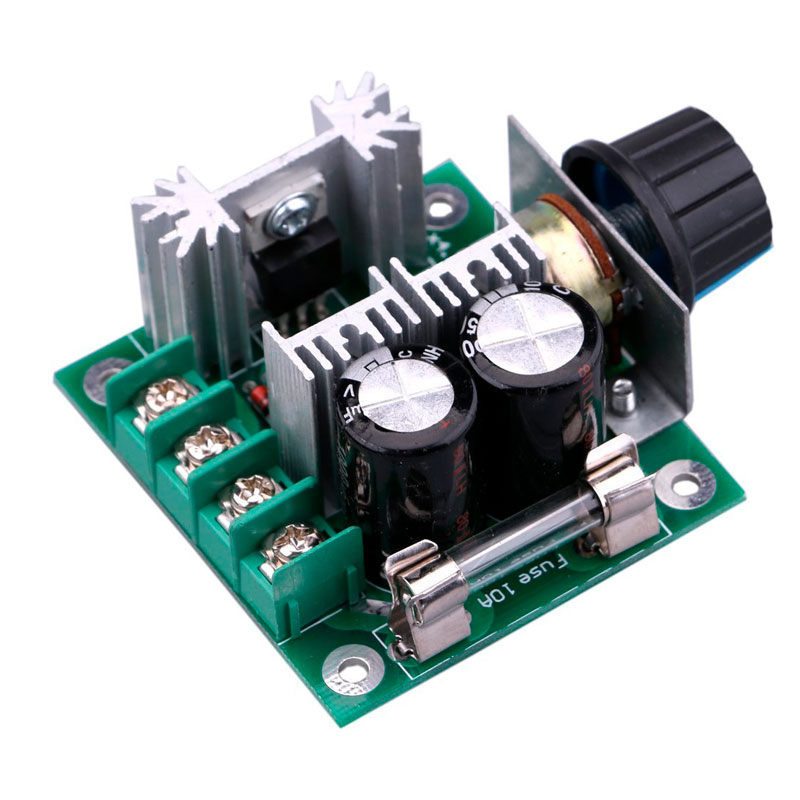

Description: DC 12V-40V 10A PWM Motor Speed Controller CVT Speed Switch Module

Features:

• Using imported high-power FET, the load current up to 10A
• With fuse, to prevent short-circuit high current, causing burnout protection
• With reverse power protection, to prevent damage to the module when the power is reversed
• Original 63V / 1000uF large capacitor, to ensure the stability of the module
• Potentiometers are equipped with nuts, you can use without adding other components

Important:

• This is DC motor controller, please make sure the input voltage is from DC power, do not use home 220V AC, otherwise it will burn out.
• The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%.
• The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load.

Specification:

• 100% brand new and high quality.
• Input supply voltage: DC 12V-40V
• The maximum output power: 400W
• The maximum continuous output current :8A
• The overload and short circuit protecting current is 10A
• Static Current:0.02 A ( Standby )
• PWM frequency: 13kHz
• Duty Cycle adjustable: 10%-100%
• The operation environment temperature:-20℃-125℃
• (L*W*H): 6cm x 5.5cm x 2.8cm/2.36″x 2.16″x1.10″(approx)
• Net weight: 69g

NOTE:

• This can NOT be used to the BRUSHLESS motor.
• The controller is NOT reverse-polarity protected and will be damaged if connect the supply voltage with wrong polarity.
• Double check all connections before applying power and always turn off the power supply before making any wiring changes.

Package Included:

• 1 x 12V-40V 10A PWM DC Motor Speed Controller CVT Speed Switch Module

• 100% brand new and high quality.
• Input supply voltage: DC 12V-40V
• The maximum output power: 400W
• The maximum continuous output current :8A
• The overload and short circuit protecting current is 10A
• Static Current:0.02 A ( Standby )
• PWM frequency: 13kHz
• Duty Cycle adjustable: 10%-100%
• The operation environment temperature:-20℃-125℃
• (L*W*H): 6cm x 5.5cm x 2.8cm/2.36″x 2.16″x1.10″(approx)
• Net weight: 69g
