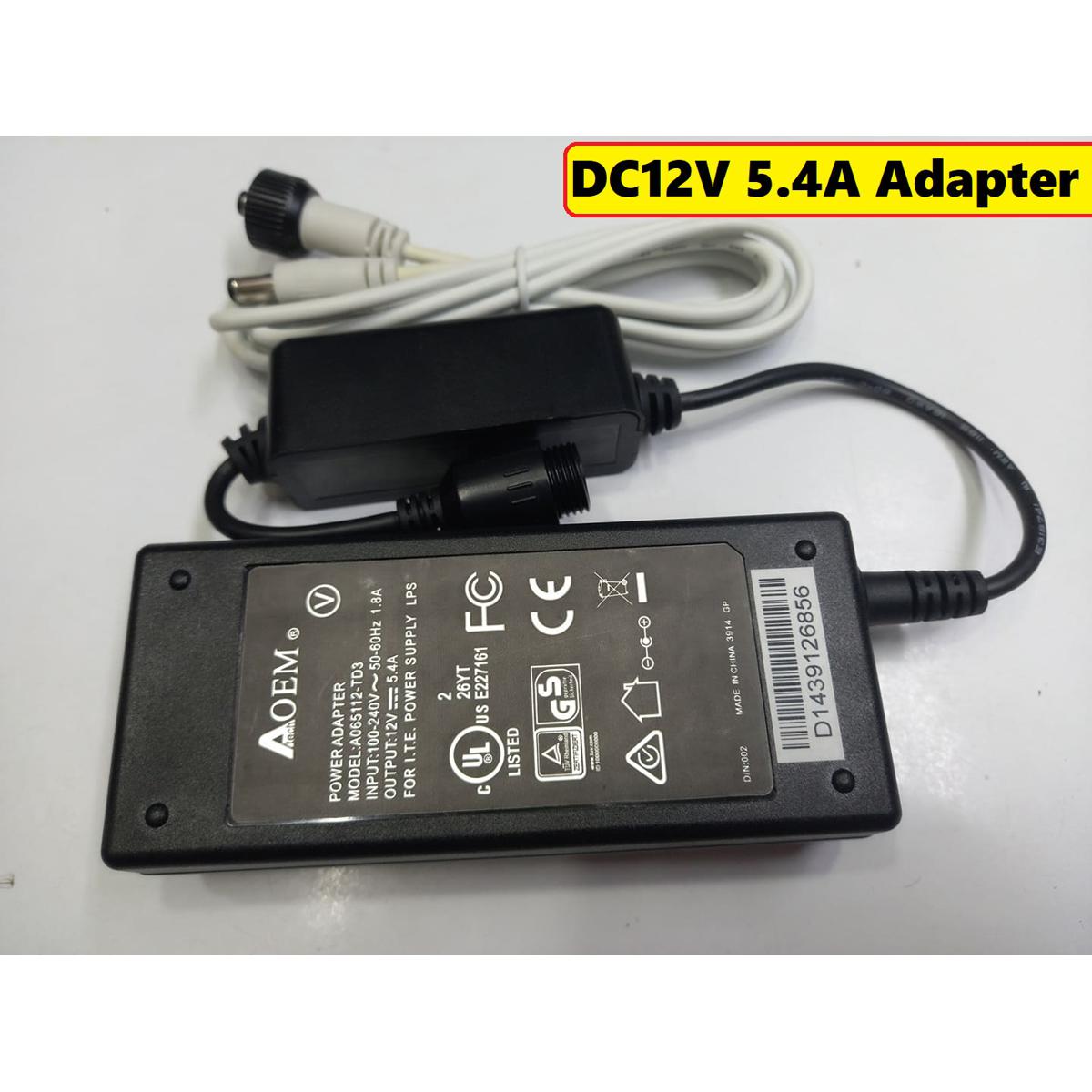

Description: Universal AC 220V To DC 12V 5.4A Power Adapter A065112-TD3 Charger

TheAtechOEM A065112-TD3is an AC Mains Adapter that provides 12V voltage output, wattage output of 65 Watt amd 5.4A output current. This Mains Adapter that designed to works with ITE Power Supply LPS.

Features:

High EfficiencyHigh ReliabilityApplication: Telecom, Set top box, modems, IT

Specification:

Device Type:Mains PowerOutput Wattage:65WOutput Voltage:12VOutput Current:5.4AInput Voltage: 100Vac~240Vac(90~264Vac min/max)Input Current: 1.5A(RMS) maxInrush Current: No damageLeakage Current(A): <3.5mA@240VacNo Load Power Consumption: <0.3W@115Vac/230VacLoad Regulation: +5%/-10%Ripple & Noise: 200mVp-p MaxEfficiency: 83%minSurge: ±1KV(L-L),±2KV(L-G),EN61000-4-5,Criteria BEMI: CISPR 22 class B, FCC class BESD: Air±8KV, Contact±4KV EN61000-4-2MTBF: 250000Hrs min., 100% load, 25°C (Telcordia SR-332, issue 2)Operating Temperature: 0°C ~ +40°CStorage Temperature: -25°C ~ +85°CHumidity: 5%~95%Safety: UL/cUL/CE/CB/FCC

• Device Type: Mains Power
• Output Wattage: 65W
• Output Voltage: 12V
• Output Current: 5.4A
• Input Voltage: 100Vac~240Vac(90~264Vac min/max)
• Input Current: 1.5A(RMS) max
• Inrush Current: No damage
• Leakage Current(A): <3.5mA@240Vac
• No Load Power Consumption: <0.3W@115Vac/230Vac
• Load Regulation: +5%/-10%
• Ripple & Noise: 200mVp-p Max
• Efficiency: 83%min
• Surge: ±1KV(L-L),±2KV(L-G),EN61000-4-5,Criteria B
• EMI: CISPR 22 class B, FCC class B
• ESD: Air±8KV, Contact±4KV EN61000-4-2
• MTBF: 250000Hrs min., 100% load, 25°C (Telcordia SR-332, issue 2)
• Operating Temperature: 0°C ~ +40°C
• Storage Temperature: -25°C ~ +85°C
• Humidity: 5%~95%
• Safety: UL/cUL/CE/CB/FCC
