Description: Incubator AC DC Line Changer Controller Circuit

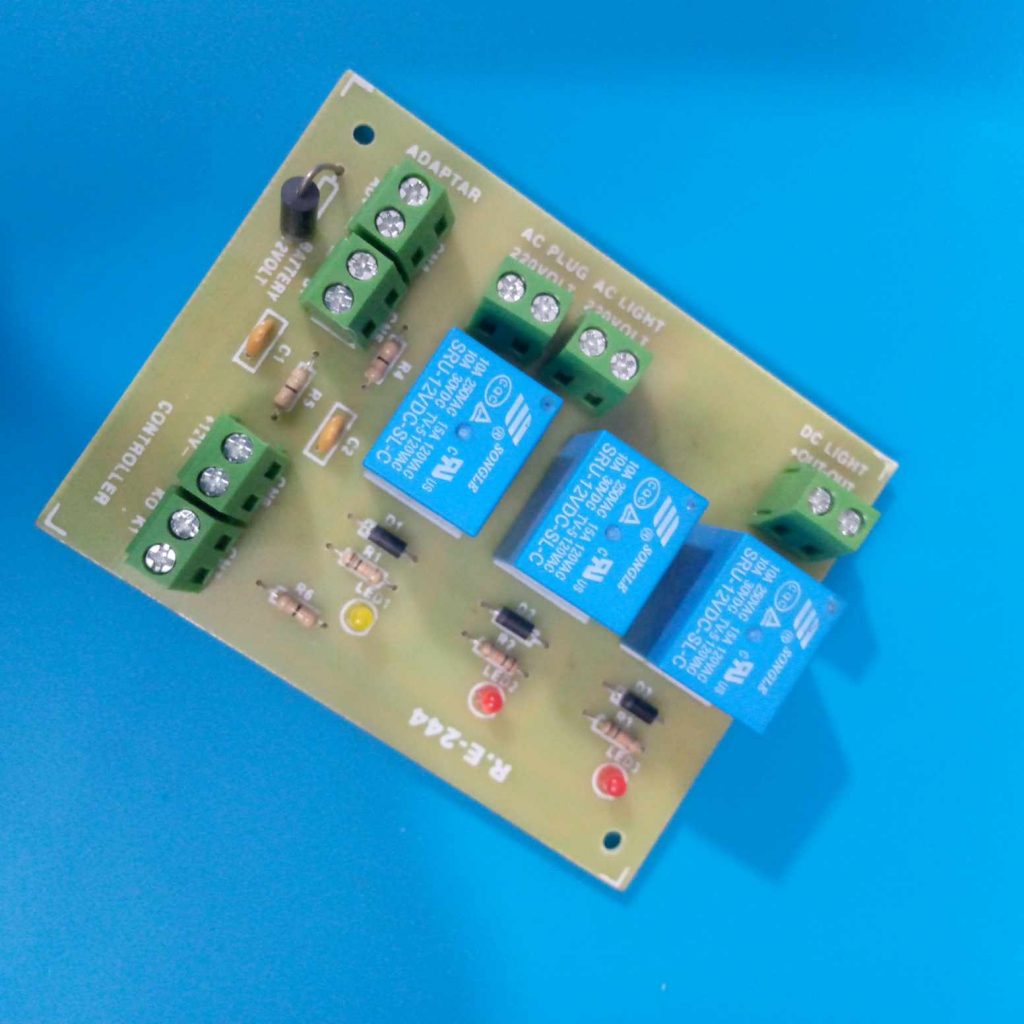

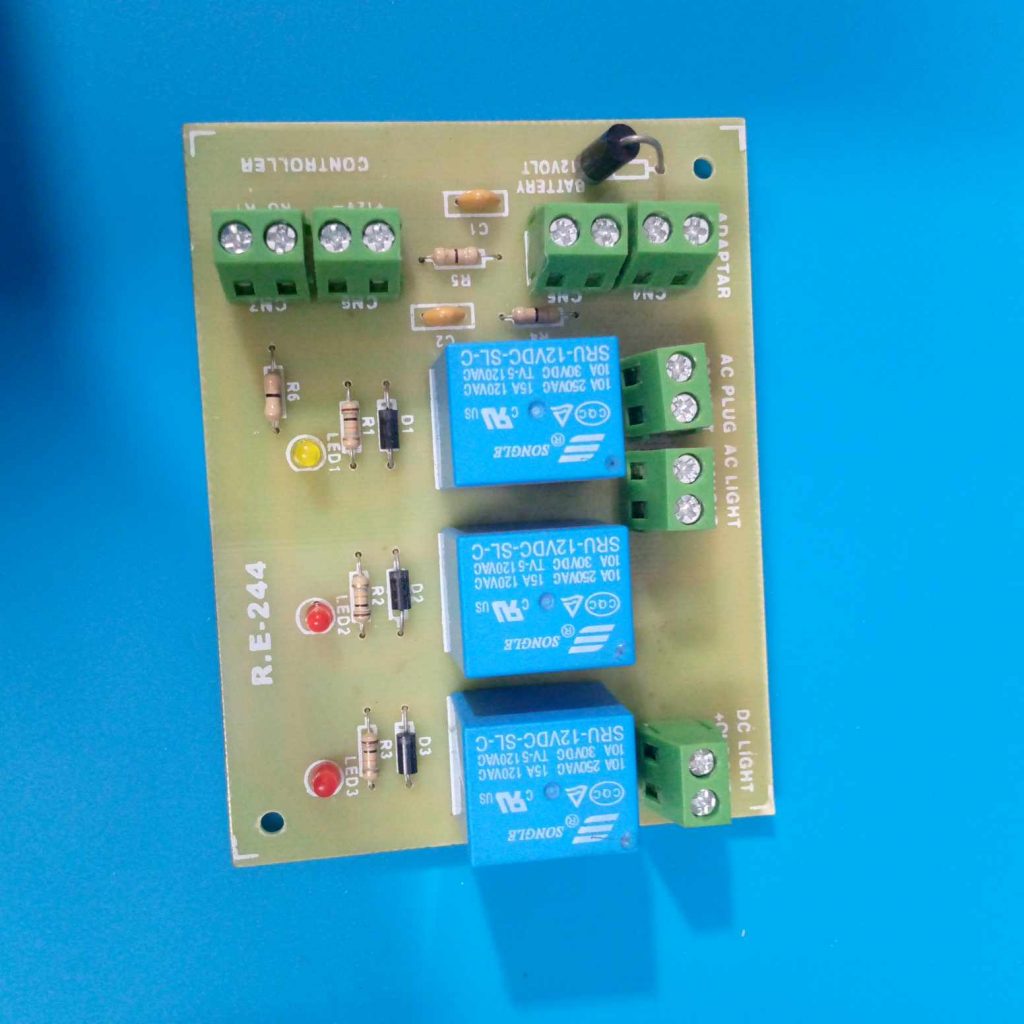

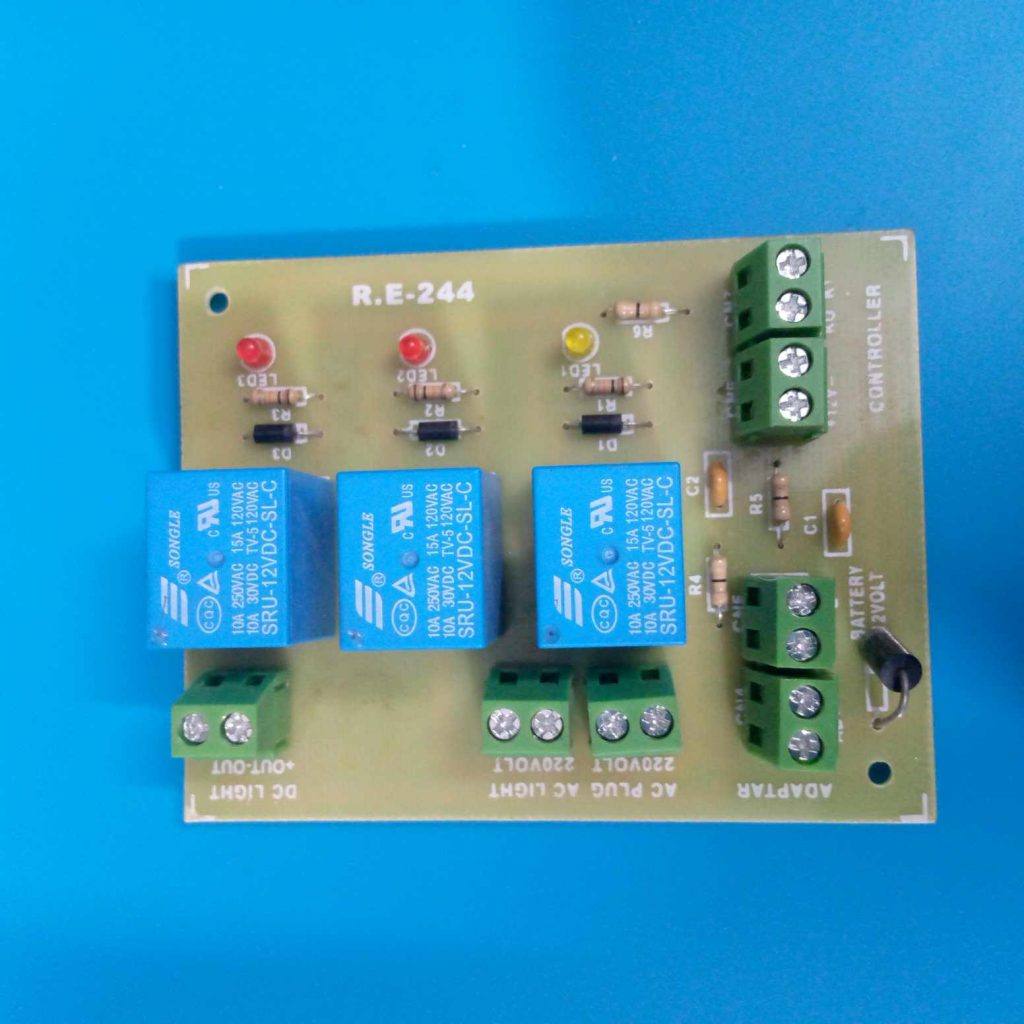

12V Battery Incubator AC DC Line Changer Controller Circuit

Features:

• Line Voltage: AC 220V
• Controller Supply: 12V Adapter
• Backup Battery : 12V DC
• W1209/ XH-M452 will run on line power when power is present
• When there is no power, the relay in the circuit will automatically provide power from the 12V back-up battery
• When power is restored, the circuit relay automatically switches the line from the back-up battery to the AC 220 volt line.
• Back-up battery and 12 volt adapter are not included in this package. Must buy separately
• Connection diagram is given in figure 2 and 3
• Back-up battery and 12 volt adapter are not included in this package. Must buy separately
• Incubator AC DC Line Changer
