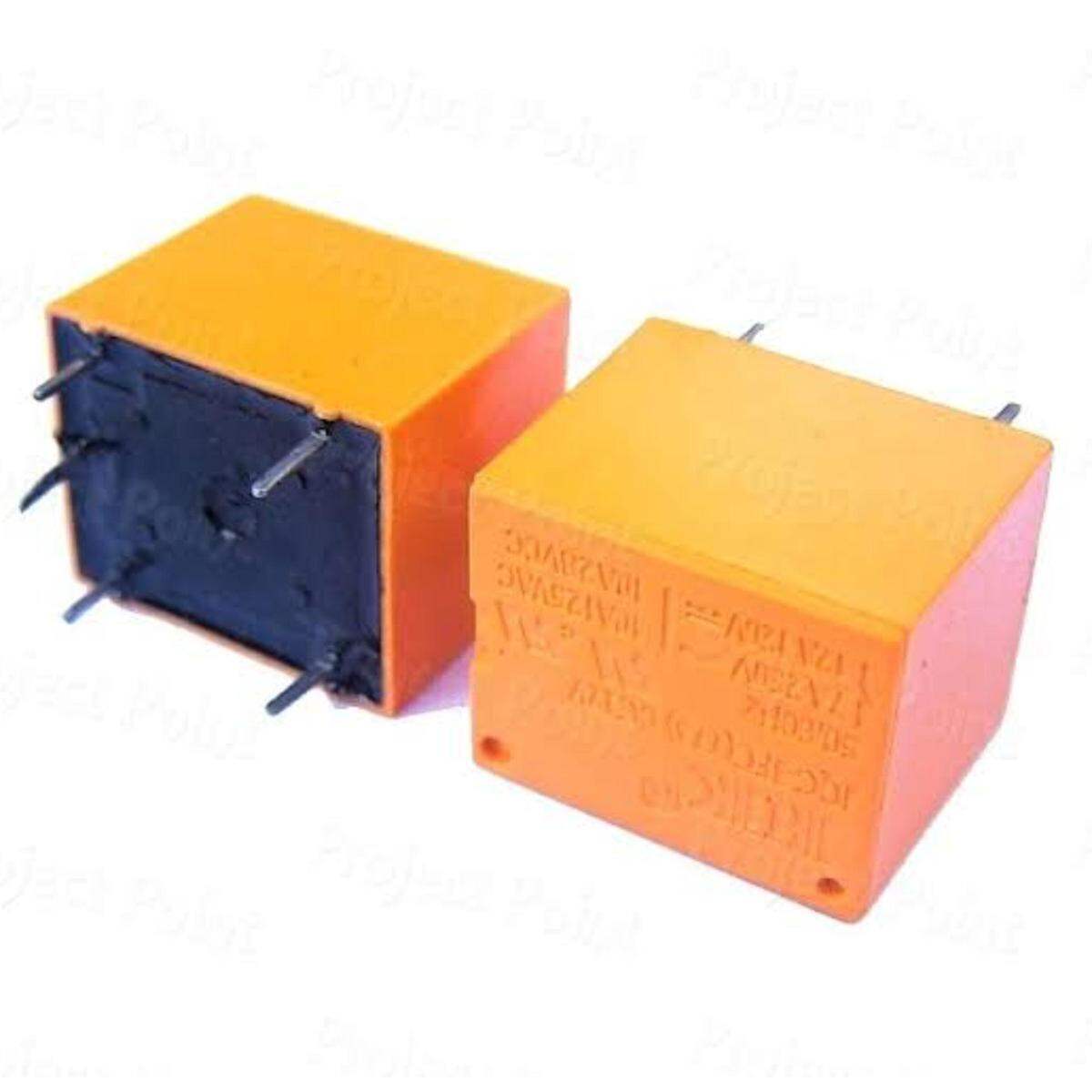

12V SPDT 7A 250V AC PCB Type Relay-5Pcs

Description: 12V SPDT 7A 250V AC PCB Type Relay

This is a Single pole double throw (SPDT) type relay with 5 pins in a cube type package and rated to work at 12VDC. Load Current Max.: 7Amps 250V AC or 10Amps 28V DC. Coil Resistance: 360-440 Ohms.

Features:

Product Name: Power RelayModel: JQC-3F(T73)Coil Voltage: DC 12VContact: AC240V 7A, AC125V 10A, DC28V 10AMain Body Size(Approx.) :1.9 x 1.5 x 1.5cm / 0.75″ x 0.55″ x 0.55″ (L*W*H)Overall Height(Approx.) :2cm / 0.79″External Material Plastic & MetalColor : OrangeWeight :8g

Package Include:

1x 12V SPDT – 7A 250V AC PCB Type Relay-5Pcs
