Description: 1.3 Inch OLED Display 1.3 Inch DC 3-5V 4 Pin Leads Header

1.3 Inch OLED Display 1.3 Inch DC 3-5V 4 Pin Leads Header 12864 128×64 Pixel IIC I2C Interface Communicate OLED Display Module For Arduino

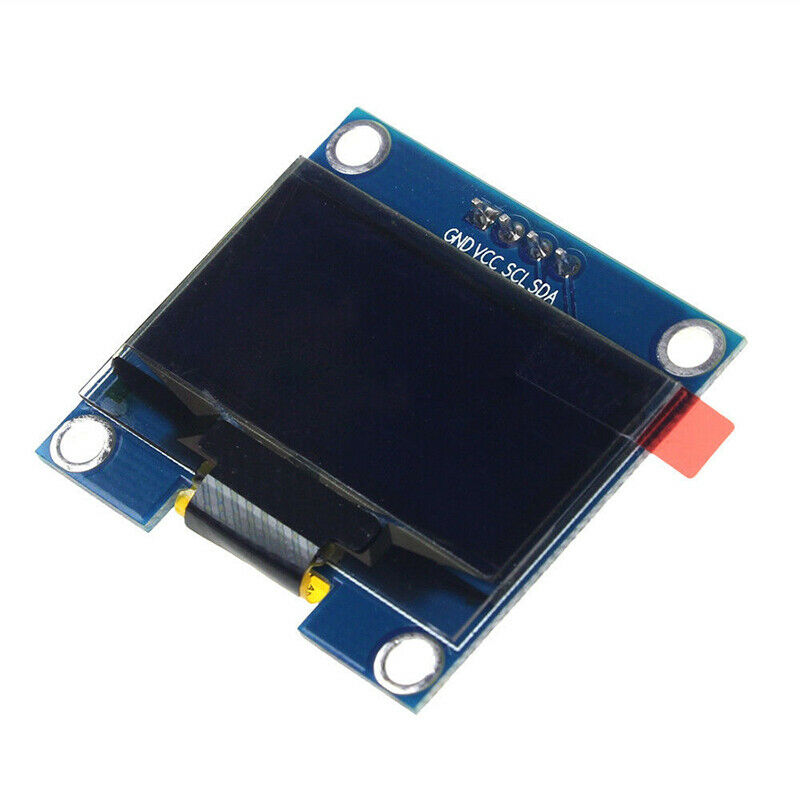

This 1.3″ I2C OLED Display is an OLED monochrome 128×64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

Specification:

Name: Parameter Display Color: white/blue Screen Size: 1.3(inch) Screen Type: OLED Driver IC: SH1106 Resolution: 128*64 (Pixel) Module Interface: IIC interface Active Area: 29.42×14.7(mm) Touch Screen Type: have no touch screen Touch IC: have no IC Module PCB Size: 33.50×35.40(mm) Visual Angle: >160° Operating Temperature: -20℃~60℃ Storage Temperature: -30℃~70℃ Operating Voltage: 3.3V~5V Power Consumption: TBD Rough Weight:(Package containing) 10(g)

Feature:

1.3 inch OLED screen with black and white or black and blue color display

128×64 resolution for clear display and high contrast

Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)

Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required

With IIC bus, only a few IOs can be used to light up the display

Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)

Military-grade process standards, long-term stable work

Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms

Provide underlying driver technical support

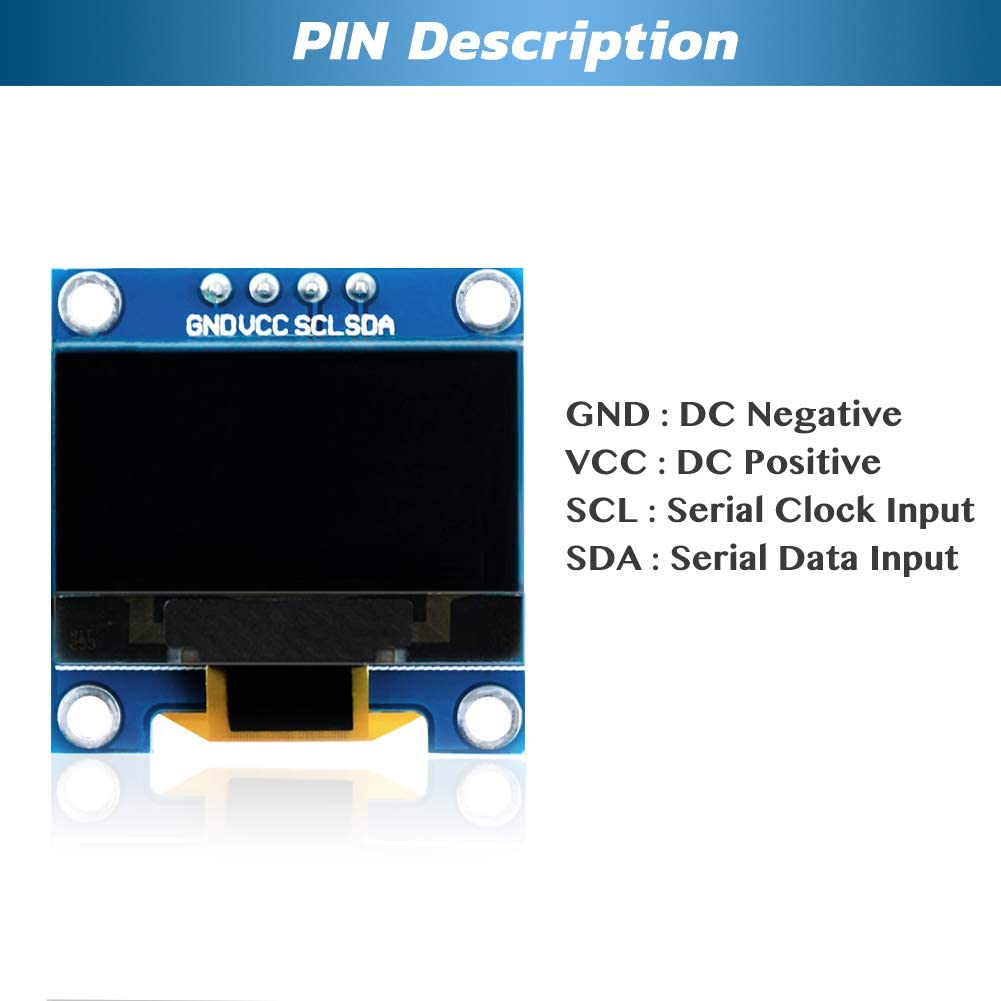

Pin definitions:

1> GND (power ground) 2> VCC (positive power supply) 3> SCL (clock line) 4> SDA (data line)
