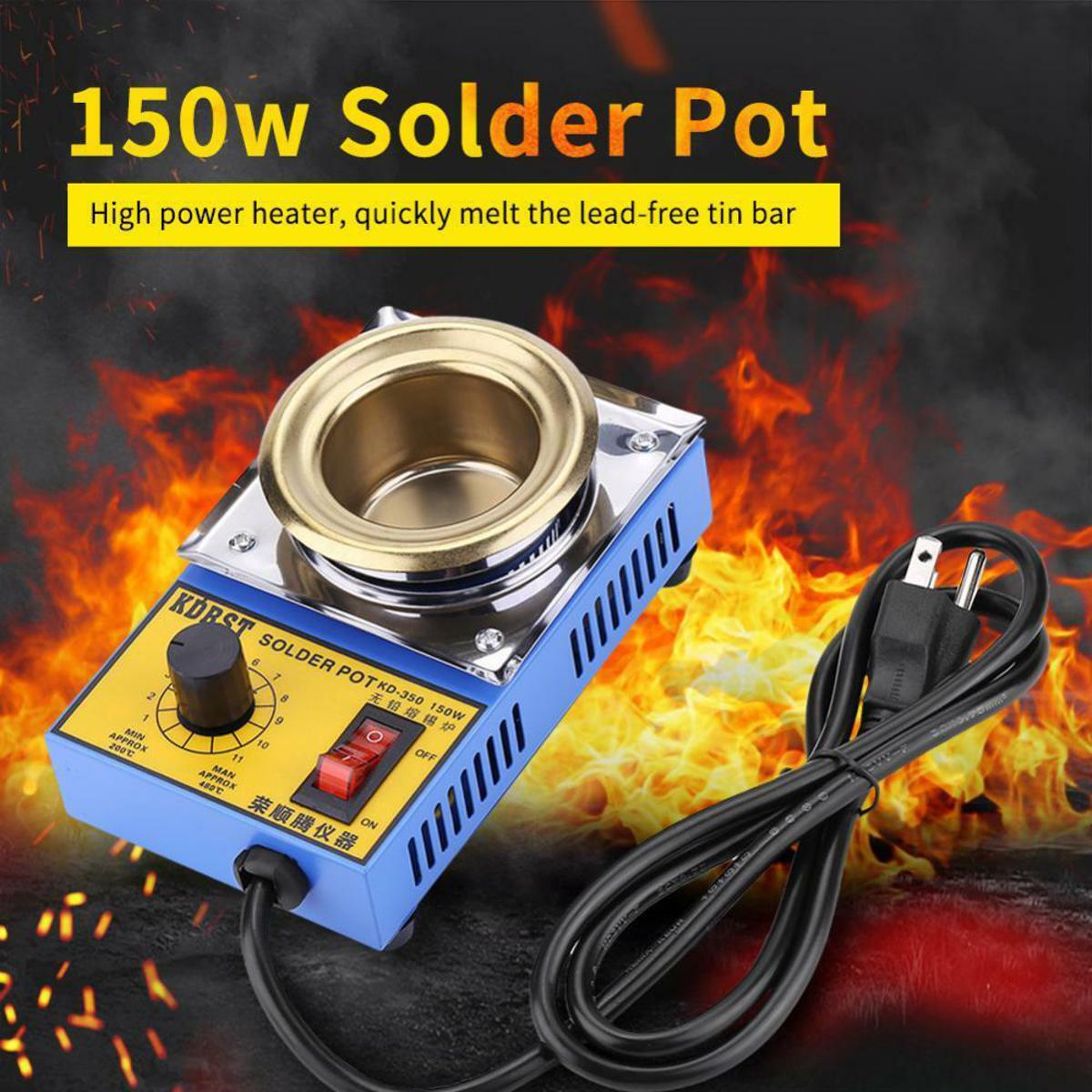

Description: 150W Hot Solder POT Tin Melting Pot 200-480 ℃

This hot solder pot can hold melted tin at adjustable temperature, ideal for variety of tinning applications such as wire end tinning etc

Specification:

• Temperature range:200-480°C
• Melted solder capacity: 500g
• Tin pot diameter(mm): 50mm
• Material: Stainless steel
• Input voltage: AC220v 50Hz
• Product size: length:150mm
• width:87mm
• Wire length:840mm

Feature:

• 1 Electronic temperature regulating plates, some of the imported components production.
• 2 Tin furnace is made of imported stainless steel plate, according to regulate the temperature, automatic constant temperature.
• 3 Easy to use, easy maintenance, good heat effect, melting tin fast.
• 4 The titanium alloy solder bath and other heavy duty components offer greater durability.
• 5 High power heater, quickly melt the lead-free tin bar.

Welding method:

• 1 Firstly, you should put the tin bar into the furnace to melt (melting point of Pb SN is about 250 DEG C, lead-free solder melting point of 300 DEG C or so, slug melting 328 DEG C or so)
• 2 Secondly, put the flux in another container (the welding foot to touch);
• 3 Thirdly, when you are welding, you should put the wire feet to be tinned on the flux to dip, then put into the dip soldering tin stove.
• 4 Lastly, after the temperature of tinned wire becomes cooling, it means the tinning is finish.

Package Include:

• 1 x 150W Hot Solder POT Tin Melting Pot 200-480 ℃

• Temperature range:200-480°C
• Melted solder capacity: 500g
• Tin pot diameter(mm): 50mm
• Material: Stainless steel
• Input voltage: AC220v 50Hz
• Product size: length:150mm
• width:87mm
• Wire length:840mm
