Description: DC 400W 15A Step-Up Boost Converter

DC 400W 15A Step-Up Boost Converter Constant Current LED Power Supply Driver 8.5-50V To 10-60V Voltage Charger Step Up Module RS 1837

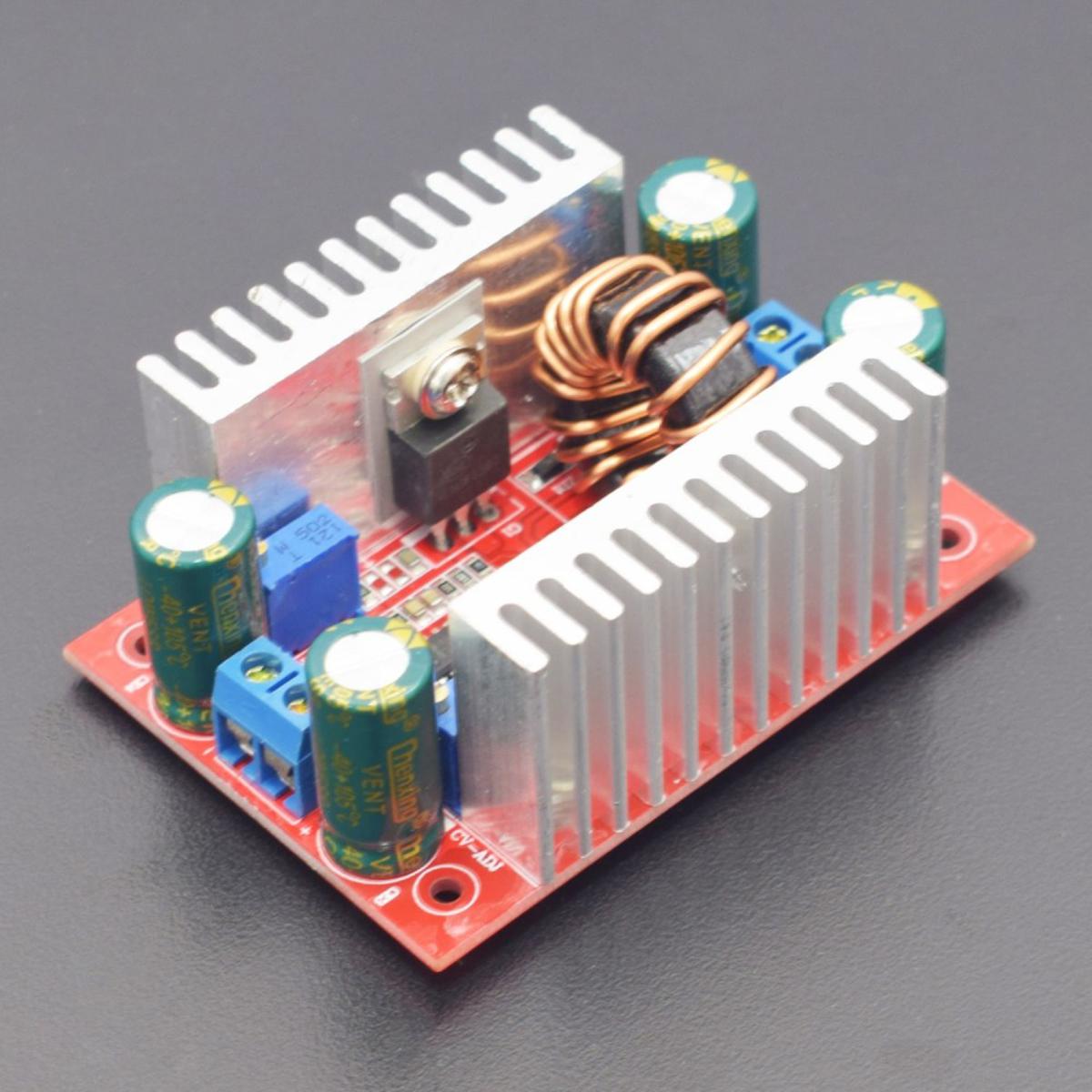

This is a great 400W DC to DC step-up power supply module for electric equipment, digital products, laptop, etc. Input and output are designed with screw terminals for convenient wire connection and disconnection. High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference. There are 2 heat sinks that would ensure a better heat dissipation. It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

Specification:

• Input Voltage: DC 8.5V to 50V
• Output Voltage: DC 10V to 60V
• Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
• Constant Current Range: 0.2A to 12A
• Operating Temperature: -40° to 85°

Features:

• Input and output are designed with screw terminals for convenient wire connection and disconnection.
• High efficiency, the maximum conversion efficiency can be 96% and efficiency is related to input/output voltage, current and voltage difference.
• There are 2 heat sinks that would ensure a better heat dissipation.
• It can also be used as a driver for high power LED lights or voltage regulator for solar panels.

Output Voltage/Current Adjustment:

• Adjust “CV-ADJ” potentiometer clockwise to reduce voltage, counterclockwise to increase voltage.
• Adjust “CC-ADJ” potentiometer counterclockwise about 30 circles to minimize the output current before connecting to load(clockwise to increase current, counterclockwise to reduce current). Then adjust “CC-ADJ” clockwise to the current value you need. If you use the module for battery charging, connect to output after battery is fully discharged. Because if the more energy is left in battery, the less charging current will be.

• Input Voltage: DC 8.5V to 50V
• Output Voltage: DC 10V to 60V
• Max. Input Current: 15A
• Max. Output Current: 12A
• Quiescent Current: 10mA
• Constant Current Range: 0.2A to 12A
