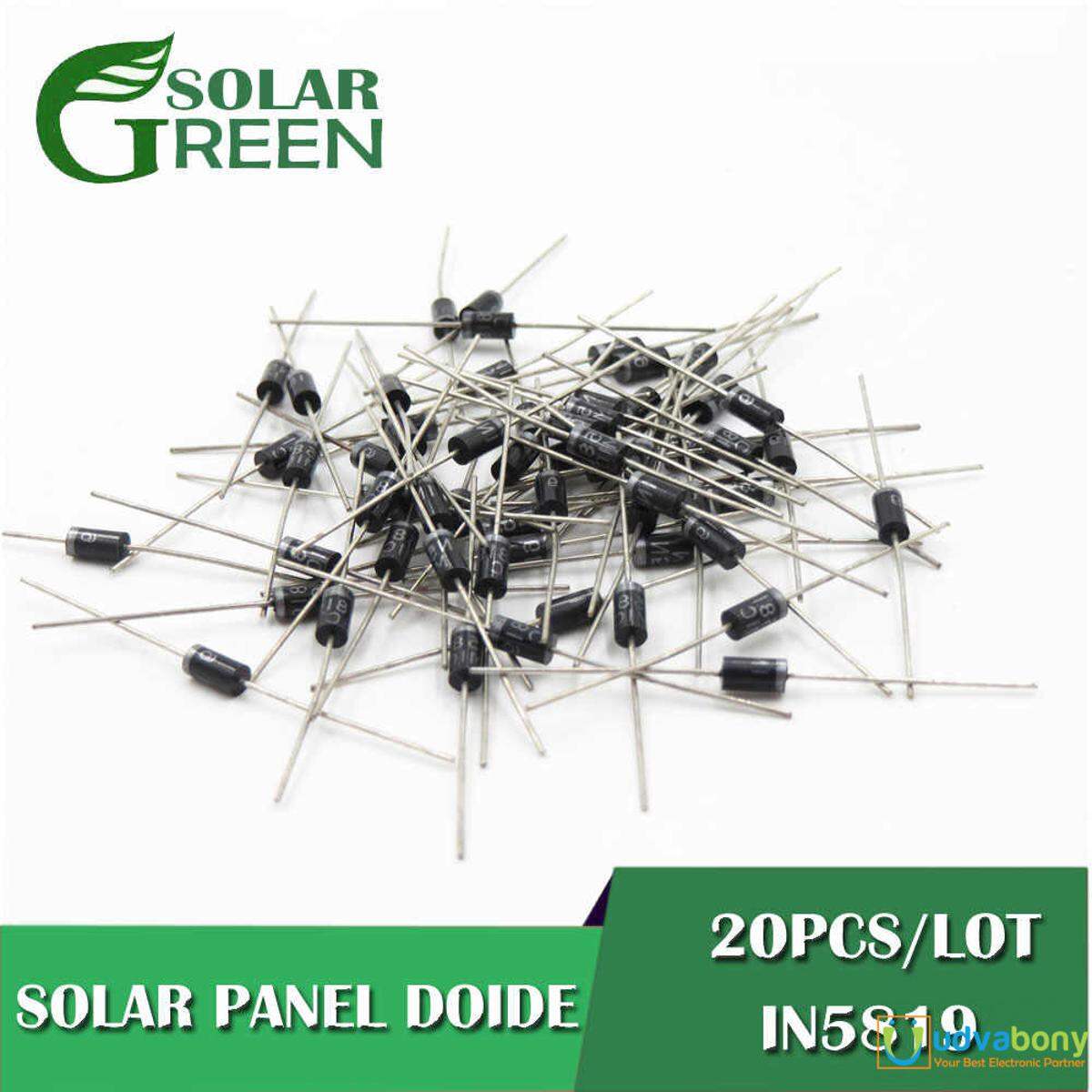

Picture of 15Pcs- Diodes 1N5819 1N-5819 5819 40V 1A Schottky Barrier Rectifiers Diode Silicon Junction Diode DO-41 Package Electronics Circuitry & Parts
Picture of 15Pcs- Diodes 1N5819 1N-5819 5819 40V 1A Schottky Barrier Rectifiers Diode Silicon Junction Diode DO-41 Package Electronics Circuitry & Parts

15Pcs- Diodes 1N5819 1N-5819 5819 40V 1A Schottky Barrier Rectifiers Diode Silicon Junction Diode DO-41 Package Electronics Circuitry & Parts

Brand
Category: Computers, Components & Accessories
SKU: ELPB1014993
Manufacturer: No Brand
Seller: Electronics Parts BD
Tk 117
0 review(s)

Call For Order : 09613-800800

Description: Diode 1N5819 40V 1A Schottky Barrier Rectifier Diode

Diodes 1N5819 1N-5819 5819 40V 1A Schottky Barrier Rectifiers Diode Silicon Junction Diode DO-41 Package Electronics Circuitry & Parts

Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-41 these devices are intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers.

Specifications:

  • Product Name : Rectifier Diodes;
  • Model : 1N5819
  • Mounting Type: Through Hole
  • Color : Black, Silver Tone
  • Package:DO-41
  • Peak Repet. Reverse Voltage (Vrrm): 40V.
  • Max. RMS Reverse Voltage (Vr): 28V.
  • Average Rectified Current (Io): 1.0A.
  • Max. Reverse Current (Ir): 1.0mA.
  • Max. Forward Voltage Drop (Vf): 0.60V.
  • Weight :0.33grams

Features:

  • Low Stored Charge, Majority Carrier Conduction
  • Low Power Loss/High Efficiency Mechanical Characteristics
  • Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds
  • These are Pb-Free Devices
  • Overvoltage protection
  • Metal to silicon junction, majority carrier conduction
  • Very small conduction losses
  • Extremely fast switching
  • Low forward voltage drop
  • High current capability
  • High surge capability
  • Can be used as the high frequency rectifier in low voltage and high current output
  • Can be used for detection and mixing at very high frequencies
  • Also can be used as a clamp in the high speed logic circuits

Applications:

  • It is used in rectifier circuit.
  • It is used in switching devices.
  • It is used in short circuiting protection purposes.
