Description: Diode FR107 1000V 1A General Purpose Rectifier Diodes

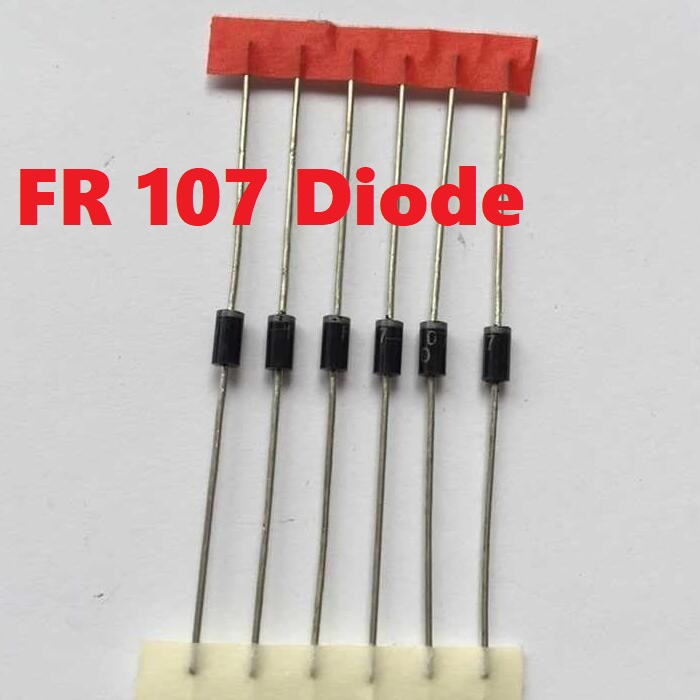

FR107 Diode 1000V 1A General Purpose Rectifier Diodes FR107 Axial Diode DO-15 Package 2 Pin Leads

• Extremely Low vF
• Low Stored Charge, Majority Carrier Conduction
• Low Power Loss/High Efficiency Mechanical Characteristics
• Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds
• These are Pb-Free Devices
• overvoltage protection
• Metal to silicon junction, majority carrier conduction
• Very small conduction losses
• Extremely fast switching
• Low forward voltage drop
• High current capability
• High surge capability
• Small volume
• Can be used as the high frequency rectifier in low voltage and high current output
• Can be used for detection and mixing at very high frequencies
• Also can be used as a clamp in the high speed logic circuits

• Product Name : Rectifier Diodes;
• Model : FR107
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-15
• Forward Current:2A
• VRRM:1KV
• Lead: Plated Axial Leads
• Lead Diameter:0.7mm
• Body Dimension: 6.3 x 3.2mm
• Each Total Length: 58mm/ 2.28″
• Weight :0.33 grams
