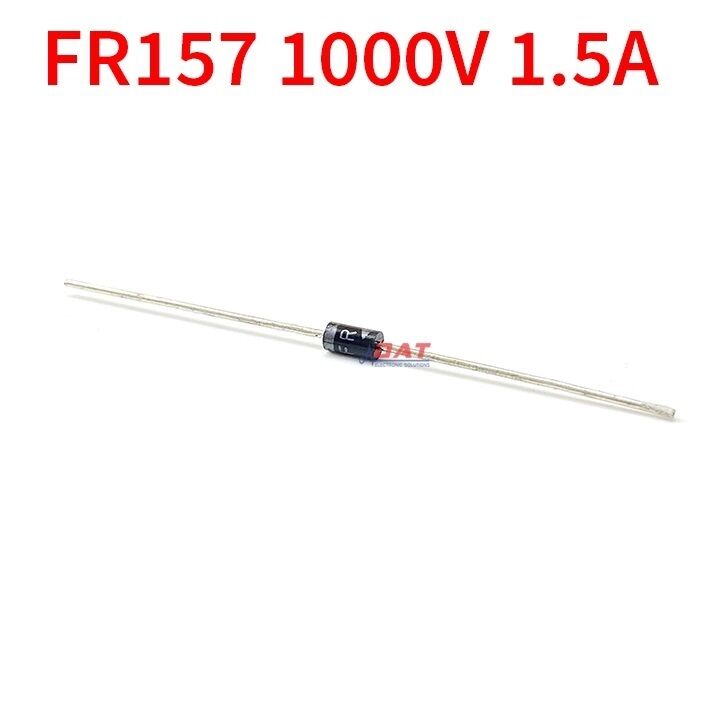

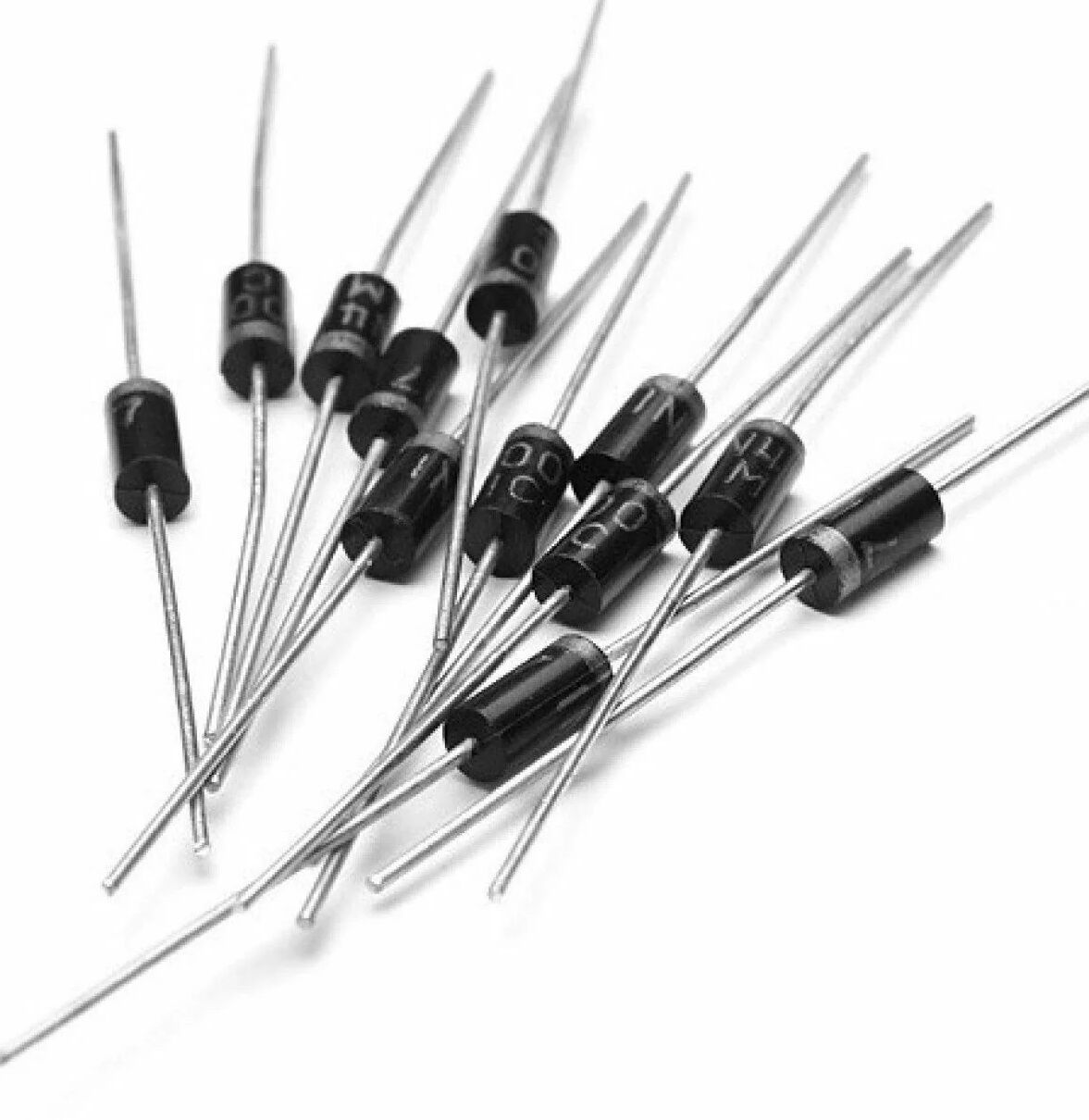

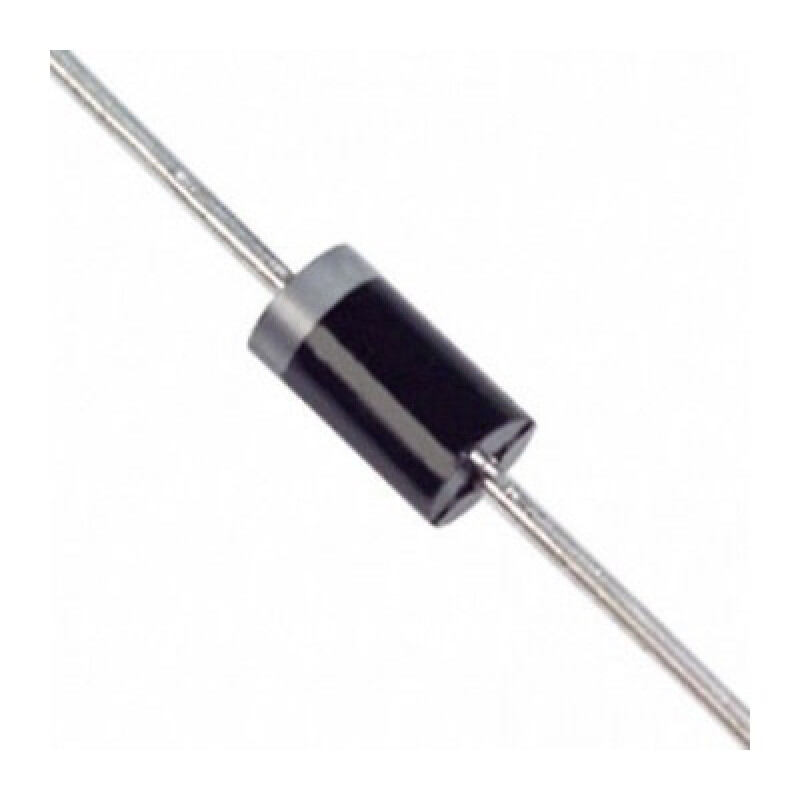

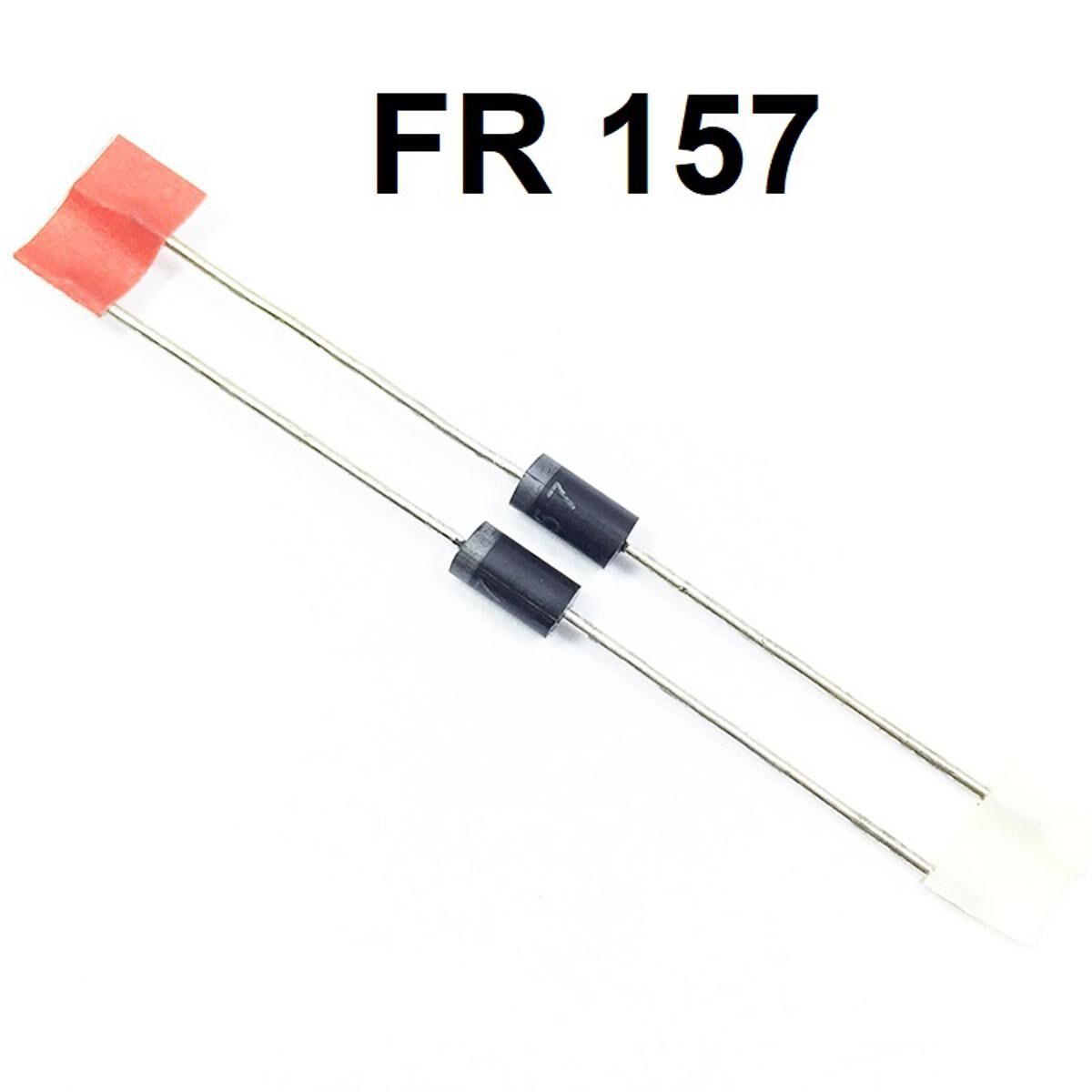

15Pcs - FR157 Diode 1000V 1.5A FR157 General Purpose Rectifier Diode FR157 Axial Diode DO-15 Package 2 Pin Leads 1.5A Diode

Description: FR157 Diode 1000V 1.5A General Purpose Rectifier Diodes

FR157 Diode 1000V 1.5A General Purpose Rectifier Diodes FR157 Axial Diode DO-15 Package 2 Pin Leads

Features FR157 Diode:

• Maximum Recurrent Peak Reverse Voltage – 1000 V
• Maximum Average Forward Output Current – 1.5 A
• Maximum Forward Voltage Drop per element at 1.0A DC – 1.3 V
• Maximum reverse recovery time – 500 ns
• Typical Junction Capacitance 40 pF
• Package – DO-15
• Weight 0.38 grams
• Operating and Storage Temperature Range -65…+150 °C
