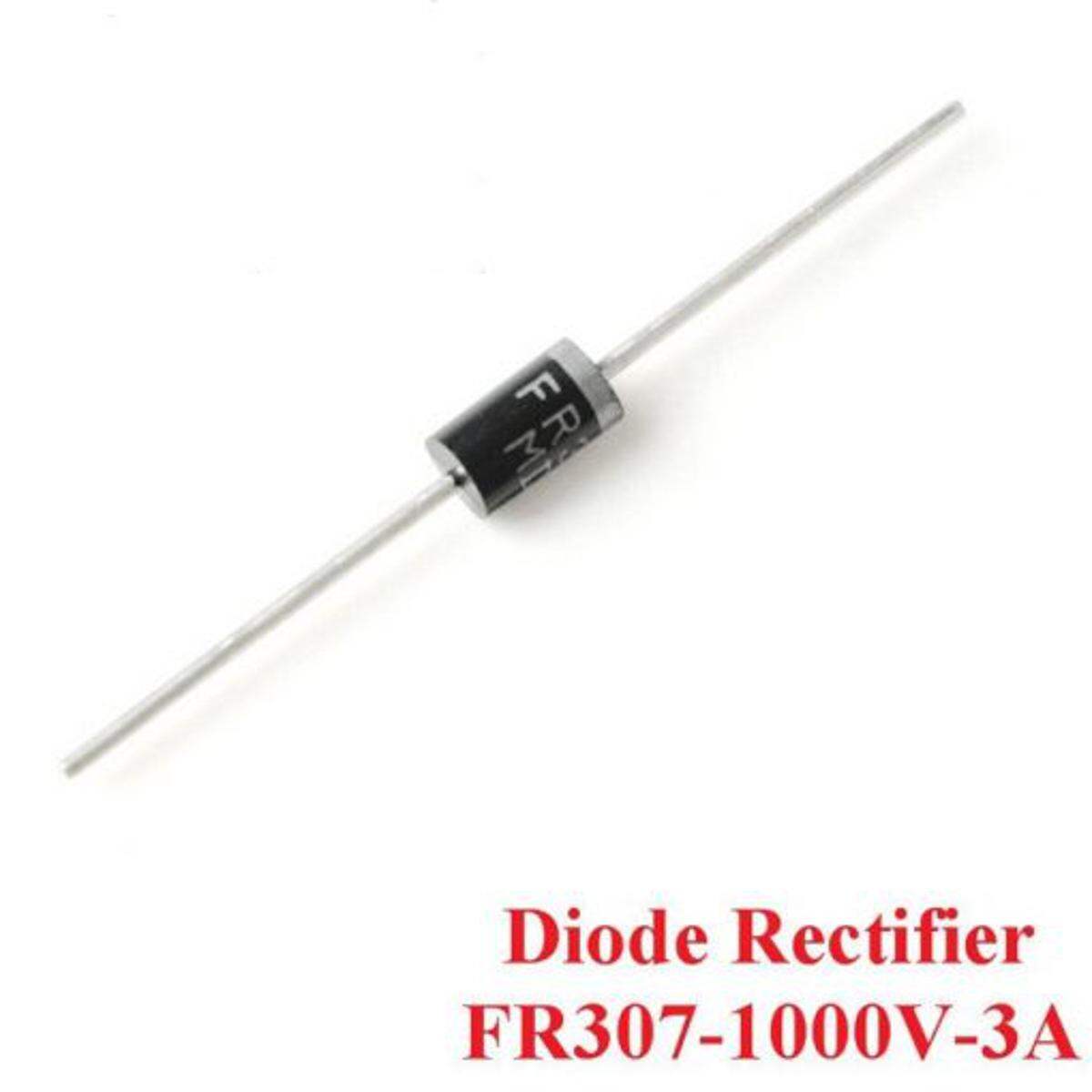

15Pcs FR307 Diode FR307 General Purpose Rectifier Diodes 1000V 3A DO-27 Package 2 Pin Leads

Description: FR307 Diode FR307 Rectifier Diodes 1000V 3A DO-15 Package 2 Pin Leads

Specifications:

• Product Name : Rectifier Diodes;
• Model : FR307
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-27
• Forward Current:3A
• VRRM:1KV
• Lead: Plated Axial Leads
• Lead Diameter:0.7mm
• Body Dimension: 6.3 x 3.2mm
• Each Total Length: 58mm/ 2.28″
• Weight :0.33 grams

Features:

• Extremely Low vF
• Low Stored Charge, Majority Carrier Conduction
• Low Power Loss/High Efficiency Mechanical Characteristics
• Lead Temperature for Soldering Purposes: 260°C Max for 10 seconds
• These are Pb-Free Devices
• overvoltage protection
• Metal to silicon junction, majority carrier conduction
• Very small conduction losses
• Extremely fast switching
• Low forward voltage drop
• High current capability
• High surge capability

• Small volume

• Can be used as the high frequency rectifier in low voltage and high current output

• Can be used for detection and mixing at very high frequencies

• Also can be used as a clamp in the high speed logic circuits

Applications:

• It is used in rectifier circuit.
• It is used in switching devices.
• It is used in short circuiting protection purposes.
