16 Pin Universal ZIF Socket 16Pin DIP 16 Pins 2.54mm Pitch IC Chip ZIF Socket Adaptor For Electric Fittings Universal IC Test And Program Electronics Circuitry & Parts

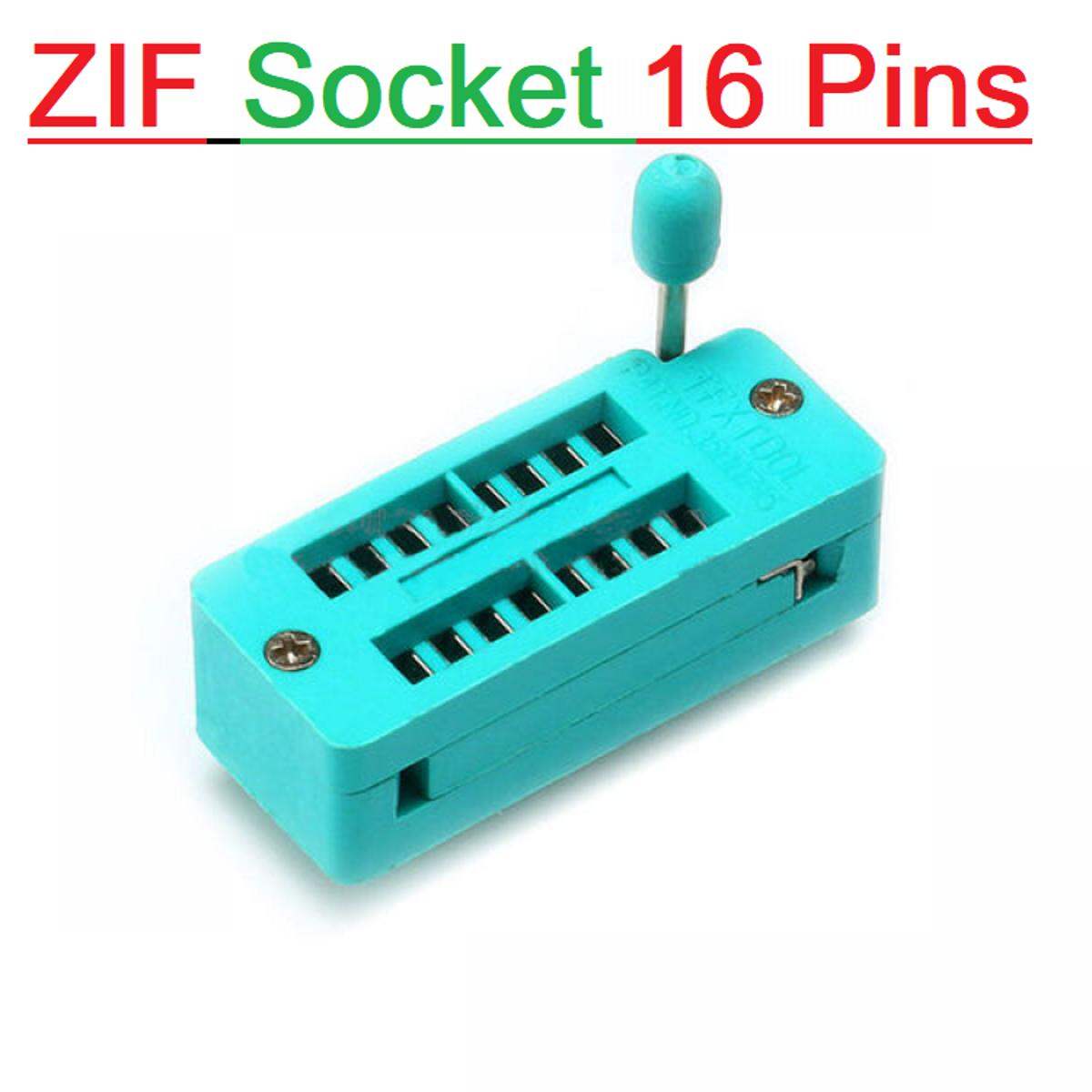

Description: ZIF Socket 16Pins

• These Zero Insertion Force (ZIF) sockets clamp onto a chip, making a good electrical connection, when you push the lever down. When you release the lever, it releases the chip. This allows you to repeatedly insert or remove a chip from the socket without damage to either.
• These are great for two situations: When you want to replace the chip that goes in a given place frequently, or when you want to program one chip after another in the same fixture. (For example, we use them to program the chips in our open-source kits!)
• These 16-pin ZIF sockets (0.3″ wide) are perfect for programming microcontrollers in DIP packages with up to 14pins, including 8-pin, 16-pin devices. There’s even a little bar to indicate where to put a DIP-8, if you want to use one. They’re great for programming the ATtiny2313 chips.
• When using ZIF sockets, keep in mind that the pins are a bit wider than regular IC pins– they fit in most pad-per-hole type prototyping boards, but may not fit in a chip socket or circuit board that was meant to hold a chip alone.

Features:

• High quality and durable
• Nickel-Tin Plated Contacts
• Easy to Remove and Program IC’s
• Suitable for All IC Sizes Up To 16 pins
• Package: DIP16
• Pitch: 2.54mm

Specifications:

• Fits up to 16-pin DIP chips, in 0.3″ width
• Overall body size: Standard
• Pins are 0.3″ apart (fit into a 0.3″ socket) and 3.6mm (0.15″) long

Package Include:

• 1 x ZIF Socket 16 Pins
