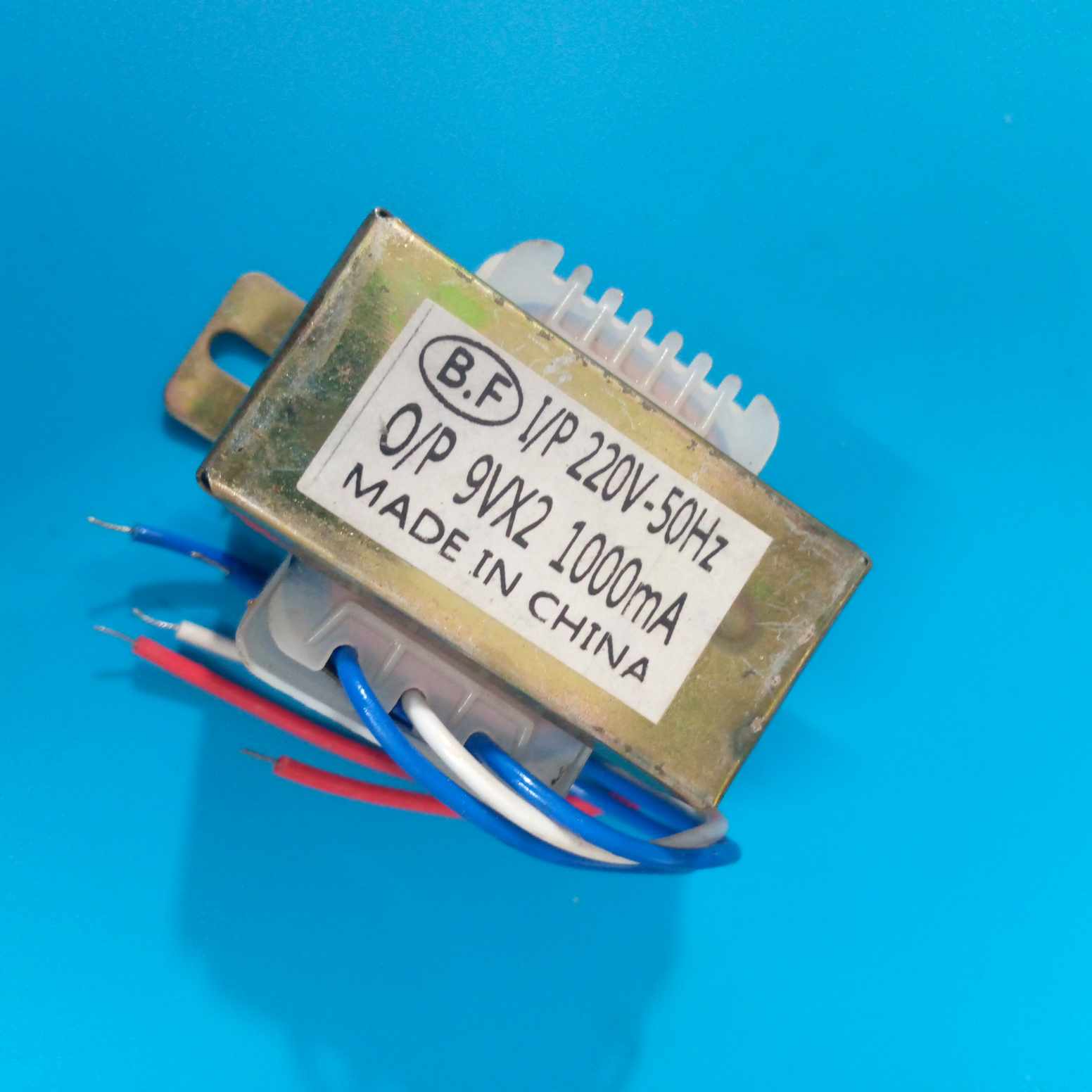

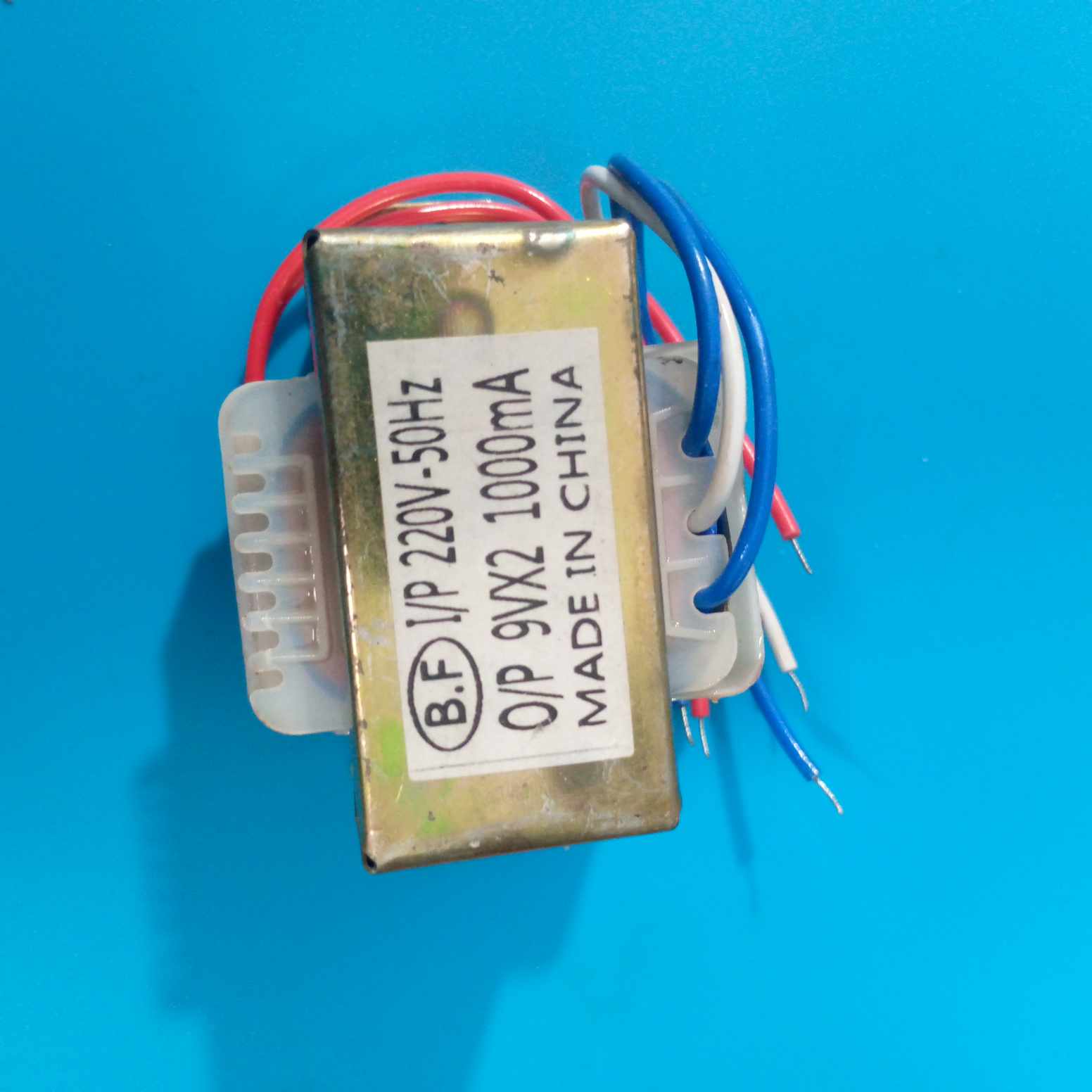

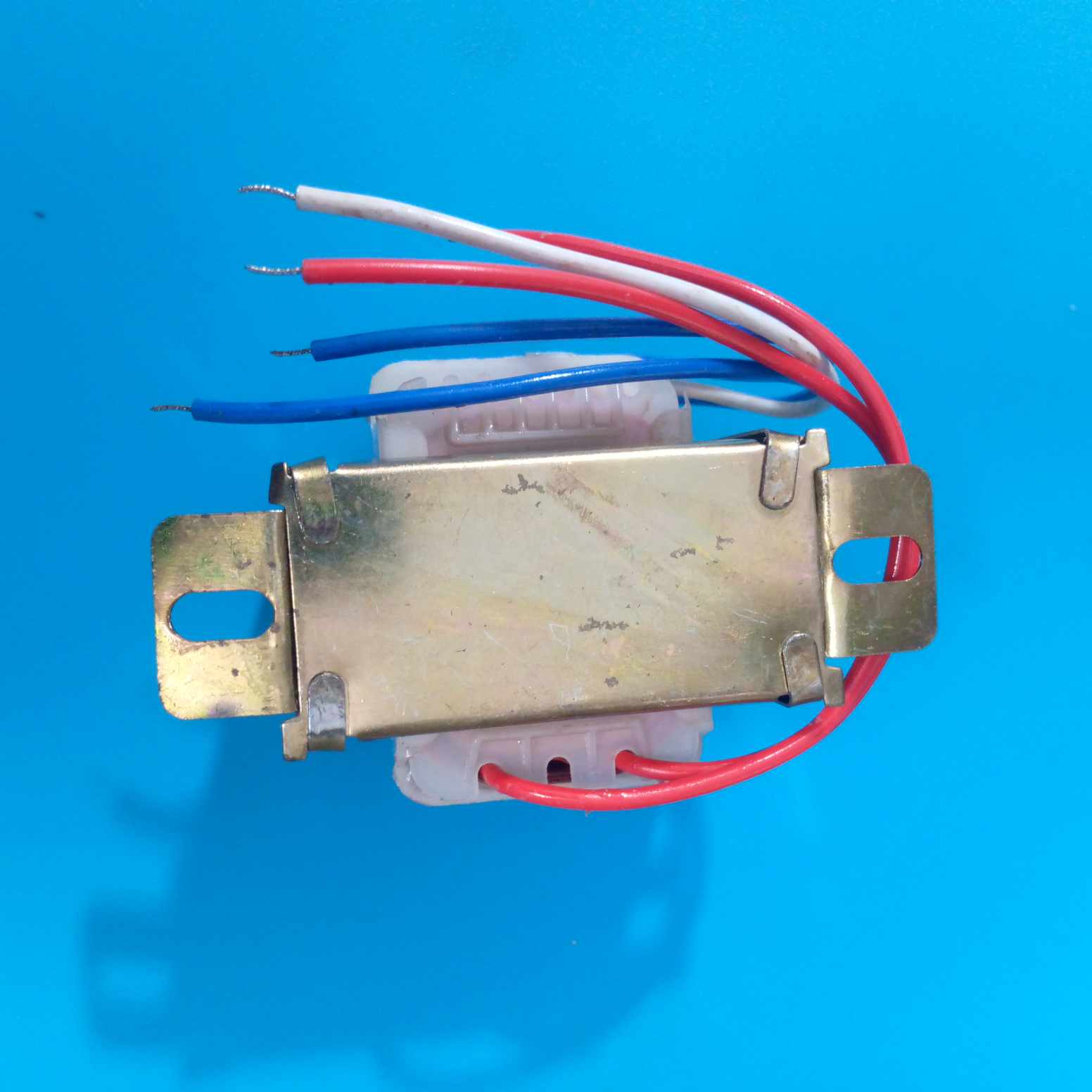

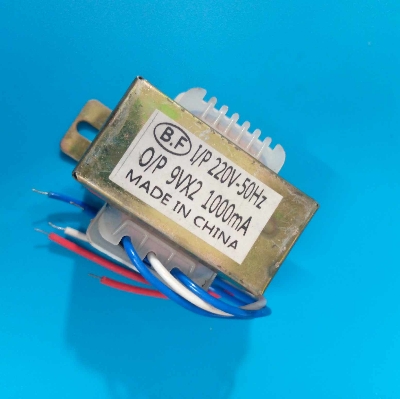

Description: Transformer 9-0-9v 1Amp Input AC 220V Output

9V 1A Transformer 9V 1000mah Transformer Power Supply 9V 1A Charger Adapter 220V To 9V Transformer 9 0 9 1 Amp AC To DC Transformer 9 0 9V Step Down Transformer 9V 1Amp

AC 240 V to DC 9 V 1A. This is a general purpose chassis mounting mains transformer. Transformer has 240 V primary windings and secondary winding. The transformer has flying colored insulated connecting leads .The Transformer act as step down transformer reducing 240 V AC to 9 V DC.

The Transformer gives two outputs of 9V, 9V and 0V. The Transformer’s construction is written below with details of Solid Core and Winding.

The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer’s core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

Features:

• 100% Brand New
• Origin: China
• Primary Voltage:220V
• Secondary Voltage:9V
• Current rating:1A
• Tapping :9V-0V-9V
• Center tapped step-down transformer.
• This is a high quality product.

Applications:

• DIY projects Requiring In-Application High current drain.
• On chassis AC/DC converter.
• Designing a battery Charger.

• 100% Brand New
• Origin: China
• Primary Voltage:220V
• Secondary Voltage:9V
• Current rating:1A
• Tapping :9V-0V-9V
• Center tapped step-down transformer.
• This is a high quality product.
