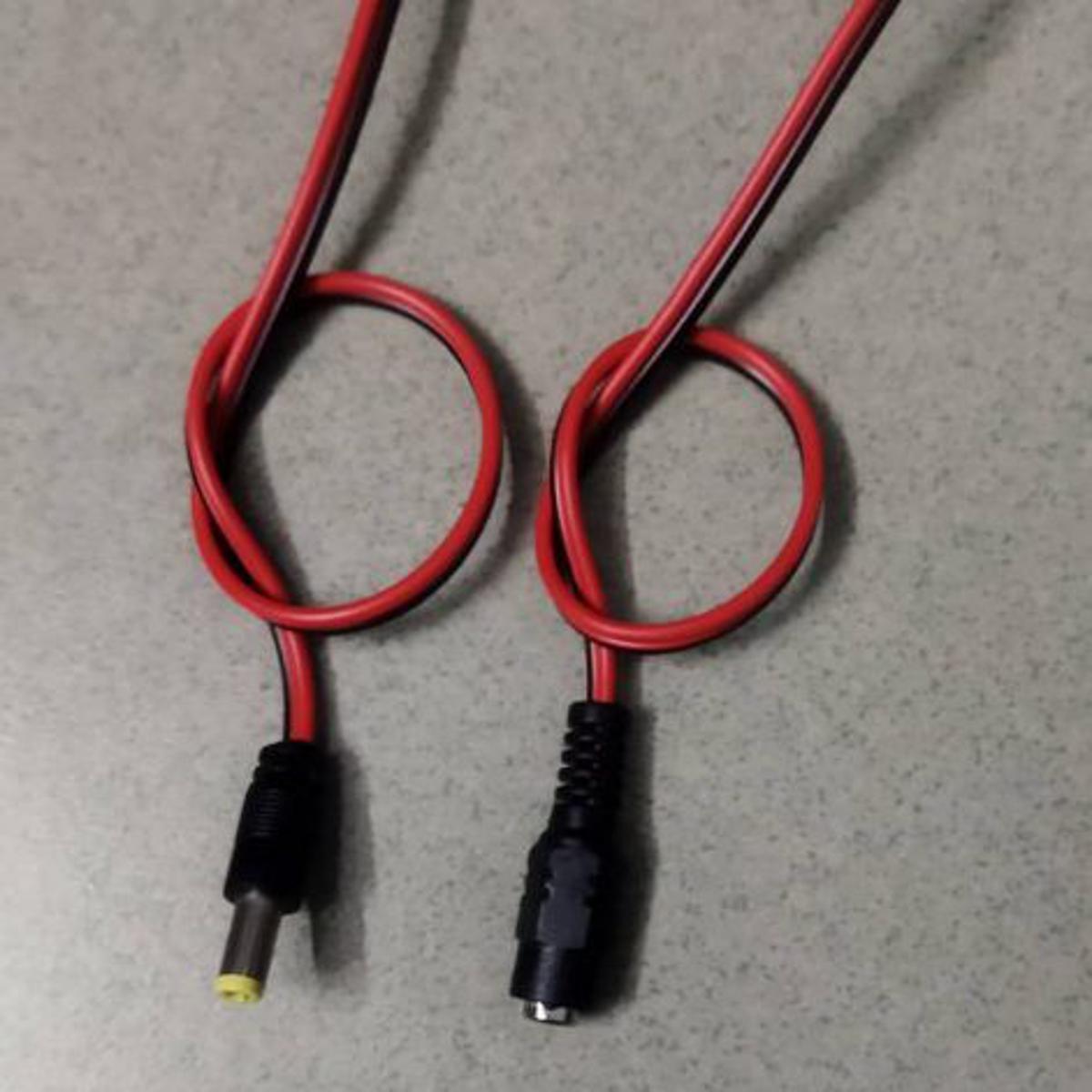

Description: Male Female DC Power Jack And Socket With Cable2.1mm Plug To 2 Pin Screw Terminal 1-Pair Power Supply Barrel Adapters

MALE FEMALE 2 Pin Screw Terminal With BARREL Type 2.1mm Male Female DC Power Jack Socket 5V 12V 24V 5.5×2.1mm Plug To Power Supply Jack Socket Adapters For LED Strip Cables

Male Female DC Power Jack Socket 2.1mm Plug To 2 Pin Screw Terminal 1-Pair Power Supply Barrel Adapter For Led Strip CCTV Security Camera Cable Wire Ends Plug Barrel Adapter

Male:-

This 5.5mm/2.1mm barrel plug (male) to screw terminal will come in very handy if you want a DC power connector that runs off a battery pack or wired power supply. There is a 5.5/2.1mm DC plug on one end, and a screw terminal block on the other. The terminals are labeled with positive/negative assuming a positive-tip configuration (which is the most common). Simply hook up your selected power supply to the terminal points and you have DC power Plug with the output of your choice!

You can then fit a female 2.1mm DC barrel jack to your circuit, motor, breadboards, etc. for easy, variable power application!

Female:-

This 5.5mm/2.1mm barrel plug (female) to screw terminal will come in very handy if you want a DC power connector that runs off a battery pack or wired power supply. There is a 5.5/2.1mm DC plug on one end, and a screw terminal block on the other. The terminals are labeled with positive/negative assuming a positive-tip configuration (which is the most common). Simply hook up your selected power supply to the terminal points and you have DC power Plug with the output of your choice!

You can then fit a male 2.1mm DC barrel jack to your circuit, motor, breadboards, etc. for easy, variable power application!

Specification For Male:

• Male socket Witch Cable
• 5.5mm OD 2.1mm ID Barrel Plug (Male)
• Plug Size: 2.1mm
• Center Pin: 2.1mm
• Outer Diameter: 5.5mm
• Screw Terminals for 16-24awg wire
• Screw Terminal Input allows for Universal Connection to a range of Battery Packs, Power Supplies etc.
• Terminal Labelled Positive/Negative (Assuming Positive Tip Configuration)
• Over All length: 38mm
• Weight: 7gm

Specification For Female :

• Female socket Witch Cable
• 5.5mm OD 2.1mm ID Barrel Plug (Female)
• Plug Size: 2.1mm
• Center Pin: 2.1mm
• Outer Diameter: 5.5mm
• Screw Terminals for 16-24awg wire
• Screw Terminal Input allows for Universal Connection to a range of Battery Packs, Power Supplies etc.
• Terminal Labelled Positive/Negative (Assuming Positive Tip Configuration)
• Over All length: 37mm
• Weight: 8gm

Features:

• Double layer
• great connection for Power, LED, CCTV Camera, Audio & Video
• Easier for camera installation
• Simply & Professional appearance for power cabling
• Reliable connect, good performance
• Each item is tested before shipping and are 100% working

Applications:

• Power supplies for Arduino
• Single Color LED Strip Light
• CCTV Security Camera
• DC or AC Cameras
• Simply & Professional appearance for power cabling.
• Easier for camera installation, save time and more securer cable connection.
• For 5V 12 V 24 V vdc Volt Power Supply CCTV Cable Connection Led Strip Extender Video Security Camera DIY Board
