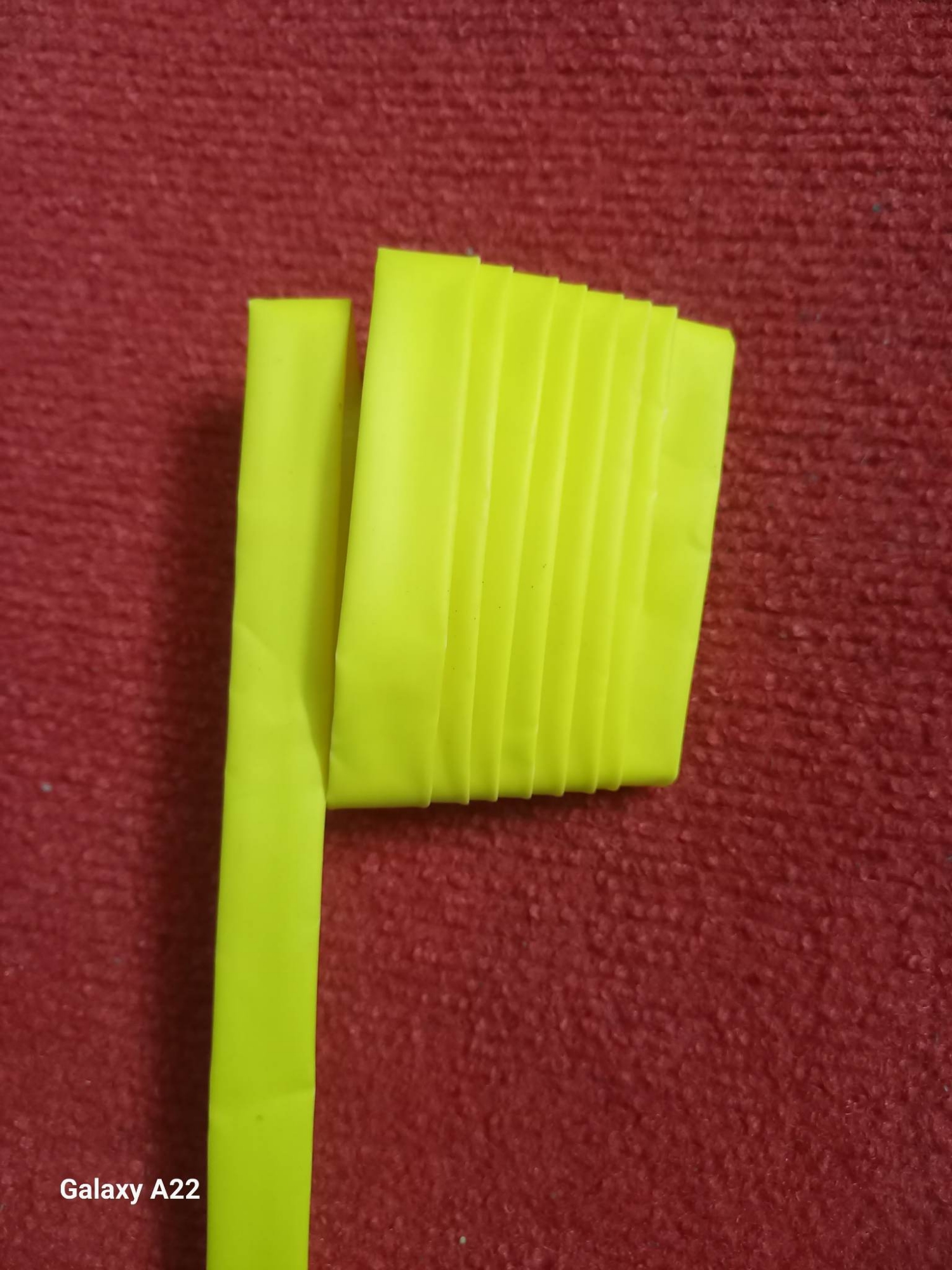

Description: Heat Shrink Tube 10mm Yellow

Great quality Poly-olefin HeatShrink Tube Polyolefin HeatShrink Tube – Top Quality Heat Shrink sleeve Polyolefin are excellent for insulation. Perfect for electrical, electronic, automotive, hobby, electrical insulation, wire bundling, color coding, mechanical protection, wire/cable joints and repairs etc. Good electrical, mechanical and chemical performance. Ideal for Hobbyists and Model Makers, Electrical, Electronic, Automotive and General Purpose uses.

Specification:

• 1. Diameter: 10mm,
• 2. Color: – Yellow
• 3. Material: – Polyolefin
• 4. Shrinkage Ratio: 2:1 (will shrink to 1/2 its supplied diameter)
• 5. Minimum Shrinkage Temp: +70¡ãC
• 6. Full Shrinkage Temp: +110 deg C
• 7. Maximum Operating Temperature: -55degC to +125degC
• 8. Tensile strength: 10.4 Mpa
• 9. Dielectric strength: 20 kv/mm.

How to use a Heat Shrink Tube?

• 1.Take a Heat Shrink Tube with diameter slightly larger than Cut it according to the required length.
• 2. Use a heat source to heat up the tube for 10-20 seconds.
• 3. You will notice the Heat Shrink tube shrinking down and upon completion it will hold the wire firmly. In market, 2 types of HeatShrink Tubes available. Polyolefin HeatShrink Tube 1. Material- Polyolefin 2. Feels like rubber. 3. Does tubes don’t get cracked with time
• 4. Works best for insulation.
• 5. Is being used in military, aerospace and railway industries.

Package Include:

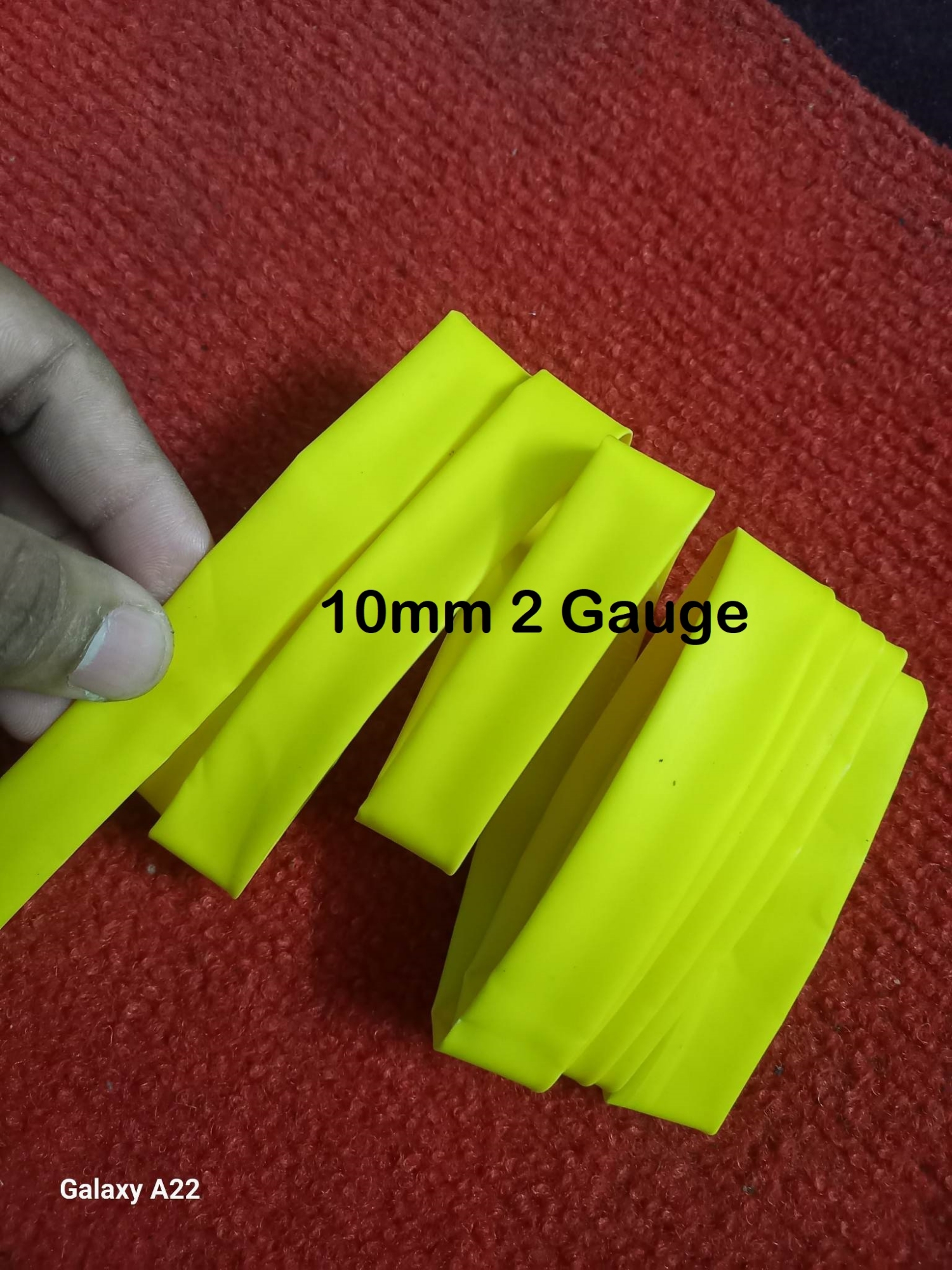

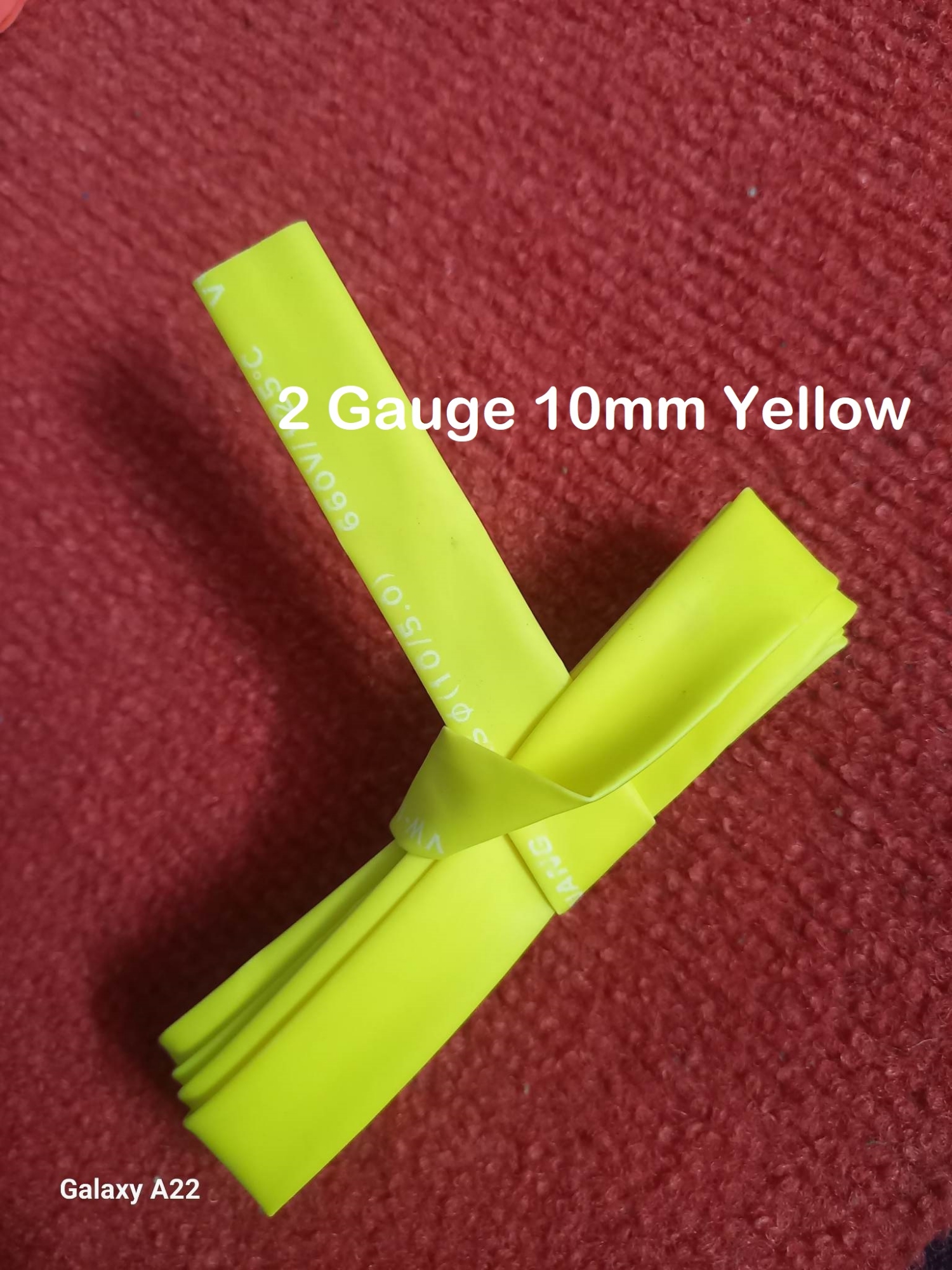

• 1 x Heat Shrink Tube 10mm Yellow 2 Gauge

• 1. Diameter: 10mm,
• 2. Color: – Yellow
• 3. Material: – Polyolefin
• 4. Shrinkage Ratio: 2:1 (will shrink to 1/2 its supplied diameter)
• 5. Minimum Shrinkage Temp: +70¡ãC
• 6. Full Shrinkage Temp: +110 deg C
• 7. Maximum Operating Temperature: -55degC to +125degC
• 8. Tensile strength: 10.4 Mpa
• 9. Dielectric strength: 20 kv/mm.
