200mil SOIC8 SOP8 To DIP8 Programmer Adapter Socket Converter 200mil Wide Chip Wide Body Seat Wide 200mil Programmer Adapters Socket EEPROM Flash 8 Pin SMD Programming Circuit

Descriptions: 8 Pin SMD Programming Adapters

200mil SOIC8 SOP8 To DIP8 Programmer Adapter Socket Converter 200mil Wide Chip Wide Body Seat Wide 200mil Programmer Adapters Socket EEPROM Flash 8 Pin SMD Programming Module EZ Programmer Adapter Socket

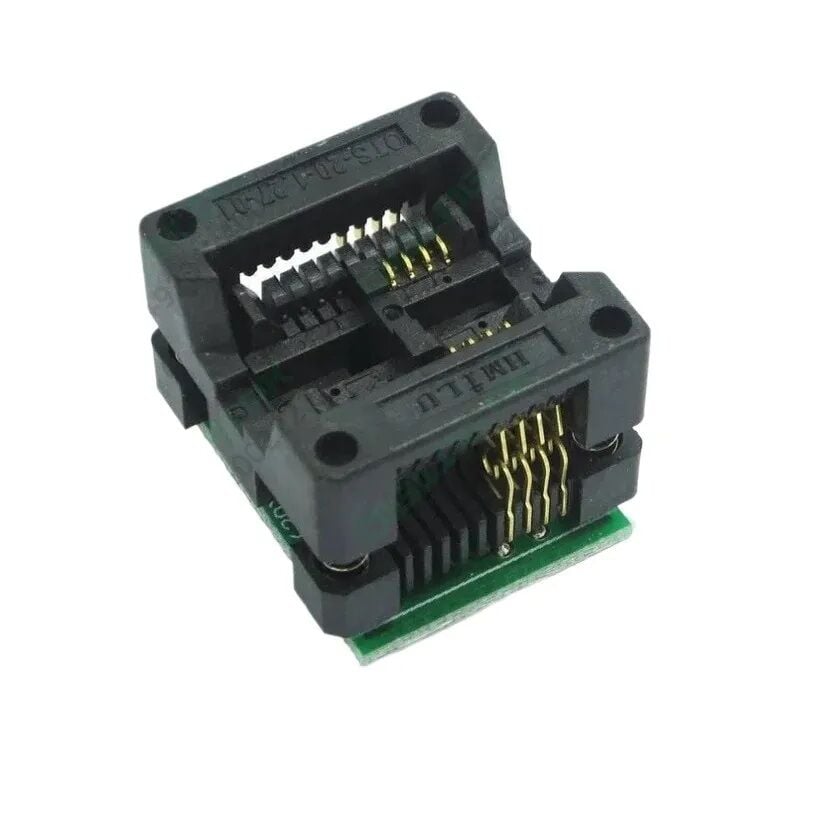

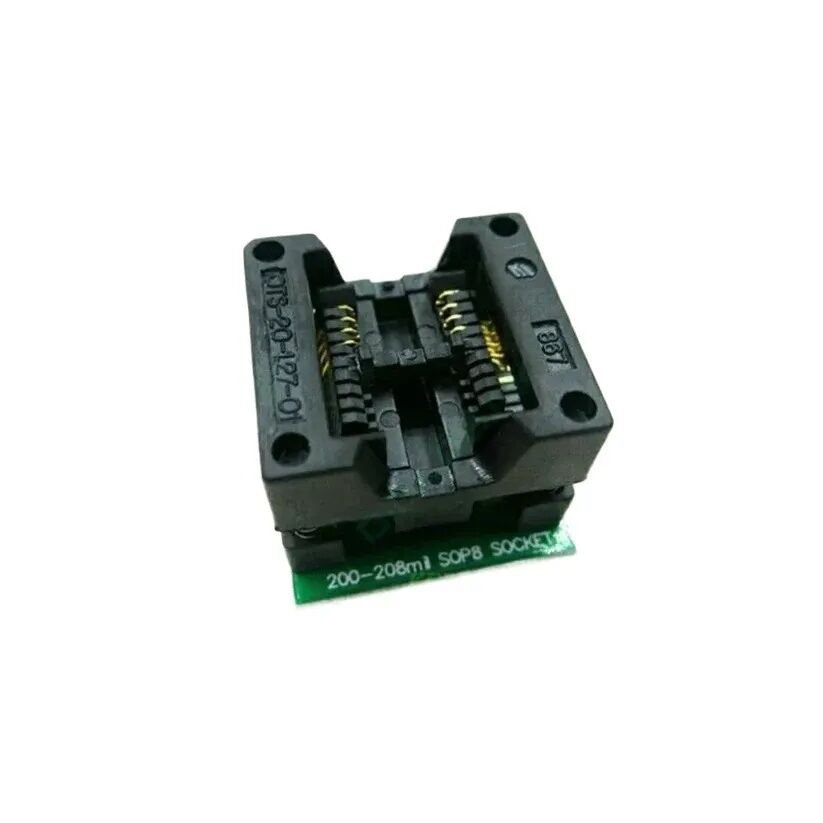

This is SOP8 To DIP8 200mil IC Test and Burn-In Socket. It applies to all the chips of SOP8 that has a wide body. This chip prog socket is brand new and high quality. It is RoHS compliant.

Features:

• Solder to the board: Pin1 to Pin1
• Pitch: 200mil (200-208mil)
• Socket Body: PES, PEI, LCP or equivalent.
• Size: 2.8 x 2.4 x 1.7cm
• SOP8 to DIP8 IC socket adapter 200ml to 209ml IC’s
• Applications: Programmer, test socket, for SOP8 IC chips.
• Package:SOP8/SOIC8/SO8,lead pitch 1.27mm,Chip body width is 5.27mm
• Features:SOP8 to DIP8，baseplate lead to double row DIP 8P,lead pitch 2.54mm(100mil),width 1.52cm(600mil)
• Use for One Pro /Mini Pro / Dream Pro programmer.
• SMD Flash burn
• 8M bits(=1M bytes) or more 25 SPI FLASH series are Wide SOP8 package
• 4M bits(=512k bytes) or less 25 SPI FLASH series are narrow SOP8 package
• 24C02 and 24EEPROM chips are narrow SOP8 package
