Description: Diode 1N4007 1000V 1A General Purpose Rectifier Diode

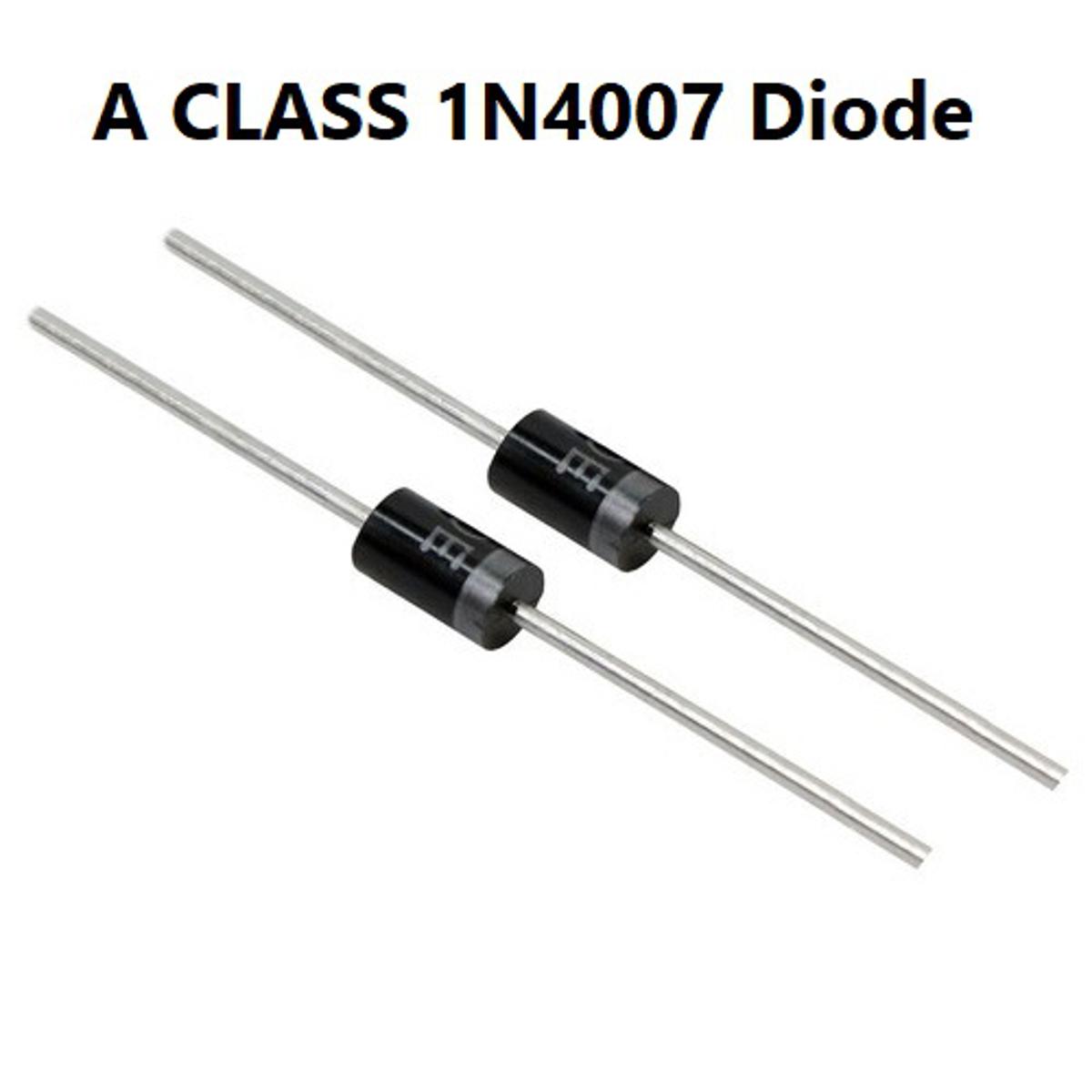

A CLASS 1N4007 Diode 4007 Diode 1000V 1A General Purpose 2 Pin Leads Rectifier Diode Silicon Junction Diode DO-41 Package Diode 1N4007

General purpose diodes are two-terminal electronic components that allow current to flow in only one direction, from an anode (+) to a cathode. These simple semiconductors are PN junctions with a positive or P-region with positive ions and a negative or N-region with negative electrons. Applying a forward voltage to the PN junction causes current to flow in only one direction as electrons from the N-region fill “holes” in the P-region. The diodes reverse voltage is the potential barrier that prevents current to flow in the opposite direction, analogous to a pressure rating on a check valve.
1N4007 is a rectifier diode, designed specifically for circuits that need to convert alternating current to direct current. It can pass currents of up to 1 A, and have peak inverse voltage (PIV) rating of 1,000 V.
Specifications:
Product Name : Rectifier Diodes;
Model : 1N4007
Mounting Type: Through Hole
Color : Black, Silver Tone
Package:DO-41
Maximum Recurrent Peak Reverse Voltage : 1000 V
Maximum Average Forward Output Current : 1 A
Maximum Forward Voltage Drop per element at 1.0A DC : 1.1 V
Operating and Storage Temperature Range : (– 65 to +175 °C)
Weight :0.33 grams
Features:
Low forward voltage drop
Low leakage current
High forward surge capability
Peak Repetitive Reverse Voltage: 1000V
Average Rectified Output Current: 1A
Low Forward Voltage Drop
High Surge Current Capability
Can be used to prevent reverse polarity problem – Half Wave and Full Wave rectifiers – Used as a protection device – Current flow regulators
Applications:
For use in general purpose rectification of power supplies ,inverters, converters and freewheeling diodes application.

• Product Name : Rectifier Diodes;
• Model : 1N4007
• Mounting Type: Through Hole
• Color : Black, Silver Tone
• Package:DO-41
• Maximum Recurrent Peak Reverse Voltage : 1000 V
• Maximum Average Forward Output Current : 1 A
