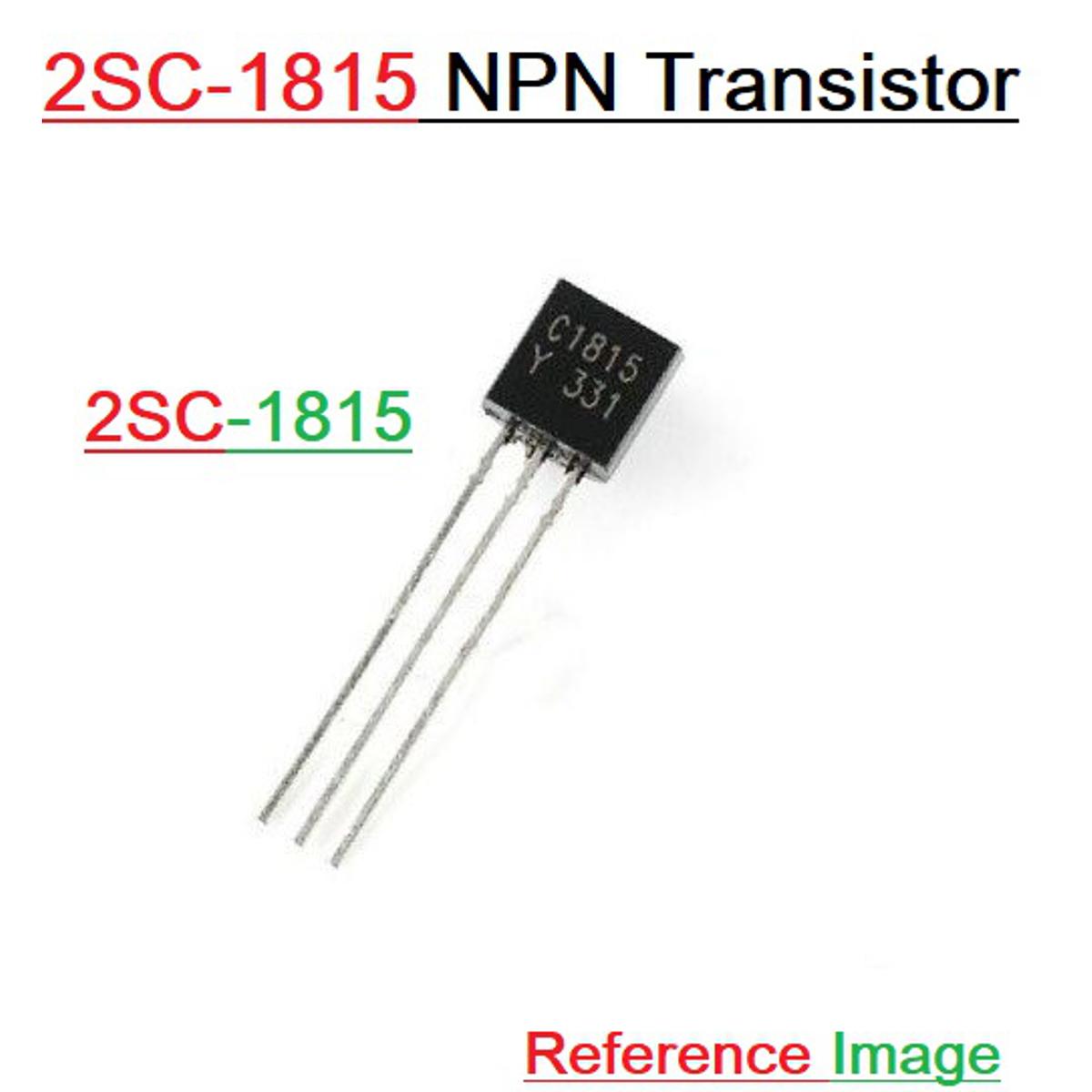

Description: 2SC-1815 NPN General Purpose Transistor

C1815 2SC1815 2S-C1815 2SC 1815 NPN Transistor 50V 0.15A TO-92 Inline Triode Transistor Small Signal Bipolar BJT Transistor 3 Pin Leads

The C1815 is a 50V 150mA general purpose NPN transistor with a maximum gain value of 700. This makes the transistor suitable for amplifier applications.

C1815 Transistor Pinout Configuration

Pin Number Pin Name Description

1 Base Controls the biasing of transistor, Used to turn ON or OFF the transistor

2 Collector Current flows in through collector, normally connected to load

3 Emitter Current Drains out through emitter, normally connected to ground

Features

General Purpose NPN Transistor

DC Current Gain (hFE) 70 to 700

Continuous Collector current (IC) is 0.15A

Collector-Emitter voltage (VCE) is 50V

Collector-Base voltage (VCB) is 60V

Transition Frequency: 80MHz

Available in To-92 Package

Complementary PNP Transistor: 2SC1015

Equivalent NPN Transistor: 2SC2712, 2SC4116, 2SC4738

Characteristics of 2SC1815 Transistor

Type - NPN

Collector-Emitter Voltage: 50 V

Collector-Base Voltage: 60 V

Emitter-Base Voltage: 5 V

Collector Current: 0.15 A

Collector Dissipation - 0.4 W

DC Current Gain (hfe) - 70 to 700

Transition Frequency - 80 MHz

Noise Figure - 1 dB

Operating and Storage Junction Temperature Range -55 to +150 °C

Package - TO-92

Where to use 2SC1815

The C1815 is a general purpose NPN transistor that is commonly used in Amplifier applications. There are four variants, the 2SC1815O will have a gain value of 70 to 140 and the 2SC1815Y will have 1020 to 240, the 2SC1815GR will have 200 to 400 and the 2SC1815L will have a gain range from 350 to 700.

This NPN transistor also has its counterpart PNP transistor the 2SC1015, which makes it ideal for Push-pull and class B amplifier designs. Apart from this the transistor can also be used for switching low power devices.

Applications

General purpose switching

Class B amplifiers

Pre-amplifier circuits

Push-Pull configuration circuits

• Collector-Emitter Volt (Vceo): 50V
• Collector-Base Volt (Vcbo): 60V
• Collector Current (Ic): 0.15A
• hfe: 70-700 @ 2mA
• Power Dissipation (Ptot): 400mW
• Current-Gain-Bandwidth (ftotal): 80MHz
• Type: NPN
