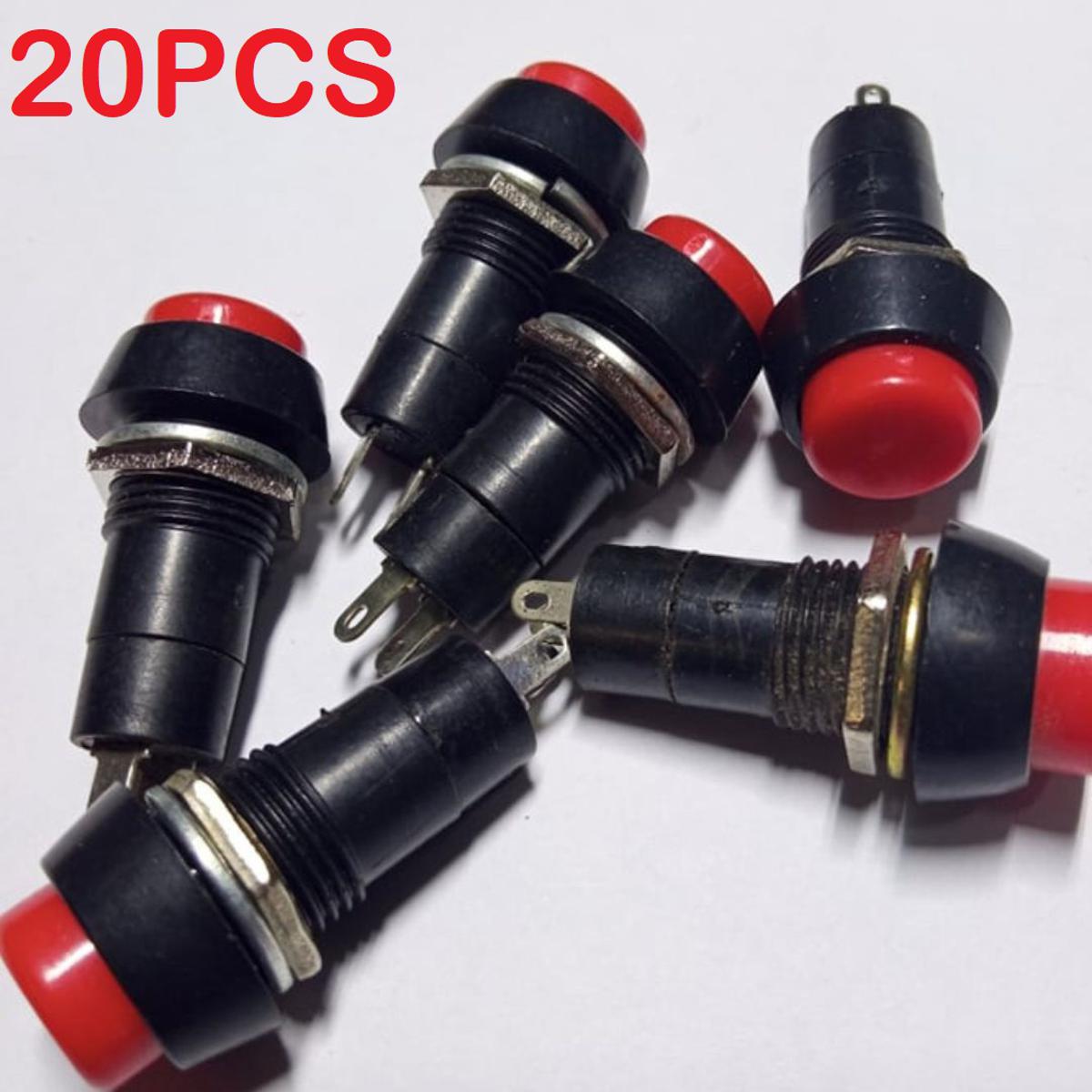

Description: Click Switches Self Lock On/Off 2 Pin Push Button Horn Switch Locking Car, Boat Dashboard

An aesthetically appealing design features single back-of-panel lock-nut fixing and screw clamp terminals for easy mounting and connection.

Specifications:

• Action: NO.
• Fitting: Panel mounting.
• Color: Red And Black
• Operating voltage: AC or DC.
• Frequency: 50~60 Hz.
• Insulated Resistance = 0 Ohms.
• Continual Working Life: 10000 Times.
• Electrical life: 50000 cycles
• Operating temperature range -20 ° C + 85 ° C
• Accessories for PB30 series switches: PB 30 A (washer) + PB 30 T (nut)
• AC contacts rating (at resistance load): 3A/ 250V
• DC contacts rating (at resistance load): 20A/ 12V
• Weight: 5g

Features:

• Type: Momentary Push Button Switch (switch is only “on” when the button is held down)
• Max. contact resistance: 20m
• Contact resistance 50 mΩ max.
• Insulation resistance 100 MΩ min. at 500 V DC
• Dielectric strength 1000 V 50/60 Hz / 1 min.
• Au over Ni contact treatment on bronze

Dimensions:

• Switch front dia: 12 mm.
• Mounting dia: 17 mm.
• Length: 40 mm.

Applications:

• Educational Projects.
• Industrial panels.
• Robot panels.
• Crane panels.
• Crane panels.
• Electrical panels.
• Agriculture instruments.
• And many more applications.
