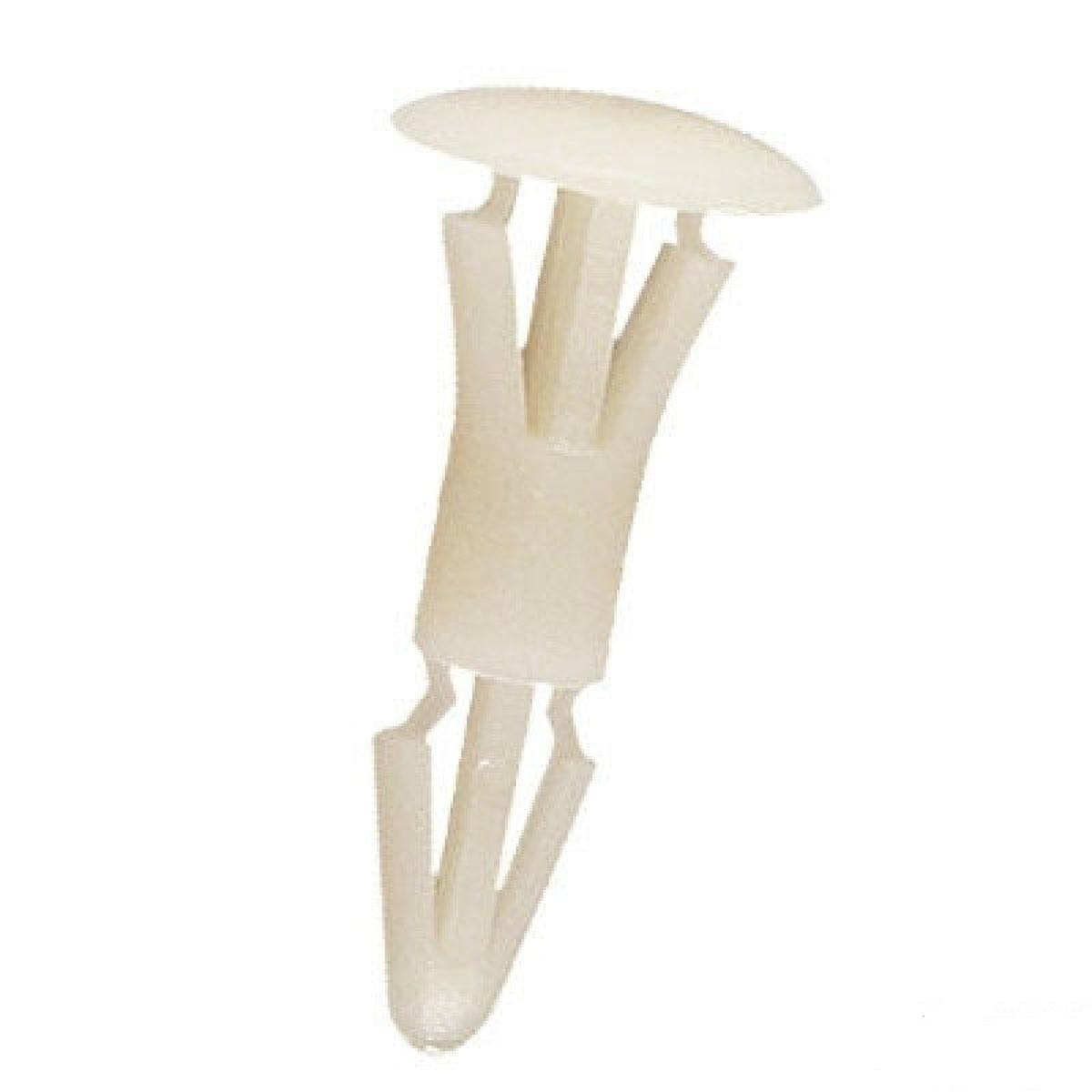

This P.C.B snap lock are used when the P.C.B or boards needs to be often removed, or there is a need to quickly fix or remove the board. They are very easy to use, and they can be fitted on the panel very easily. Aligning and pushing the P.C.B onto the locks will fit it into the locks. And Snap! that is it, the P.C.B would be fixed. This P.C.B Snap Lock Supports are compatible with 0.8 to 1 mm thick panel, and are suitable for 1.6 mm thick P.C.B.

Features:

• 100% Brand New High Quality
• Snap Locks for P.C.B
• Supported P.C.B Thickness: 1.6 mm
• Supported Panel Thickness : 0.8-1.2 mm
• Easy to fix / Remove Boards
• Features Good anti-corrosion ability

Specifications:

• Product Name Plastic P.C.B Spacer
• Material Nylon 66
• Diameter: 10 mm
• Supported Panel Thickness: 0.8 to 1.2 mm
• Supported P.C.B Thickness: 1.6 mm
• Panel Hole Diameter: 6.0 ± 0.08 mm
• P.C.B Hole Diameter: 4.0 ± 0.08 mm
• P.C.B Height from Panel after Mounting: 12 mm
• Total Length: 24mm
• Very easy to use
• Weight: 0.2gm
