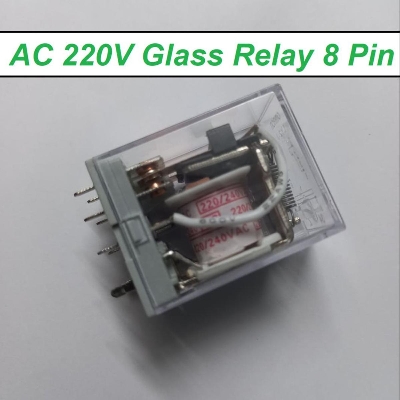

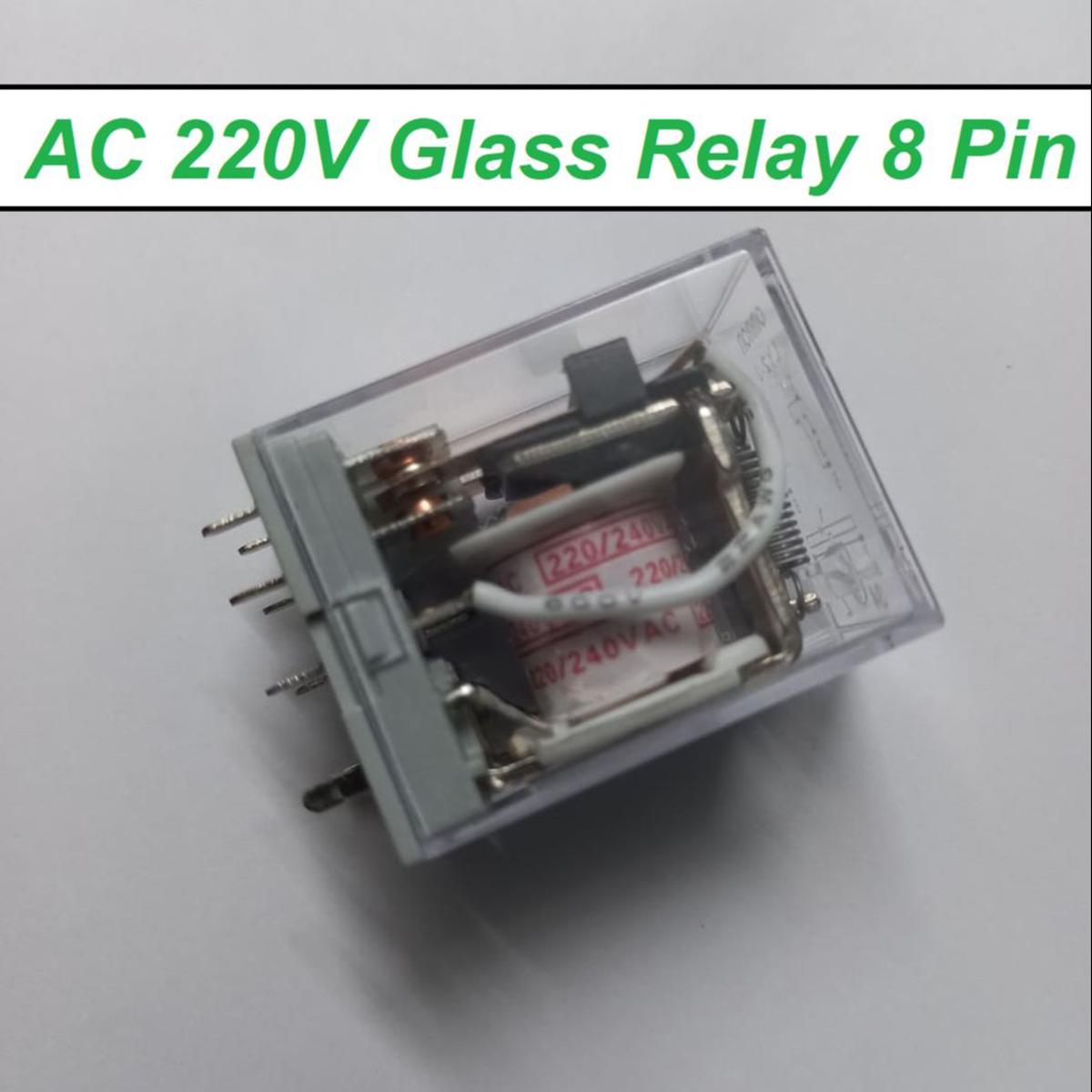

Description: OMRON Thin Pin AC 220V 8 Thin Pin 10A 250VAC Glass Relay LY2 LY2NJ JQX-13F AC 220V Coil Power Relay Electromagnetic Relay 8 Pins DPDT 2NO 2NC AC-220V Relay

Features:

• Product Name : Power Relay
• Material: Electronic Component
• Production: Mini Medium Electromagnetic Relay
• Relay Model No. : LY2/ LY2NJ/ JQX-13F/ Any
• Thin 8 pins 2NO + 2NC
• Current: 10A
• Contacts: Silver Plated Gold
• Coil voltage: AC 220V
• Contact capacity: 10A 250VAC, 10A 28VDC
• Pull-in voltage: ≤80% (V)
• Release voltage: DC: ≥10% (V), AC: ≥30%
• Contact resistance: ≤50 (mΩ)
• Insulation resistance: ≤100 (mΩ)
• Terminals form: Socket
• Action time: 20ms or less
• Reset Time: 20ms or less
• Operating frequency:
• Mechanical 18,000 cycles / hour
• Electrical 18,000 times / hour

Features:

• Thin 8 Pins DPDT general purpose relay with socket base.
• The relay plays the role as a protector or a circuit switch.
• It can protect your electric equipment very well. A relay socket is included here.
• Electromagnetic relay
• High quality copper materials, safe and stable.
• Built-in LED indicator, with socket base.
• Transparent flame resistant shell, durable and reliable.
• Silver-gilt contact, good electrical conductivity .
• Widely used in automatic adjustment of circuit, safety protection, switching circuit and so on.
