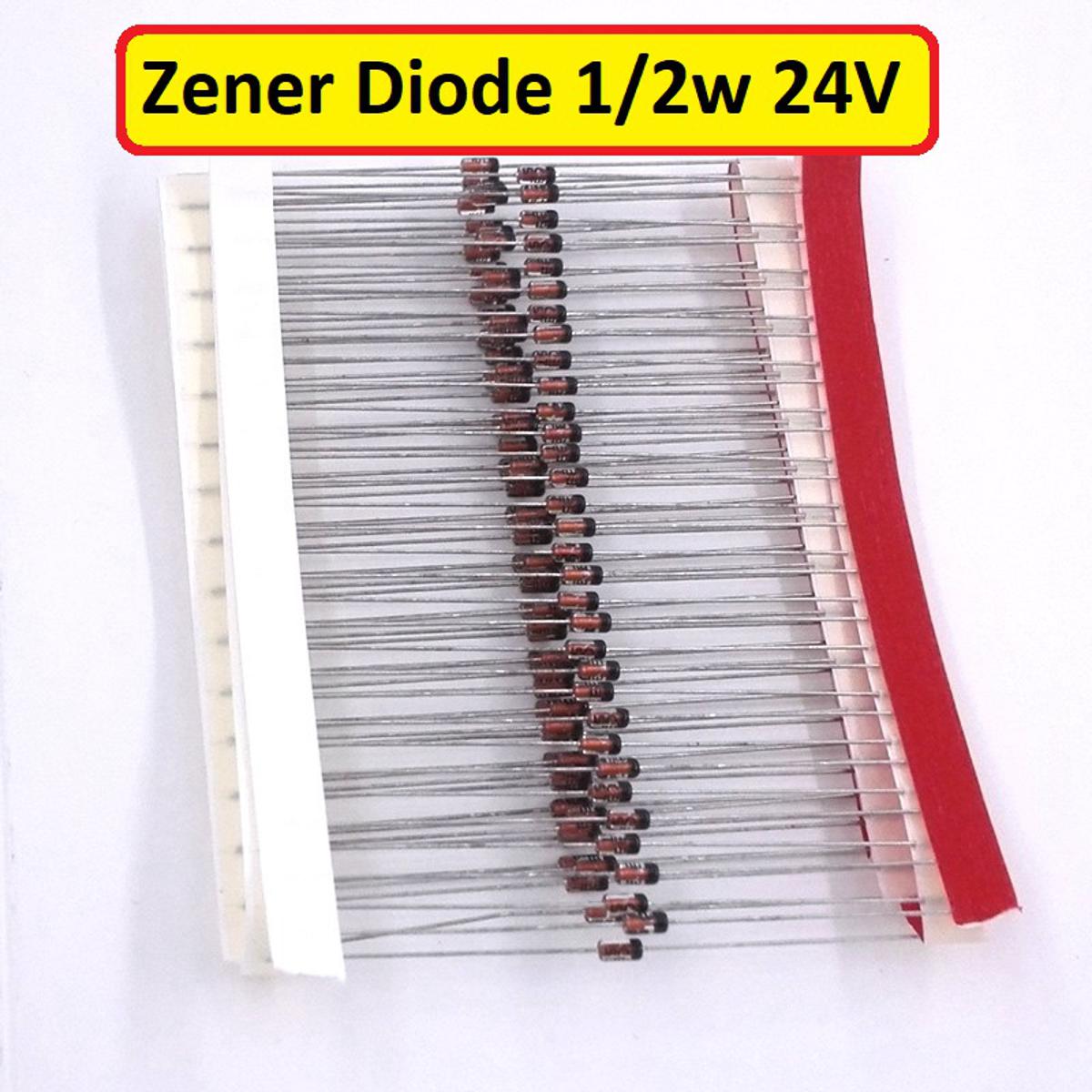

Description: 24V 500mW Zener Diodes

The zener diode is a sharply break down voltage diode which allows current to flow in the forward direction in the same manner as an ideal diode, but also permits it to flow in the reverse direction when the voltage is above a certain value known as the breakdown voltage.

Features:

• Nominal Zener Voltage (Vz): 24V.
• Max. Regulator Current (Izm): 0.055A.
• Max. Reverse Leakage Current (Ir): 3µA.
• Forward Voltage Drop (Vf): 1.1V.
• Total Power Dissipation (Ptot): 500Mw.

Applications:

• It is used as a voltage regulator.

• Origin: China
• Category: Diode
• Type: Zener Diodes
• Mounting Type: Through Hole
• Housing: DO-35
• Zener Voltage 24V
• Power: Max 500mW.
• Zener Current Iz (Max): 55mA.
• Tolerance B series: ±5%.
• Max. Reverse Leakage Current (Ir): 3µA.
• Forward Voltage Drop (Vf): 1.1V.
