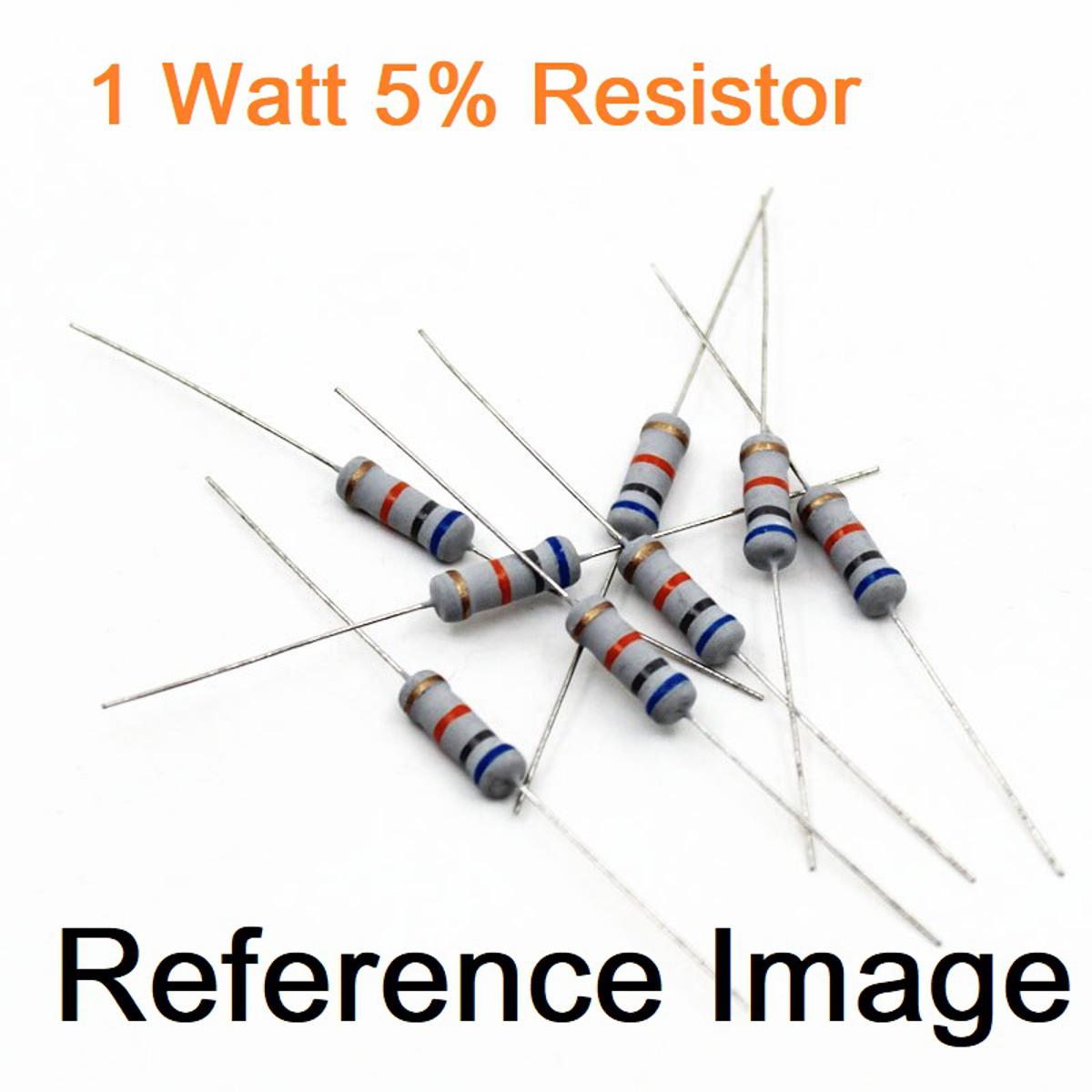

Description: 1W Carbon Film Resistor 150 Ohm 5%

Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.

The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.

The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.

Noted: Different Resistance on this listing, please check what you need correctly before purchasing.

Specification:

Rated Power:1 W;

Maximum working voltage:350V;

Maximum overload voltage:600V;

Maximum pulse voltage:750V;

Dielectric withstanding voltage:350V

Operating temperature range:-55℃～155℃;

Resistance Values (Ohm):150;

Resistance Tolerance (%):5%;

Packaging:Axial;

Body Size:4.0±0.5 mm x 11.0±1.0 mm;

Total Length:60+/-15mm;

• Rated Power:1 W;
• Total Length:60+/-15mm;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Packaging:Axial;
• Resistance Tolerance (%):5%;
• Resistance Values (Ohm):150;
• Dielectric withstanding voltage:350V
• Maximum pulse voltage:750V;
• Maximum overload voltage:600V;
• Maximum working voltage:350V;
