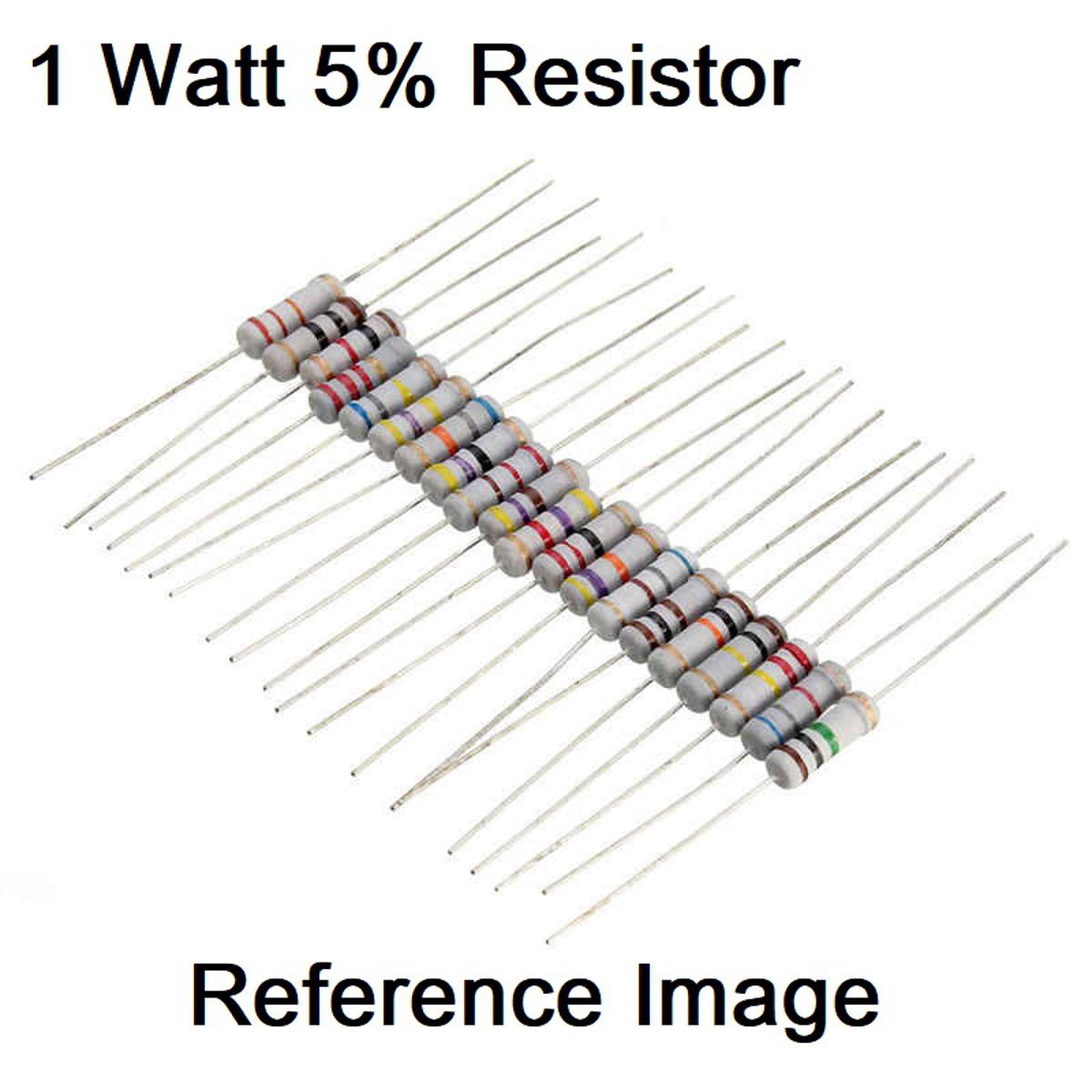

Description: 1W Carbon Film Resistor 1M Ohm 5%

• Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.
• The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.
• The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.

Noted: Different Resistance on this listing, please check what you need correctly before purchasing.

Specification:

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Operating temperature range:-55℃～155℃;
• Resistance Values (Ohm):1 M;
• Resistance Tolerance (%):5%;
• Packaging:Axial;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:60+/-15mm;

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Resistance Values (Ohm):1 M;
• Resistance Tolerance (%):5%;
• Packaging: Axial;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:60+/-15mm;
