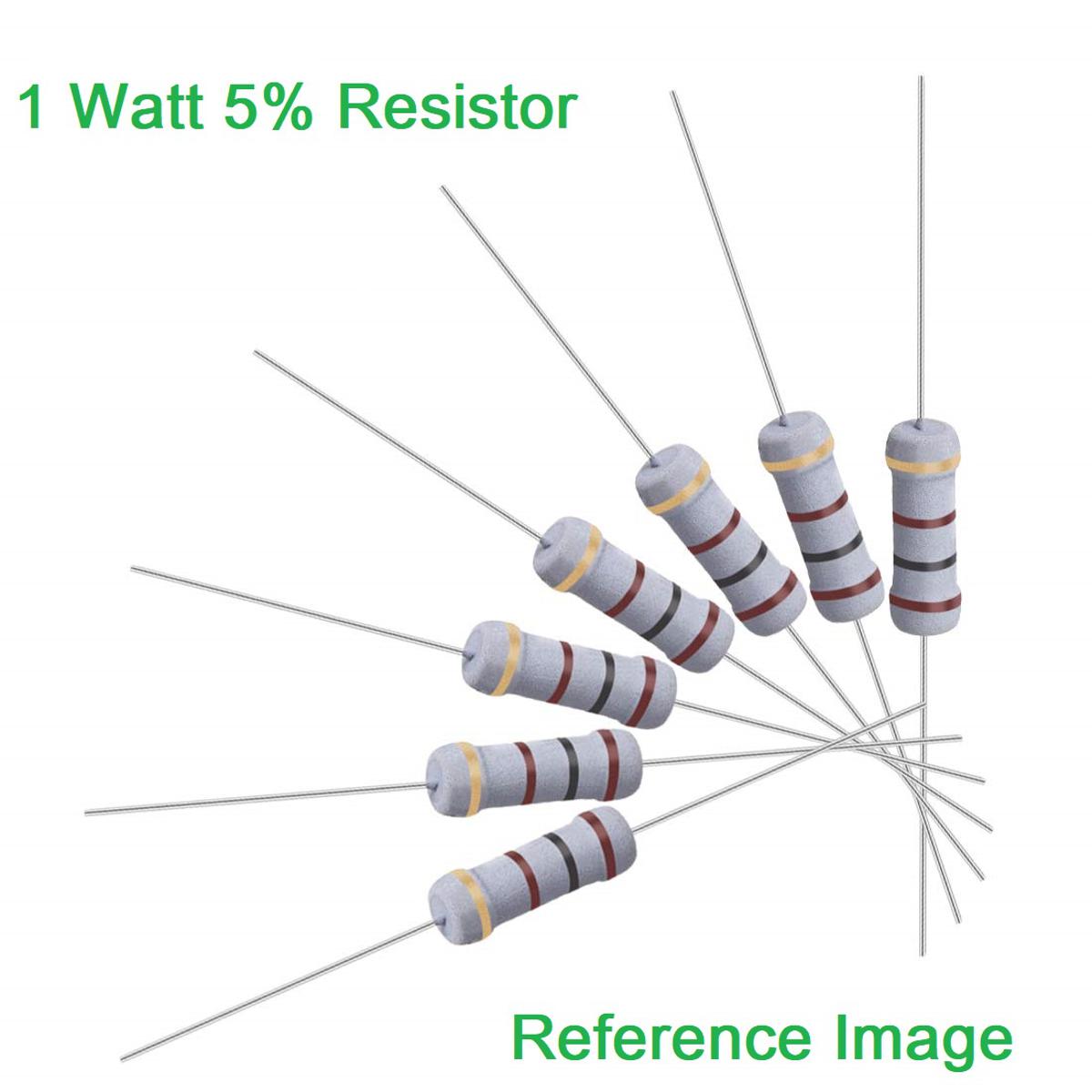

Description: Metal Film Resistor 2.2 Ohm 1 Watt 5%

1Watt 2.2 Ohm Resistor 1W 2.2 Ohm Metal Film Resistor 2.2 Ohm 1 Watt Metal Oxide Film Resistor Axial Leads 2.2 Ohm ±5% Tolerance 2 Pin Leads Terminals

A resistor is a passive two-terminal electrical component that implements electrical resistance as a circuit element. In electronic circuits, resistors are used to reduce current flow, adjust signal levels, to divide voltages, bias active elements, and terminate transmission lines, among other uses.

Features:

Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.

The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.

The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.

Durable and easy to install

Very convenient and practical

High precision and stability

Automatic insertion is applicable

Very popular among the electronic lovers

Many type of Metal oxide film resistors assorted, can meet your different demand.

Noted: Different Resistance on this listing, please check what you need correctly before purchasing.

Specification:

Rated Power:1 W;

Maximum working voltage:350V;

Maximum overload voltage:600V;

Maximum pulse voltage:750V;

Dielectric withstanding voltage:350V

Operating temperature range:-55℃～155℃;

Resistance Values (Ohm): 2.2;

Resistance Tolerance (%):5%;

Packaging: Axial;

Body size: 3.6mm X 10.6mm

Lead Diameter: 0.40mm

Lead Length: 25mm

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Resistance Values (Ohm): 2.2;
• Packaging: Axial;
• Body size:  3.6mm X 10.6mm
• Lead Diameter:  0.40mm
• Lead Length:  25mm
