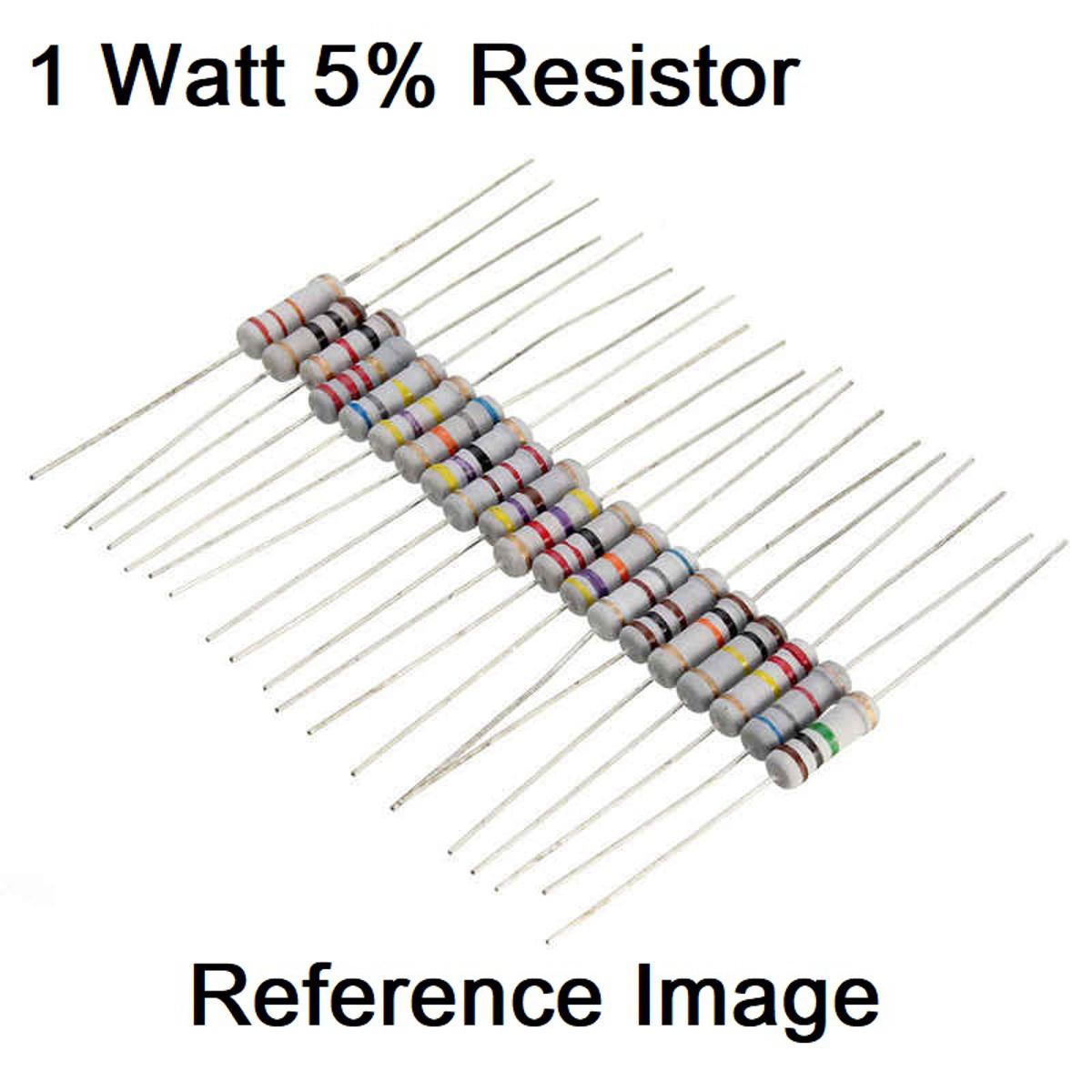

Description: Metal Film Resistor 390 Ohm 1 Watt 5%

• Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.
• The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.
• The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.
• Noted: Different Resistance on this listing, please check what you need correctly before purchasing.

Specification:

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Operating temperature range:-55℃～155℃;
• Resistance Values (Ohm):390;
• Resistance Tolerance (%):5%;
• Packaging:Axial;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:60+/-15mm;

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Resistance Values (Ohm):390
• Resistance Tolerance (%):5%;
• Packaging:Axial;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:60+/-15mm;
