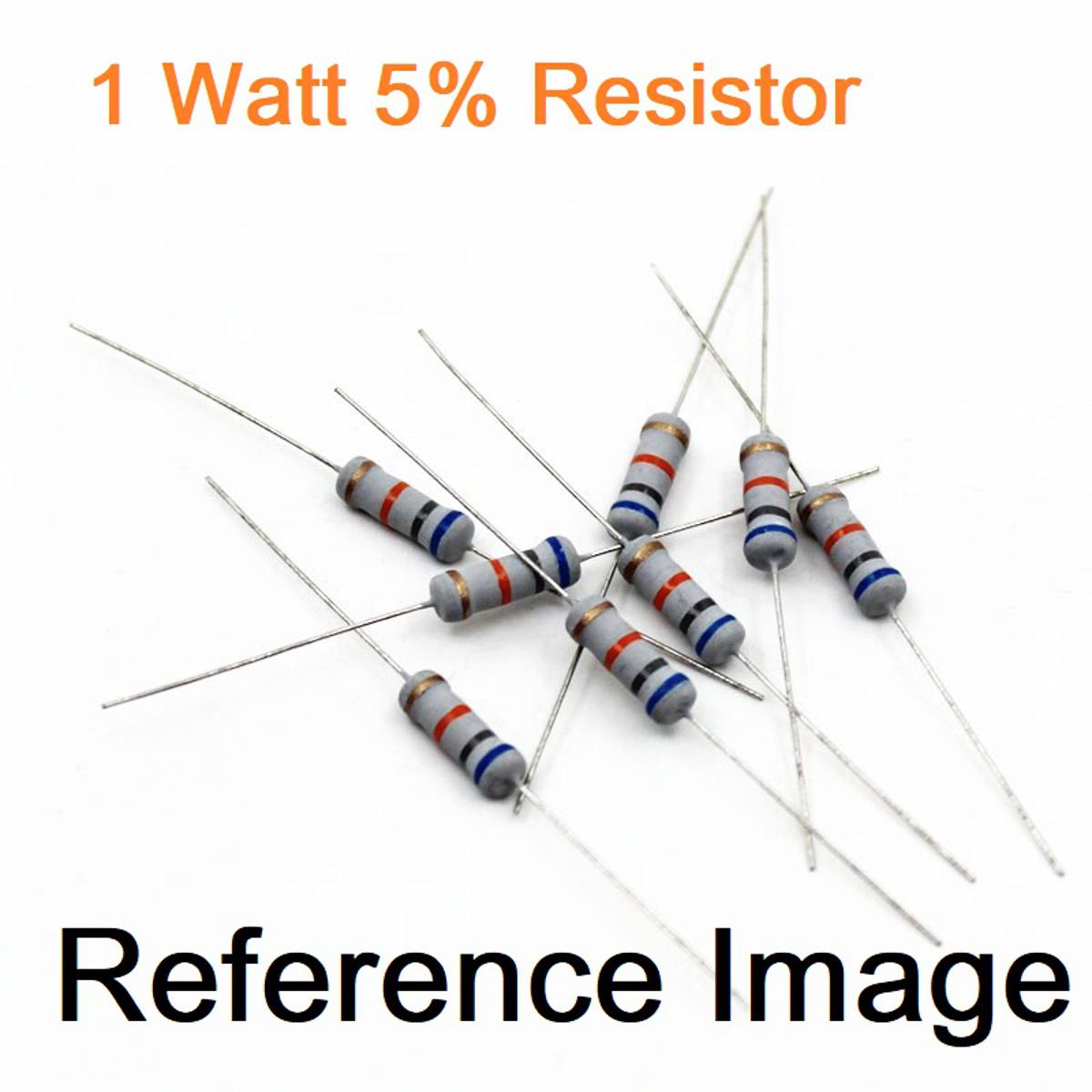

Description: 1W Carbon Film Resistor 8.2 Ohm 5%

Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: operate at higher temperatures; produce low noise; small size; high stability; high reliability.The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.Noted:Different Resistance on this listing, please check what you need correctly before purchasing.

Specification:

Rated Power:1 W;Maximum working voltage:350V;Maximum overload voltage:600V;Maximum pulse voltage:750V;Dielectric withstanding voltage:350VOperating temperature range:-55℃～155℃;Resistance Values (Ohm):8.2ohm;Resistance Tolerance (%):5%;Packaging:Axial;Body Size:4.0±0.5 mm x 11.0±1.0 mm;Total Length:60+/-15mm;

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Resistance Values (Ohm):8.2 Ohm;
• Resistance Tolerance (%):5%;
• Packaging:Axial;
• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:60+/-15mm;
