25Pcs- 473j 100V Mylar 2A473j 100V Polyester Film Capacitor Metallized 47nF Polypropylene Capacitor Electrical Circuitry & Parts

Category: Building Materials
SKU: UDBD05035
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 61
Tk 72
Tk 72
15% OFF
0 review(s)
  • Product Name : Metallized Polyester Film Capacitor;
  • Rated Voltage : 100V;
  • Operating Temperature: -40°C ~ +85°C
  • Capacitance :473J
  • Capacitance Tolerance : +/-5%
  • ;Lead Spacing : 15mm/0.6″
  • Lead Diameter : 0.7mm/0.03″;
  • Total Size(Exclude Lead) : 17 x 13x 7mm/0.67″ x 0.51″ x 0.28″(L*W*T)
  • Weight : 18g;

Call For Order : 09613-800800

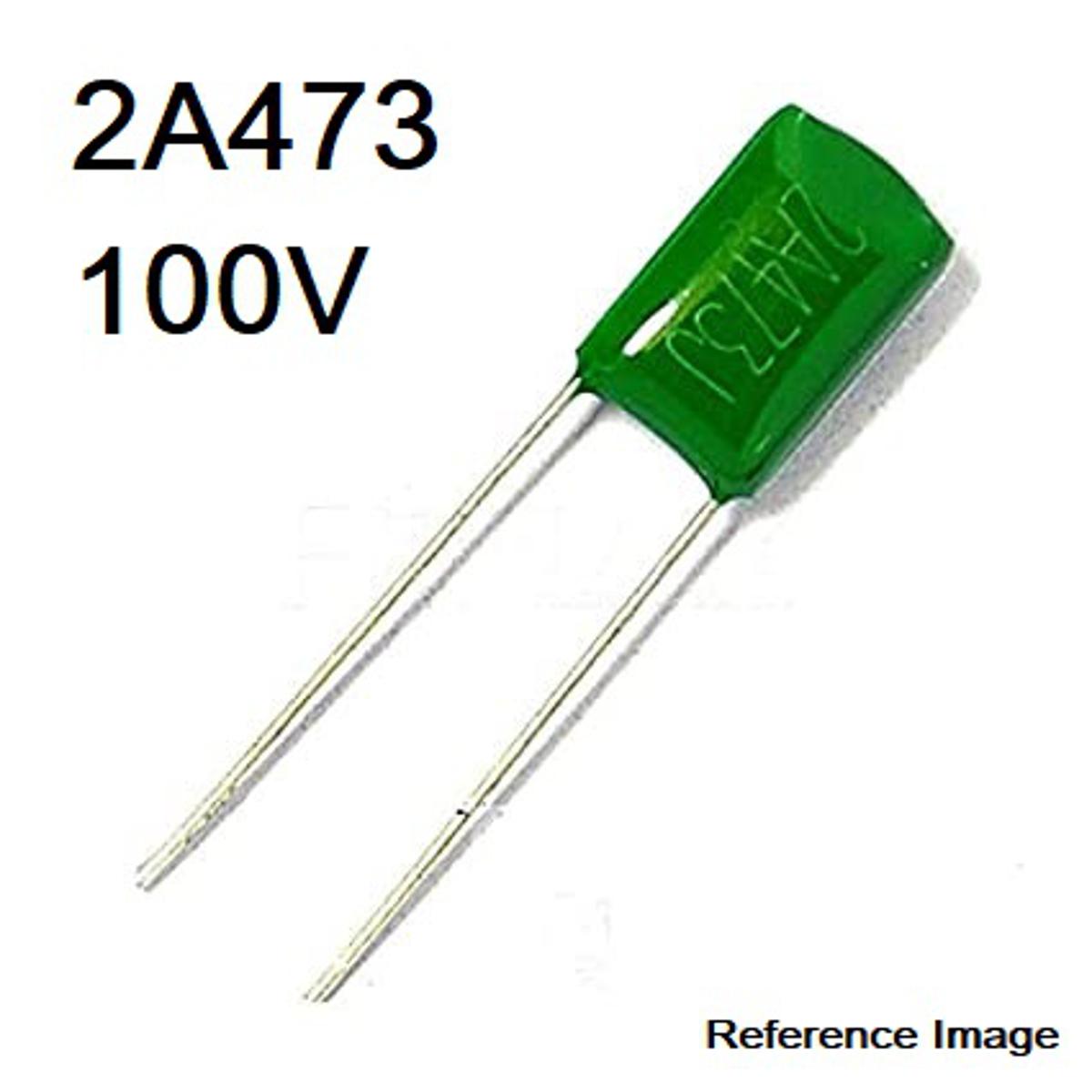

Description: Mylar 2A473j 100V Polyester Film Capacitor Metallized 47nF Polypropylene Capacitor

Polyester film capacitor s are smaller in size than functionally comparable polypropylene film capacitors. This is High precision and stability capacitors for electronic professionals or enthusiasts. Applies to pulse circuits, widely used in a variety of electrical equipment, electrical and electronic filtering, blocking, bypass, coupling, and noise reduction and other occasions.

The MLR series is a range of radial lead, non−inductive,non−polarized polyester film (Mylar) capacitors dipped in ahard epoxy coating material to provide excellent protectionagainst moisture. These devices are intended for generalpurpose DC applications.

General Specifications:

  • Type : Mylar Capacitors
  • Color: Grass green
  • Application: General Purpose
  • Capacitance:47nF 2A473j
  • Rated Voltage:100V
  • Capacitance Tolerance: ±5%(J)
  • Temperature Range: -25 To 85°C
  • Rated Freq(HZ): 60HZ

Features:

  • Small size, light weight and low cost.
  • Dissipation factor is small because the leads are directly welded to electrodes
  • High stability and reliability
  • Epoxy resin vacuum-dipped enhances the mechanical strength and humidity resistance
  • Widely used in DC and pulsating circuits of radio, TV sets and various electronic equipment.
  • Polyester film, inductive, epoxy resin coating;
  • Small size, light weight and low cost;
  • High stability and reliability;
  • Dissipation factor is small because the leads are directly welded to electrodes.
  • RoHS Compliant.
  • Suitable for industrial equipment, inverter DC circuits, etc

Application:

  • Recommended for high-frequency circuits like S-curve compensating circuit.
  • Widely used in high frequency, DC, AC and pulse circuits.






  • Product Name : Metallized Polyester Film Capacitor;
  • Rated Voltage : 100V;
  • Operating Temperature: -40°C ~ +85°C
  • Capacitance :473J
  • Capacitance Tolerance : +/-5%
  • ;Lead Spacing : 15mm/0.6″
  • Lead Diameter : 0.7mm/0.03″;
  • Total Size(Exclude Lead) : 17 x 13x 7mm/0.67″ x 0.51″ x 0.28″(L*W*T)
  • Weight : 18g;
