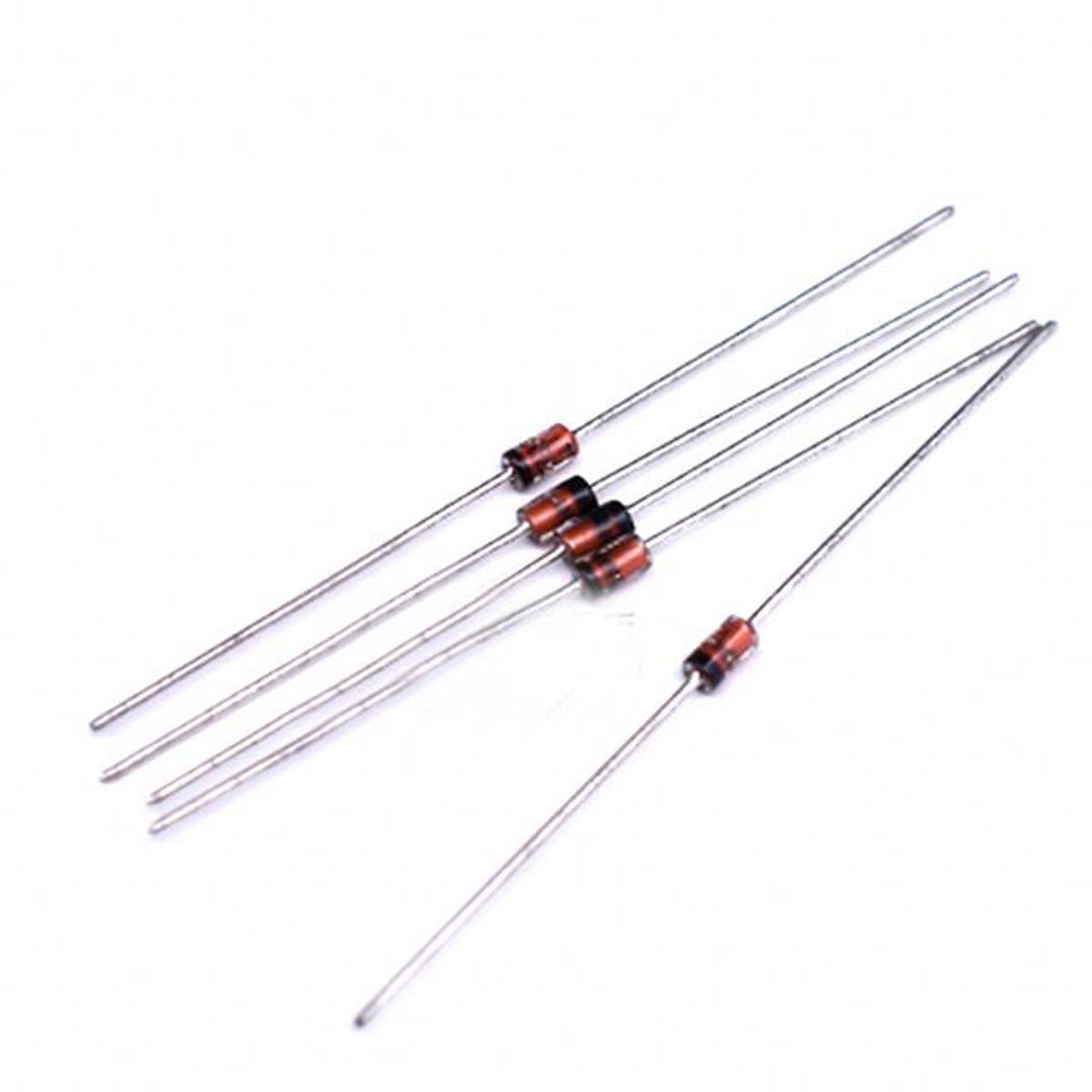

Description: Zener Diode 0.5W 1/2w 3.3V 1N5226 Through Hole Voltage Regulator Zener Diodes DO-35 DIP

500mW 3.3V 1/2Watt Zener Diodes 0.5W 1/2W 3.3V 1N5226 Through Hole Voltage Regulator Zener Diodes DO-35 DIP 3 Pin Leads

A Zener diode is a special kind of diode which allows current to flow in the forward direction like a regular diode, but also allows it to flow in the reverse direction when the voltage is above a certain value. This is known as the ‘breakdown voltage’. That means you apply voltage across them, and when a preset voltage is reached, they start conducting. A common analogy is a ‘pressure relief valve’. They have lots of uses, especially in safety circuits where you want to make sure a voltage signal doesn’t exceed a limit that might damage the circuit.

Feature:

This Zener diode is set at 3.3V , making it ideal for protecting the inputs of a 3.3V circuit.

Zener diodes are often used to stabilize and clip circuits.

The Zener Diode is a 3.3V Zener Diode, meaning it has a breakdown voltage of 3.3V .

Specifications:

Origin: China

Category: Diode

Type: Zener Diodes

Mounting Type: Through Hole

Housing: DO-35

Zener Voltage 3.3V

Power: Max 500mW.

Zener Current Iz (Max): 55mA.

Tolerance B series: ±5%.

Max. Reverse Leakage Current (Ir): 3µA.

Forward Voltage Drop (Vf): 1.1V.
