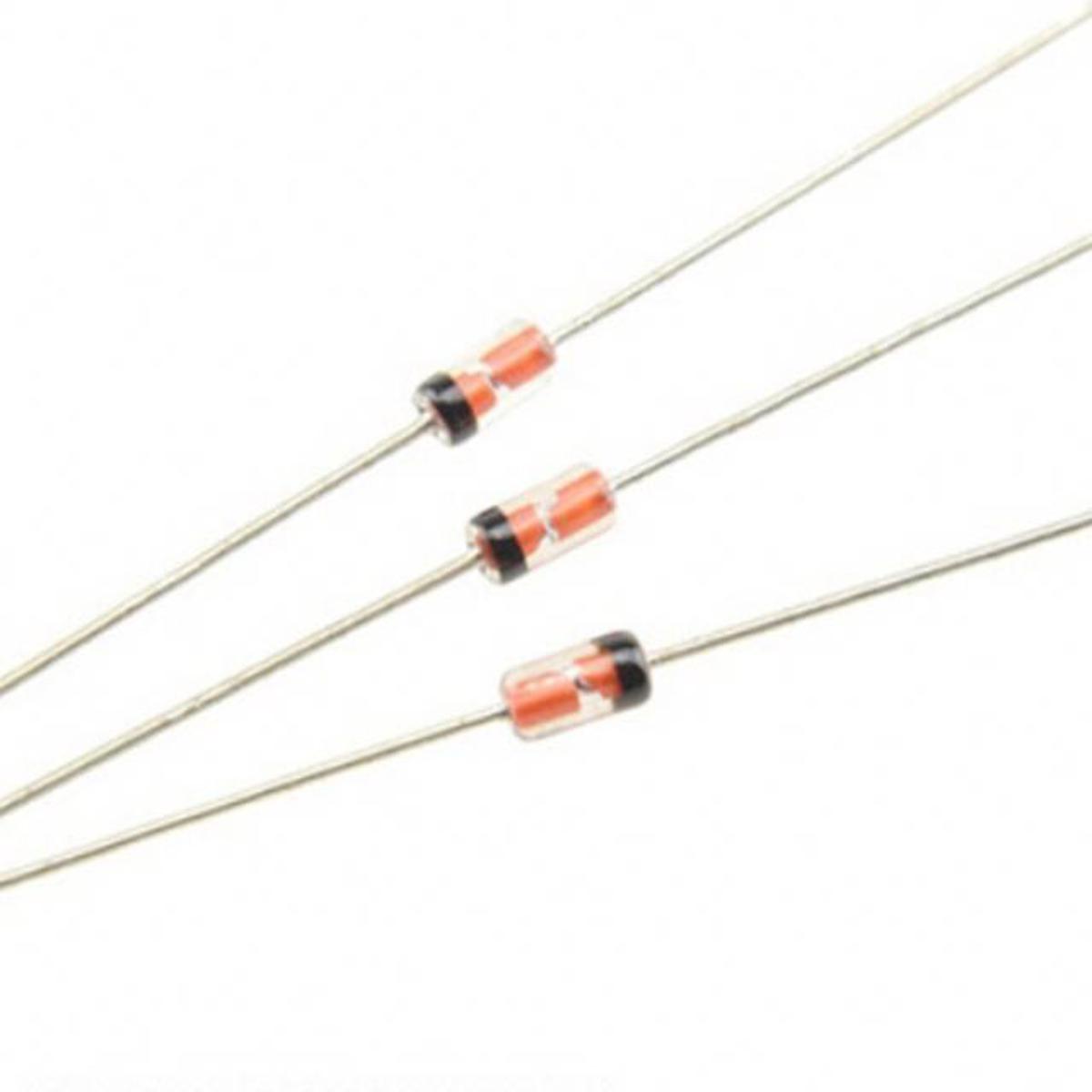

Description: Zener Diode 1N4148 500mW-50Pcs

General purpose diodes are two-terminal electronic components that allow current to flow in only one direction, from an anode (+) to a cathode. These simple semiconductors are PN junctions with a positive or P-region with positive ions and a negative or N-region with negative electrons. Applying a forward voltage to the PN junction causes current to flow in only one direction as electrons from the N-region fill “holes” in the P-region. The diodes reverse voltage is the potential barrier that prevents current to flow in the opposite direction, analogous to a pressure rating on a check valve.

Features:

• Peak Repet. Reverse Voltage (Vrrm): 75V
• Max. RMS Reverse Voltage (Vr): 75V
• Average Rectified Current (Io): 0.2A
• Max. Reverse Current (Ir): 0.025mA
• Max. Forward Voltage Drop (Vf): 1.0V
• Total Power Dissipation (Ptot): 500mW

Package Include:

• 1 x Zener Diode 1N4148 500mW-50Pcs

• Peak Repet. Reverse Voltage (Vrrm): 75V
• Max. RMS Reverse Voltage (Vr): 75V
• Average Rectified Current (Io): 0.2A
• Max. Reverse Current (Ir): 0.025mA
• Max. Forward Voltage Drop (Vf): 1.0V
• Total Power Dissipation (Ptot): 500mW
