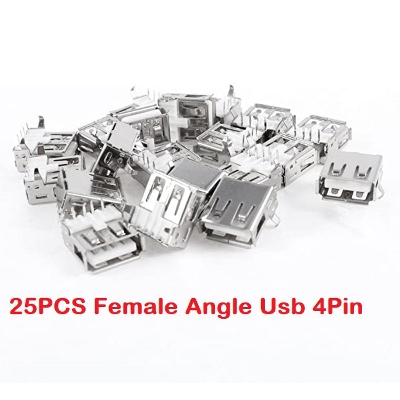

Description: Female USB 2.0 Angle Or Straight Socket Type-A 4 Pin Female Plug DIP Socket Connector Panel Mount For Data Cable Charging Socket LED Electronics Projects DIY

Its the USB Type ‘A’ male SMD connector for to use with any P.C.B that will be used with a Type A to Type A USB cable. Male USB 2.0 Jack Type-A Male SMT Plug DIP Socket Connector Panel Mount For Data Cable Charging Jack DIY

This is USB Type A 4-Pin Female Connector Socket. It is used for desktop PCs, peripherals, keyboards, mouse, digital consumer electronics and telephony-ISDN, PBXs, Cell phones, PDAs, MP3 Players, Other portable and hand-held devices.

Specifications:

• Material: Plastic, Metal;
• Color: Silver Tone, White
• Product name: Female USB Connector
• Rating DC 30V 0.2A
• Insulation resistance ≥1000MΩ min. 500V DC
• Dielectric strength 250V AC for 1min
• Contact resistance ≤50mΩ
• Operating temp. range -30ºC ~ +70ºC
• Lifetime 5000 cycles min.
• Insertion force ≤35N
• Extraction force ≥10N
• Total Size: 14x14x 6.5mm
• Pin No: 4 Pin

• Pin Type: Angle Or Straight

Features:

• USB 2.0 Type A 4 pin Male Jack, Easy connect design.
• Compact, lightweight, and durable. Very easy to use. DIY your own USB adapter.
• Excellent USB replacement for P.C.B board and mobile power USB socket.
• Fit for electronics power port repair or DIY projects power supply port.

Application:

• They can be used in mobile phones, CD players, cordless telephones, MP3, MP4 PDA notebooks, DVD and digital camera.

• Material: Plastic, Metal;
• Color: Silver Tone, White
• Product name: Female USB Connector
• Rating DC 30V 0.2A
• Insulation resistance ≥1000MΩ min. 500V DC
• Dielectric strength 250V AC for 1min
• Contact resistance ≤50mΩ
• Operating temp. range -30ºC ~ +70ºC
• Lifetime 5000 cycles min.
• Insertion force ≤35N
• Extraction force ≥10N
• Total Size: 14x14x 6.5mm
• Pin No: 4 Pin
• Pin Type: Angle Or Straight
