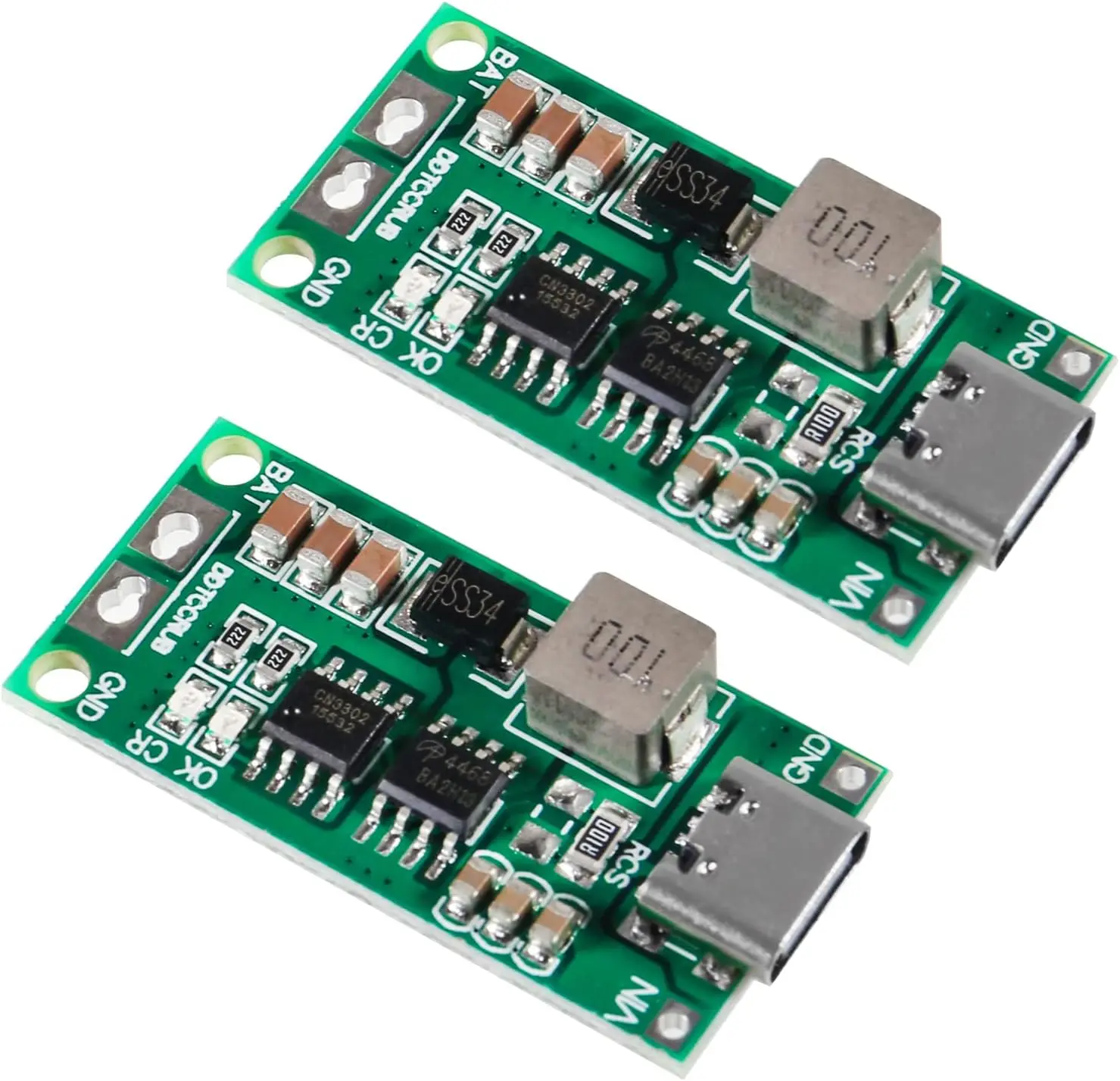

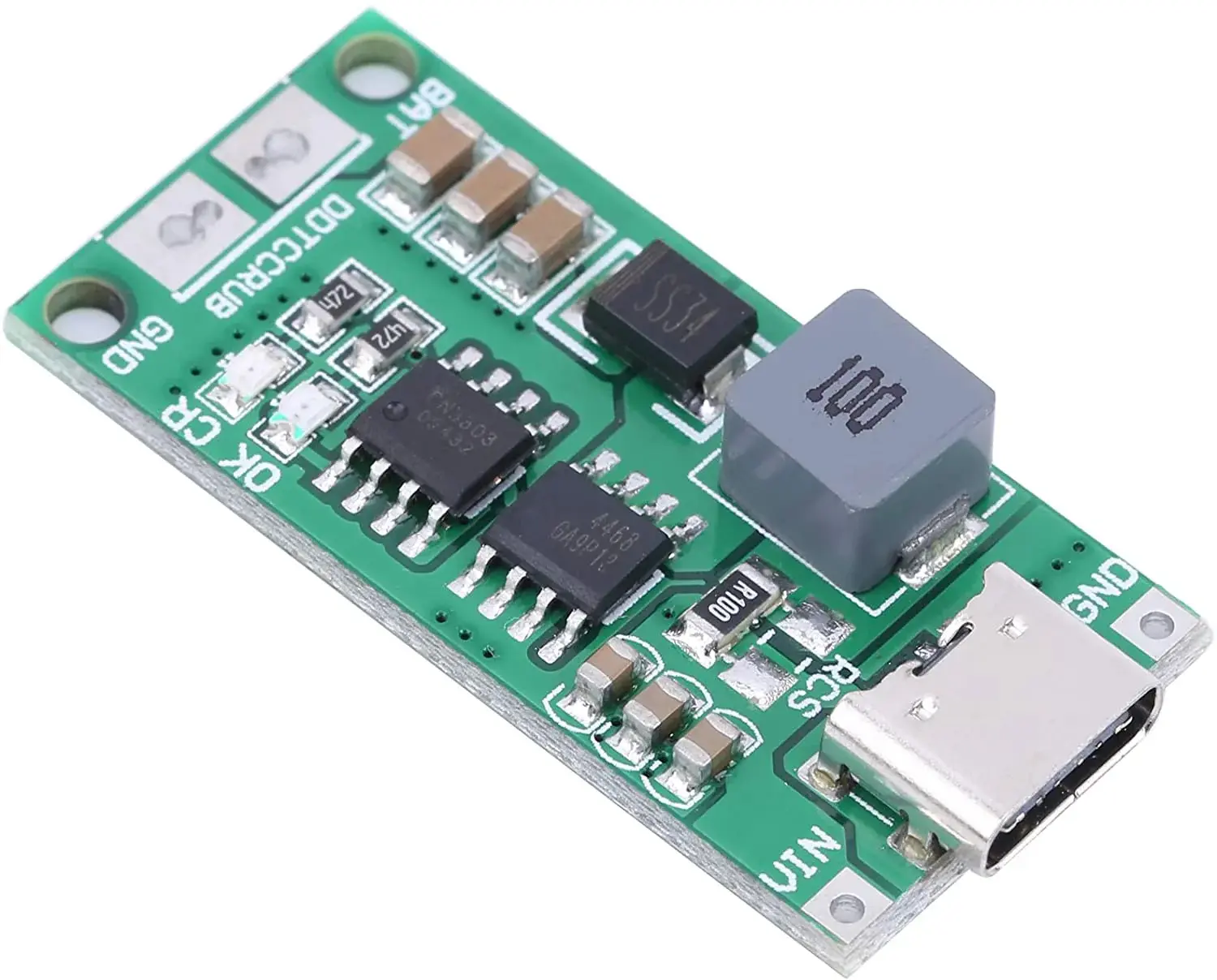

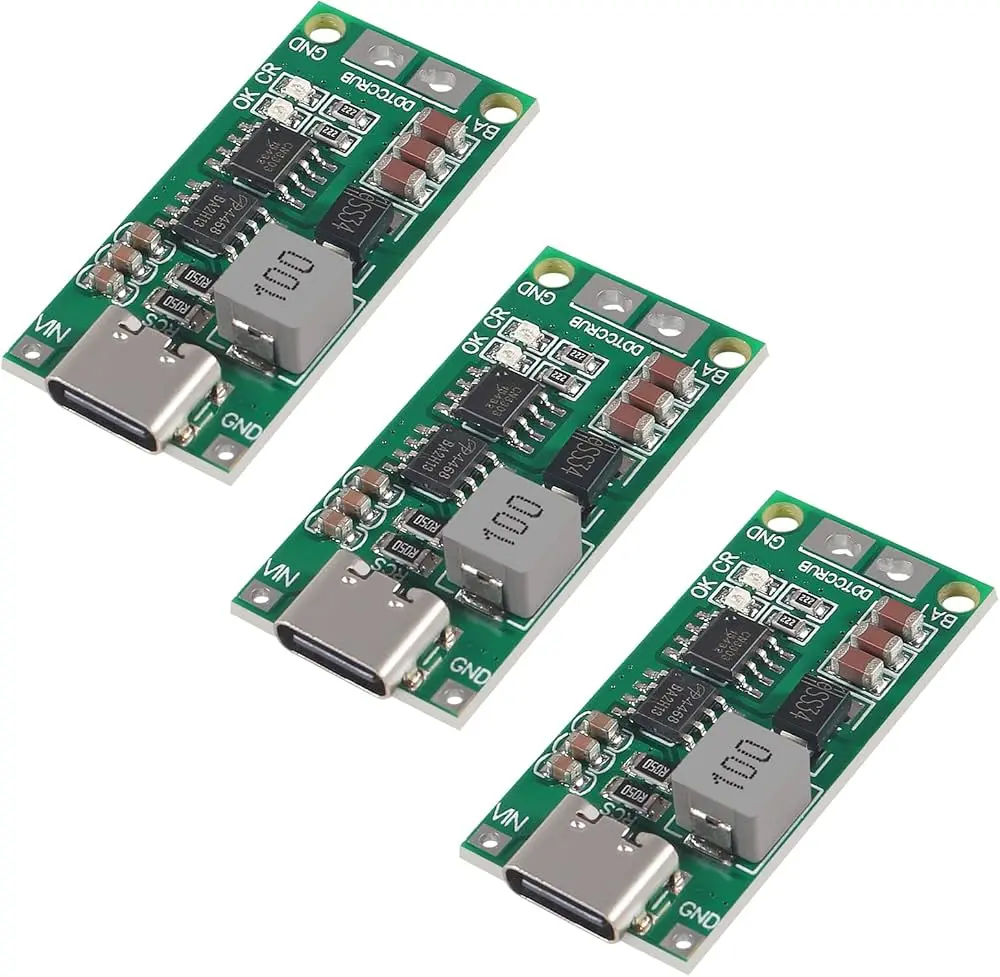

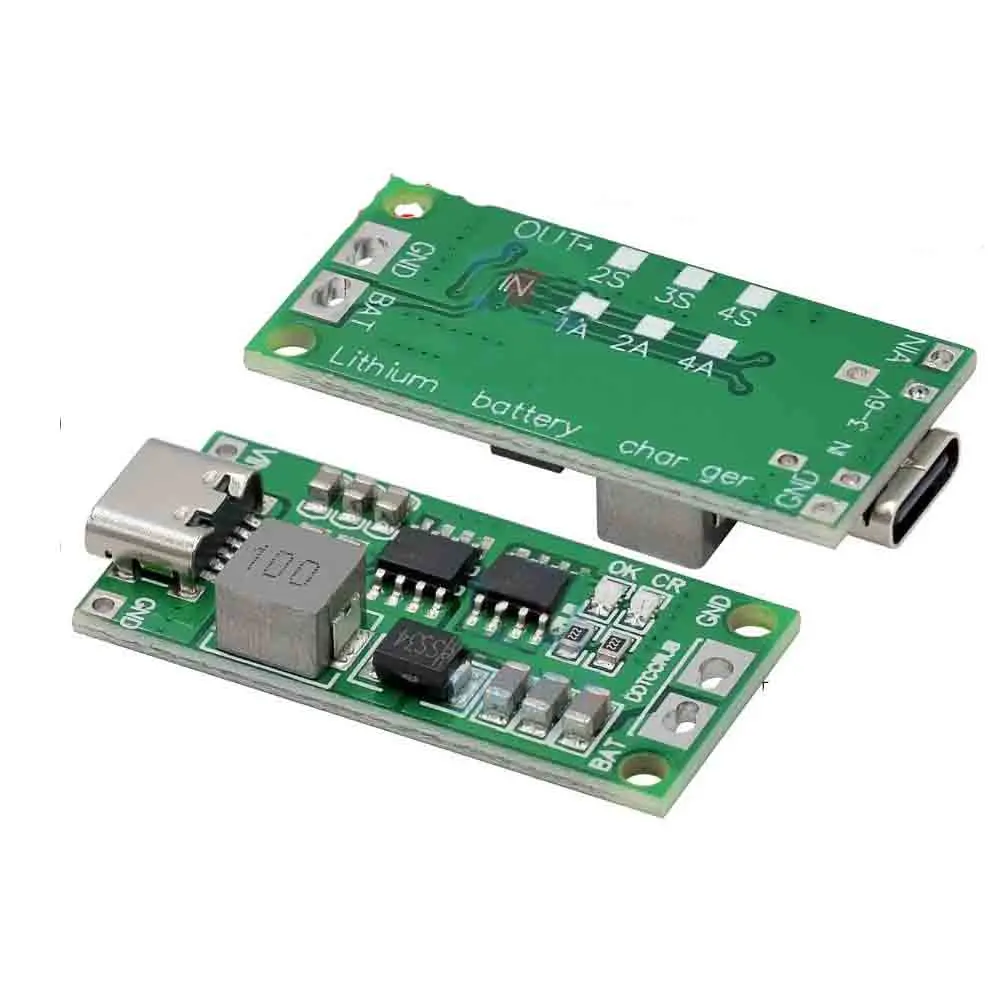

2A 3S Type C BMS 18650 Lithium Battery Charger Board Step-up Boost Module for Li-Po Polymer Power Bank(Green)

The Type-C 2A 3S BMS (Battery Management System) is a versatile and efficient charging solution designed for various lithium battery types, including 18650 batteries. It features an input voltage range of DC 3-6V, with a recommended range of DC 3.7V to 5V, and an input current of 2A. The BMS provides a charging voltage of 12.6V and a charging current of 0.74A. Compact and lightweight, it measures 39mm x 18mm x 6.3mm and weighs just 5g. With advanced safety features like automatic recharge protection and battery overvoltage protection, this BMS ensures reliable performance for applications such as PDAs, MP3/MP4 players, digital cameras, Bluetooth devices, game consoles, notebooks, mobile phones, solar charging, and more.

• Input Voltage: DC 3-6V (Recommended DC 3.7V to 5V)

• Input Current: 2A
• Charging Voltage: 12.6V
• Charging Current: 0.74A

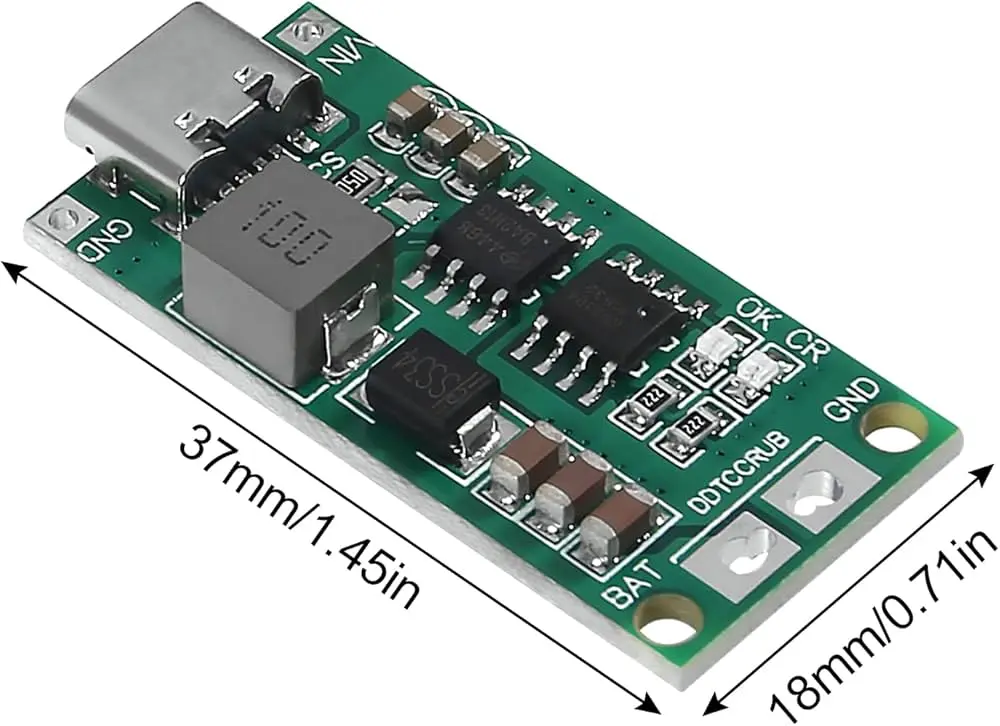

• Size: 39mm x 18mm x 6.3mm
• Weight: 5g
• Operating Temperature: -40°C to +85°C
• Features:

• Switching frequency up to 1MHz
• Quasi-CV mode to compensate for voltage loss on battery internal resistance and trace resistance
• Automatic recharge protection for low battery voltage
• Battery overvoltage protection
• LED indicators for charge status and fully charged status
