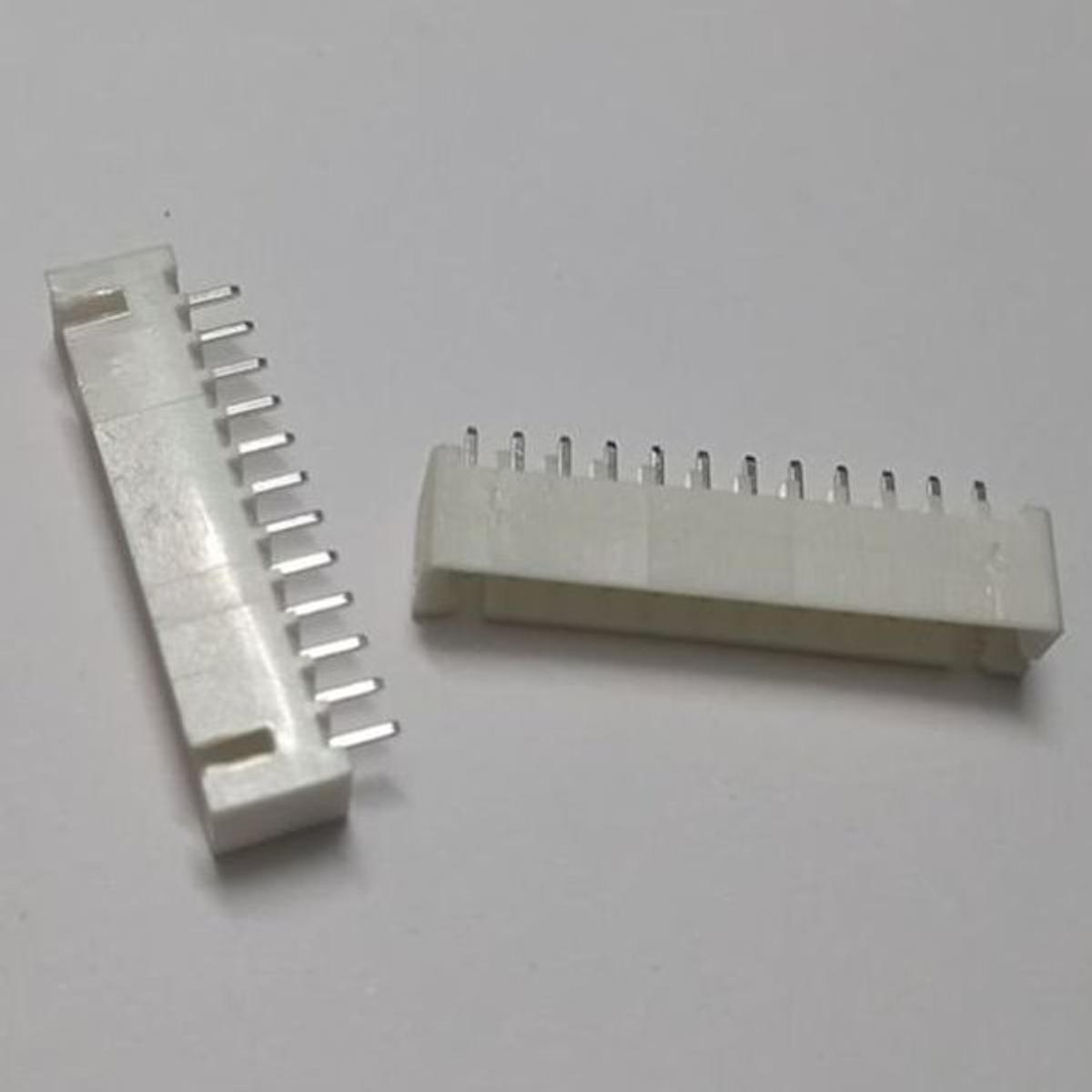

Picture of 2Pcs- 12Pin MALE Header For FEAMALE Housing JST Male Header 12 Pin Leads 2.54mm Pitch Male Socket Connector For Female Cables DIY
Picture of 2Pcs- 12Pin MALE Header For FEAMALE Housing JST Male Header 12 Pin Leads 2.54mm Pitch Male Socket Connector For Female Cables DIY

2Pcs- 12Pin MALE Header For FEAMALE Housing JST Male Header 12 Pin Leads 2.54mm Pitch Male Socket Connector For Female Cables DIY

Category: Building Materials
SKU: UDBD04813
Seller: Udvabony BD
Visa/Mastercard 10% Discount(T&C)
Nagad 10% instant Cashback(T&C)
Tk 61
Tk 72
Tk 72
15% OFF
0 review(s)
  • Application: Wire to Board
  • Series: PH Connector
  • Pitch: 2.0mm
  • Positions: 12
  • Gender: Male Header , Female Housing
  • PC Board Mounting Direction: Top Entry ( Straight )
  • Number of Rows: 1
  • Applicable wire: AWG#26
  • End of wire Material: Solder bare wire
  • Voltage rating: 100V DC/AC
  • Current rating: 2.0A AC, DC
  • Withstand voltage: 800 VAC/minute (effective value)
  • Applicable PC board thickness: 0.8 to 1.6mm

Call For Order : 09613-800800

Description: PH2.0-12P 2.0mm 12Pin Male Connector

LED light controlling system, illuminator, speakers, monitors, household appliances, copiers, fax machines, medical equipment, electrothermal equipment, computers, electronic toys, batteries, circuit boards and other products.

Specifications:

  • Application: Wire to Board
  • Series: PH Connector
  • Pitch: 2.0mm
  • Positions: 12
  • Gender: Male Header , Female Housing
  • PC Board Mounting Direction: Top Entry ( Straight )
  • Number of Rows: 1
  • Applicable wire: AWG#26
  • End of wire Material: Solder bare wire
  • Voltage rating: 100V DC/AC
  • Current rating: 2.0A AC, DC
  • Withstand voltage: 800 VAC/minute (effective value)
  • Working Temperature: -25°C to +85°C
  • Insulation resistance: ≥ 1000M Ω
  • Contact resistance: ≤ 0.02 Ω
  • Applicable PC board thickness: 0.8 to 1.6mm






  • Application: Wire to Board
  • Series: PH Connector
  • Pitch: 2.0mm
  • Positions: 12
  • Gender: Male Header , Female Housing
  • PC Board Mounting Direction: Top Entry ( Straight )
  • Number of Rows: 1
  • Applicable wire: AWG#26
  • End of wire Material: Solder bare wire
  • Voltage rating: 100V DC/AC
  • Current rating: 2.0A AC, DC
  • Withstand voltage: 800 VAC/minute (effective value)
  • Applicable PC board thickness: 0.8 to 1.6mm
